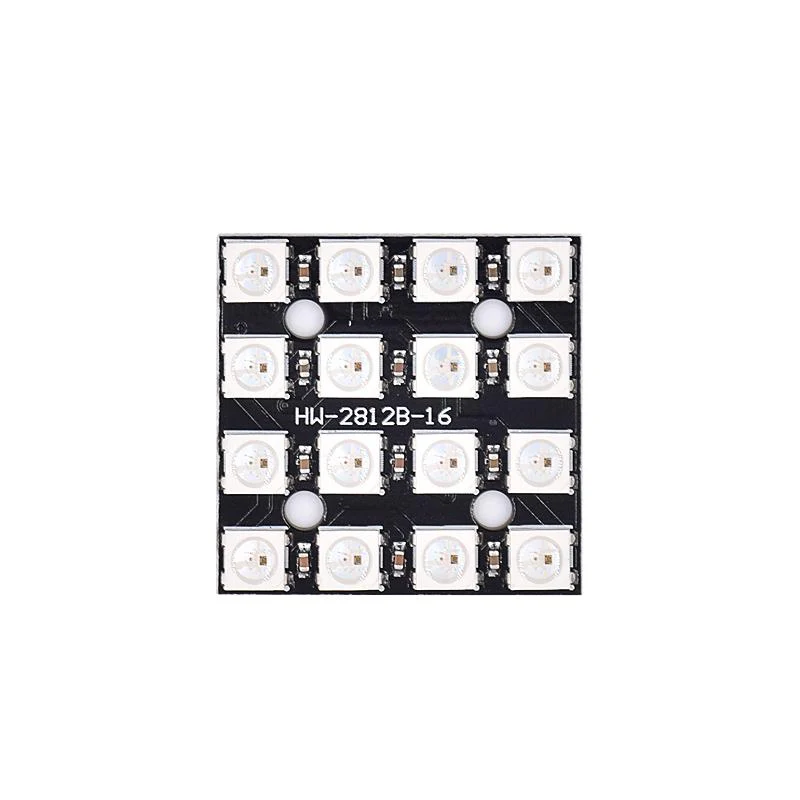

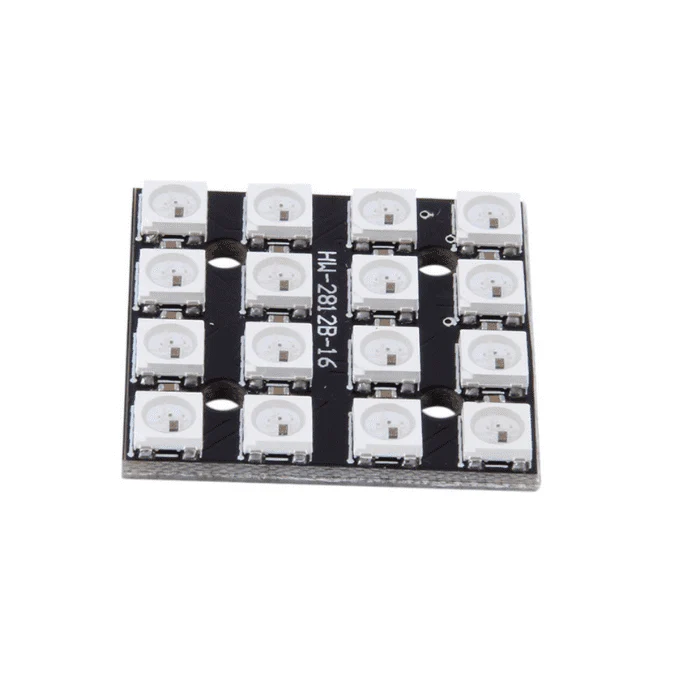

16 bit Matrix RGB Module

16 bit Matrix RGB Module is a versatile, high-performance display solution designed for embedded systems, microcontroller projects, IoT applications, and digital signage. Featuring rich 16-bit color depth, this RGB matrix module delivers vibrant visuals, smooth color transitions, and excellent brightness, making it ideal for both indoor display and development environments.

Engineered for reliability and ease of integration, the 16 bit RGB LED matrix module supports a wide range of controllers such as Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms. Whether you are building a scrolling message board, animated display, or real-time data visualization system, this module ensures clear and eye-catching output.

Key Features of 16 bit Matrix RGB Module

• 16-Bit Color Depth (65,536 Colors)
  Supports a wide color gamut for realistic images, smooth gradients, and visually appealing animations.

• High Brightness RGB LEDs
  Delivers sharp, vibrant colors with uniform brightness across the entire matrix.

• Compact & Modular Design
  Lightweight and slim profile allows easy mounting in compact enclosures and panel systems.

• Wide Controller Compatibility
  Works seamlessly with popular microcontrollers and development boards including Arduino, ESP32, Raspberry Pi, and ARM-based systems.

• Fast Refresh Rate
  Enables flicker-free visuals, ideal for animations, scrolling text, and real-time graphics.

• Low Power Consumption
  Optimized power design ensures efficient operation without compromising brightness.

• Daisy-Chain Support
  Multiple matrix modules can be connected together to create larger displays or video walls.

• Developer-Friendly Interface
  Supports standard communication protocols and widely available libraries for quick implementation.

Technical Specifications – 16 bit Matrix RGB Module

• Display Type: RGB LED Matrix

• Color Depth: 16-bit (65,536 colors)

• LED Configuration: RGB (Red, Green, Blue)

• Matrix Resolution: Common variants include 8×8, 16×16, or 32×32 (varies by model)

• Control Interface: SPI / Parallel / HUB75 (model dependent)

• Operating Voltage: 5 V DC

• Current Consumption: Varies with brightness and display content

• Pixel Pitch: Typically 3 mm – 5 mm (depending on module)

• Brightness: High-intensity LEDs for indoor visibility

• Viewing Angle: Wide angle for clear visibility from multiple directions

• Operating Temperature: –20°C to +60°C

• Mounting Type: Through-hole or panel mount

Note: Exact specifications may vary depending on the module size and manufacturer.

Applications of 16 bit Matrix RGB Module

The 16-bit RGB matrix module is widely used in both commercial and DIY applications due to its flexibility and visual performance:

Embedded & Microcontroller Projects

Ideal for Arduino, ESP32, STM32, and Raspberry Pi projects requiring colorful visual output, status indicators, or data displays.

Digital Signage & Scrolling Displays

Perfect for scrolling text boards, advertising displays, notice boards, and information panels in schools, offices, and retail spaces.

IoT & Smart Display Systems

Used in smart clocks, weather displays, dashboards, and real-time monitoring systems connected to cloud platforms.

Educational & Research Projects

Commonly used in engineering labs, STEM education, and training programs to demonstrate color mixing, display control, and embedded graphics.

Gaming & Animation Displays

Suitable for LED animations, pixel art, game scoreboards, and interactive visual effects.

Industrial & Commercial Indicators

Applied in status displays, warning panels, and process indicators in automation and control systems.

Why Choose the 16 bit Matrix RGB Module?

The 16-bit Matrix RGB Module stands out for its rich color reproduction, fast response time, and ease of integration. Its modular design allows scalable display configurations, while the wide controller support makes it suitable for beginners and professionals alike. With excellent brightness, smooth visuals, and reliable performance, this module is an ideal choice for creative display solutions and functional visual interfaces.

Enhance your project with the 16-Bit Matrix RGB Module and bring high-quality, colorful visuals to life with precision and reliability.

Package Includes:

1 x 16 bit Matrix RGB Module

FAQ

1. Where can we buy this 16 bit Matrix RGB Module?

This product is available online https://aiiottech.in/product/16-bit-matrix-rgb-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 16 bit Matrix RGB Module after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: RGB Led Matrix with WS2812 driver with Arduino Uno
