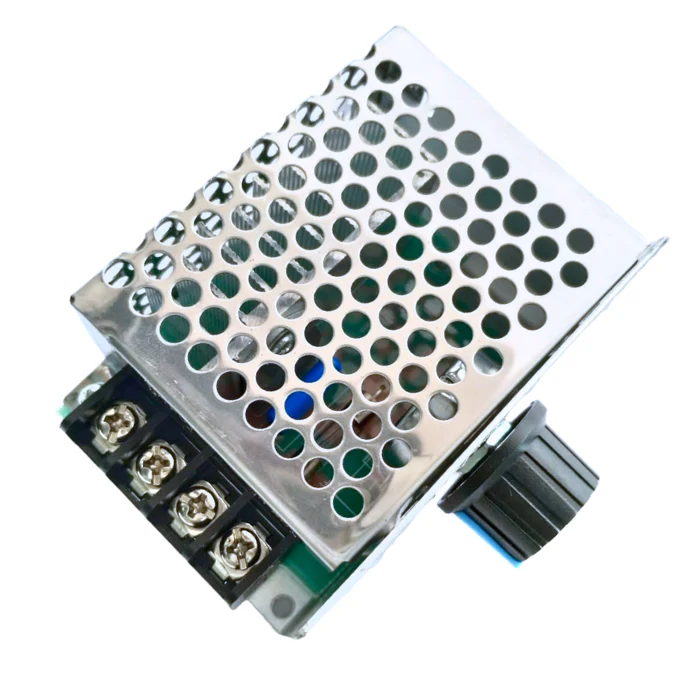

220V 4000W SCR Voltage Regulator

220V 4000W SCR Voltage Regulator is a powerful and reliable AC voltage controller designed to regulate power delivered to electrical loads. Built using a high-performance Silicon Controlled Rectifier (SCR), this voltage regulator enables smooth adjustment of AC voltage from 0V to 220V, allowing precise control over the speed, brightness, and heating intensity of connected devices.

This compact yet robust module is widely used in DIY electronics projects, industrial control systems, laboratory setups, and home appliances. With its high power capacity of up to 4000W, the regulator can easily handle heavy loads such as electric heaters, motors, and incandescent lamps.

The device features a rotary potentiometer knob that allows users to adjust the output voltage smoothly and accurately. By turning the knob, users can increase or decrease the voltage supplied to the load, making it ideal for applications requiring variable power control. The SCR-based design ensures efficient switching and minimal energy loss compared to traditional resistive regulators.

The 220V 4000W SCR Voltage Regulator is designed with a large aluminum heat sink, which helps dissipate heat effectively during high-power operation. This ensures stable performance and extends the lifespan of the module even when operating at higher loads. The circuit board is engineered with high-quality components to provide reliable operation and durability.

Another key advantage of this regulator is its simple installation and user-friendly design. The module includes clearly marked input and output terminals, allowing quick and safe connections to AC mains and load devices. Its compact size makes it easy to integrate into control panels, enclosures, and custom electronic systems.

This regulator is particularly useful for speed control of AC motors, temperature regulation in heating elements, and brightness control in lighting systems. It is commonly used in equipment such as electric furnaces, soldering irons, dimmable lamps, and fan controllers.

Whether you are an electronics hobbyist, engineer, technician, or industrial user, the 220V 4000W SCR Voltage Regulator offers a cost-effective and efficient solution for high-power AC voltage regulation.

Key Features

• High Power Capacity: Supports loads up to 4000W, making it suitable for high-power devices and industrial applications.

• Wide Voltage Adjustment: Allows smooth AC voltage control from 0V to 220V using a rotary potentiometer.

• SCR-Based Control: Uses a high-performance Silicon Controlled Rectifier for efficient and stable voltage regulation.

• Large Heat Sink: Built-in aluminum heat sink improves heat dissipation and ensures reliable operation.

• Smooth and Precise Control: Enables accurate adjustment of speed, temperature, and brightness.

• Compact Design: Small form factor makes it easy to integrate into electronic systems and control panels.

• Easy Installation: Clearly labeled input and output terminals simplify wiring and setup.

• Durable Construction: High-quality components ensure long-lasting performance and reliability.

Specifications

Applications

The 220V 4000W SCR Voltage Regulator is widely used in various electrical and electronic applications where adjustable AC voltage is required. Some common uses include:

1. Motor Speed Control

This regulator is ideal for controlling the speed of AC motors, such as those used in fans, blowers, and small industrial machines.

2. Light Dimming

It can be used as a dimmer for incandescent lamps and halogen lights, allowing users to adjust brightness levels efficiently.

3. Temperature Control

The regulator helps control heating intensity in devices such as:

• Electric heaters

• Soldering irons

• Electric furnaces

• Hot plates

4. DIY Electronics Projects

Electronics hobbyists and students commonly use this module in experimental circuits, laboratory demonstrations, and prototype development.

5. Industrial Equipment

It can be integrated into industrial control systems for regulating power delivered to heating elements and resistive loads.

6. Home Appliances

The module is suitable for applications like fan speed controllers, lamp dimmers, and heater power regulators in home automation systems.

Why Choose the 220V 4000W SCR Voltage Regulator?

If you need a high-power AC voltage control solution, the 220V 4000W SCR Voltage Regulator is an excellent choice. It combines high efficiency, reliable performance, easy installation, and precise control, making it suitable for both professional and DIY applications.

With its powerful SCR technology, large heat sink, and smooth voltage adjustment, this module ensures safe and effective power regulation for a wide range of electrical devices.

Package Includes:

1 x 220V 4000W SCR Voltage Regulator

FAQ

1. Where can we buy this 220V 4000W SCR Voltage Regulator?

This product is available online at https://aiiottech.in/product/220v-4000w-scr-voltage-regulator/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 220V 4000W SCR Voltage Regulator after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: 4000W 220V Universal Motor Speed Controller
