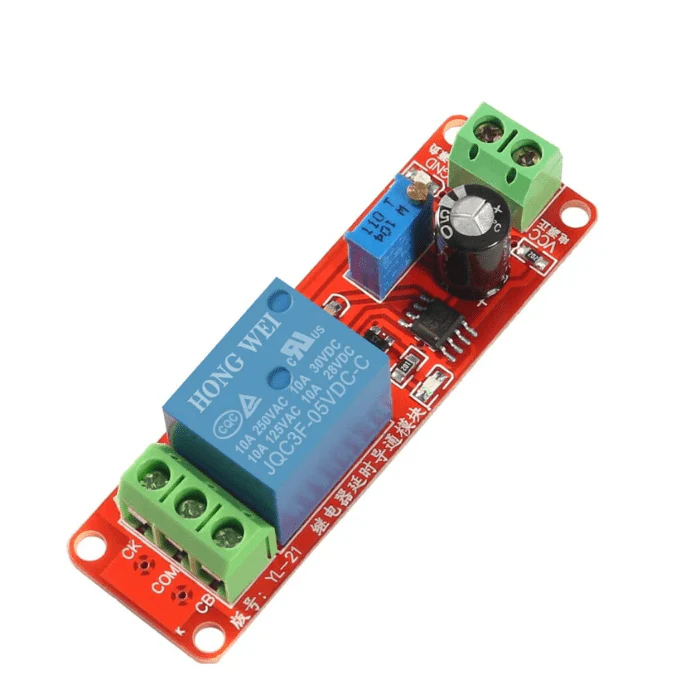

5V NE555 Digital Delay Timer Switch (0 to 10 seconds)

5V NE555 Digital Delay Timer Switch is a compact and reliable timing control module designed for applications that require precise delay switching, automatic control, and stable timing performance. Built around the widely trusted NE555 timer IC, this module offers adjustable delay time, high accuracy, and simple integration into electronic circuits.

Ideal for DIY electronics, automation systems, relay control, power sequencing, robotics, and educational projects, the 5V NE555 digital delay timer switch enables users to control ON/OFF timing with ease. Its low operating voltage, stable output, and user-friendly design make it suitable for both beginners and professionals working on time-based control applications.

With adjustable delay settings and robust circuit design, this timer module ensures consistent performance, even in continuous operation environments.

Key Features of 5V NE555 Digital Delay Timer Switch

• NE555 Timer IC Based Design
  Utilizes the industry-standard NE555 IC known for stability, reliability, and accurate timing control.

• 5V Low Voltage Operation
  Operates safely at 5V DC, making it compatible with microcontrollers like Arduino, Raspberry Pi, ESP8266, and ESP32.

• Adjustable Delay Time
  Delay duration can be easily set using the onboard potentiometer, allowing flexible timing control.

• Digital Triggering & Switching
  Provides clean digital output suitable for driving relays, transistors, LEDs, buzzers, and logic circuits.

• Compact & Lightweight Module
  Small PCB size ensures easy installation in space-constrained electronic projects.

• Stable & Reliable Output
  Designed for low noise and consistent timing performance over long operating periods.

• Easy Integration
  Clearly marked input/output pins simplify wiring and reduce development time.

Technical Specifications – 5V NE555 Digital Delay Timer Switch

• Product Type: Digital Delay Timer Switch Module

• Timer IC: NE555

• Operating Voltage: 5V DC

• Operating Current: ≤ 20 mA (excluding load)

• Trigger Type: Digital trigger input

• Delay Time Range: Adjustable (typically milliseconds to several seconds, depending on configuration)

• Output Type: Digital output (TTL compatible)

• Control Method: Onboard potentiometer

• PCB Material: FR-4

• Operating Temperature: –10°C to +60°C

• Mounting Type: PCB mount / screw or pin terminals (model dependent)

Note: Actual delay range may vary depending on component values and board version.

Applications of 5V NE555 Digital Delay Timer Switch

The 5V NE555 digital delay timer switch is widely used in electronic systems where time-based switching and control are essential. Typical applications include:

• Relay Control & Switching Circuits
  Used to delay relay activation or deactivation in power control and protection systems.

• Automation & Control Systems
  Ideal for time-based automation in industrial and home automation projects.

• Microcontroller Interfacing
  Works seamlessly with Arduino, Raspberry Pi, ESP modules, and other microcontrollers for timing tasks.

• LED & Light Control
  Enables delayed lighting, blinking patterns, and timed illumination systems.

• Motor & Load Control
  Used to delay motor startup, shutdown, or sequential operation of loads.

• Robotics & Embedded Systems
  Provides precise timing functions in robotic movement and sensor-based control systems.

• Educational & Training Kits
  Commonly used in electronics labs and training modules to demonstrate timer circuits and delay logic.

• DIY Electronics Projects
  Suitable for hobbyists building custom timing circuits, alarms, and signal generators.

Why Choose the 5V NE555 Digital Delay Timer Switch?

The 5V NE555 Digital Delay Timer Switch stands out for its simplicity, accuracy, and versatility. Its proven NE555 timer IC ensures dependable performance, while the adjustable delay feature allows users to fine-tune timing according to project requirements. The low-voltage operation and digital compatibility make it ideal for modern embedded systems and automation solutions.

Whether you are designing a time-delay relay, automation controller, or educational electronics project, this module offers a cost-effective and efficient timing solution.

Enhance your electronic designs with the 5V NE555 Digital Delay Timer Switch and achieve reliable, precise, and adjustable time control with ease.

Package Includes:

1 x 5V NE555 Digital Delay Timer Switch (0 to 10 seconds)
