6 Pin Toggle Switch (3A 250V)

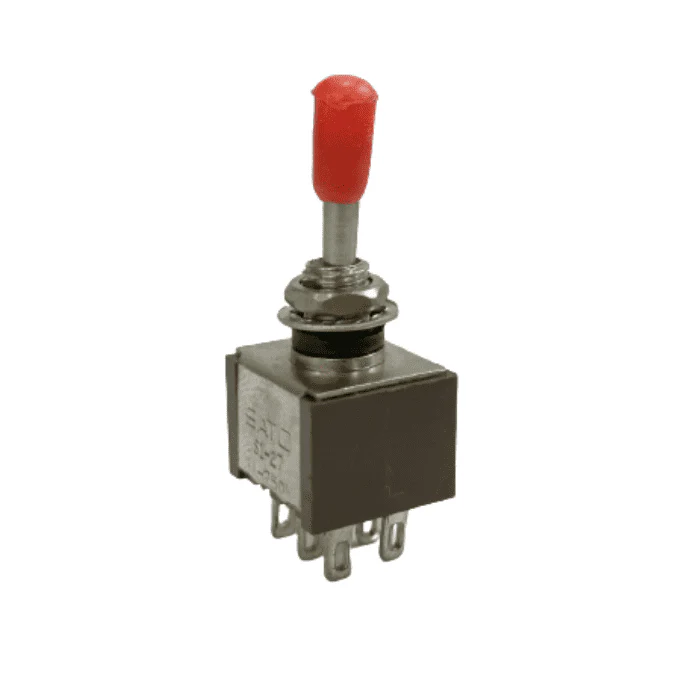

6 Pin Toggle Switch (3A 250V) is a durable and versatile DPDT (Double Pole Double Throw) toggle switch designed for precise and dependable control of electrical circuits. Engineered for both AC and low-voltage DC applications, this toggle switch is widely used in electronics projects, control panels, appliances, power supplies, automotive systems, and industrial equipment.

Built with high-quality internal contacts and a sturdy metal toggle lever, this switch ensures smooth operation, long mechanical life, and reliable electrical performance. The standard 6-pin configuration allows simultaneous switching of two separate circuits, making it ideal for polarity reversal, motor direction control, and signal switching. With a current rating of 3A at 250V AC, this toggle switch provides safe and stable operation for a wide range of applications.

Its compact size, panel-mount design, and clearly defined ON-OFF or ON-ON positions make it easy to integrate into professional products as well as DIY and educational projects.

Key Features of 6 Pin Toggle Switch (3A 250V)

• DPDT (Double Pole Double Throw) Configuration
  Enables control of two independent circuits or polarity reversal in a single switch.

• Rated for 3A at 250V AC
  Suitable for medium-power AC applications and low-voltage DC circuits.

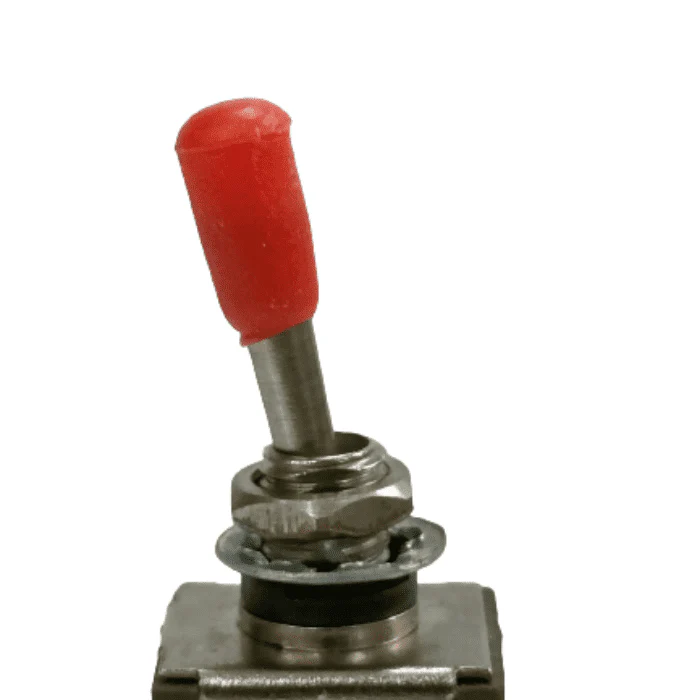

• Durable Metal Toggle Lever
  Provides firm tactile feedback and long operational life.

• High-Quality Electrical Contacts
  Ensures low contact resistance, minimal power loss, and stable performance.

• Panel Mount Design
  Easy to install in control panels, enclosures, and equipment housings.

• Compact & Space-Efficient
  Ideal for applications where space is limited.

• Wide Application Compatibility
  Works with electronic circuits, motors, power tools, and control systems.

Technical Specifications – 6 Pin Toggle Switch

• Product Type: Toggle Switch

• Pin Configuration: 6 Pin

• Switch Type: DPDT (Double Pole Double Throw)

• Rated Voltage: 250V AC

• Rated Current: 3A

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Dielectric Strength: 1500V AC (1 minute)

• Mounting Type: Panel Mount

• Terminal Type: Solder Lug / PCB / Screw (varies by model)

• Actuator Type: Metal Toggle Lever

• Switch Positions: ON-ON or ON-OFF-ON (model dependent)

• Operating Temperature: –10°C to +85°C

• Mechanical Life: ≥ 50,000 cycles

Note: Exact specifications may vary slightly depending on the manufacturer and variant.

Applications of 6 Pin Toggle Switch (3A 250V)

The 6 pin DPDT toggle switch is widely used in electrical, electronic, and industrial environments due to its flexibility and reliability. Common applications include:

• Electronic Projects & DIY Circuits
  Ideal for hobbyists, makers, and students for controlling power, signals, and polarity.

• Control Panels & Switch Boards
  Used in industrial control panels, test benches, and automation systems.

• Motor Direction Control
  Frequently employed for reversing DC motor rotation in robotics and automation projects.

• Power Supplies & Electrical Equipment
  Suitable for switching AC inputs, outputs, or auxiliary circuits.

• Automotive & Marine Applications
  Used for auxiliary lights, accessories, and control functions (within rated limits).

• Audio & Communication Equipment
  Applied in amplifiers, signal routing, and mode selection circuits.

• Home Appliances & Tools
  Used in small appliances, instruments, and power tools for manual control.

Why Choose the 6 Pin Toggle Switch (3A 250V)?

The 6 Pin Toggle Switch (3A 250V) offers an excellent combination of performance, durability, and versatility. Its DPDT configuration allows complex switching operations while maintaining a simple and user-friendly design. The robust construction ensures long-term reliability, even with frequent switching.

Whether you are an electronics manufacturer, system integrator, student, or DIY enthusiast, this toggle switch provides a dependable solution for circuit control. With easy installation, strong electrical ratings, and wide compatibility, it is an essential component for modern electrical and electronic applications.

Upgrade your project or product with the 6 Pin Toggle Switch (3A 250V) and experience precise, reliable, and long-lasting switching performance.

Package Includes:

1 x 6 Pin Toggle Switch (3A 250V)
