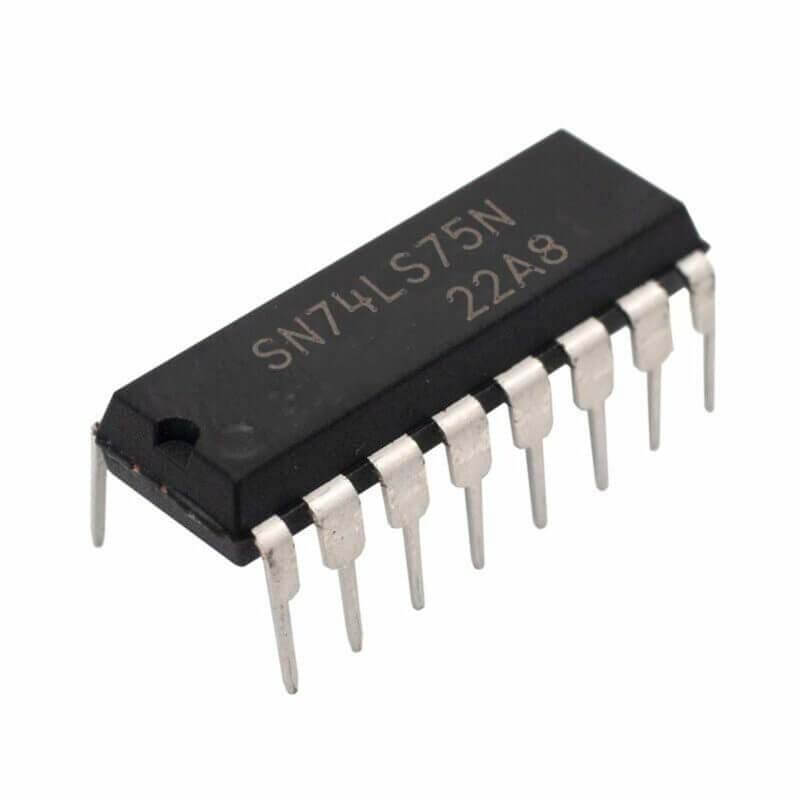

74LS75 4 Bit D-Latch IC

74LS75 4 Bit D-Latch IC is a reliable and widely used TTL (Transistor-Transistor Logic) quad D-type latch designed for temporary data storage and signal buffering in digital circuits. Featuring four independent transparent latches, the 74LS75 is ideal for applications that require controlled data flow, stable signal retention, and fast switching performance. Built using Low-Power Schottky (LS) technology, this IC delivers high speed with reduced power consumption, making it suitable for educational, industrial, and embedded system applications.

This IC is commonly used in microprocessor-based systems, registers, data buses, and memory interfacing circuits where efficient data latching is required. With separate latch enable inputs and complementary outputs, the 74LS75 offers excellent design flexibility for complex digital logic implementations.

The 74LS75 4 Bit D-Latch IC contains four independent D-type transparent latches controlled by two enable inputs. When the enable input is HIGH, each latch becomes transparent and the output follows the corresponding data input. When the enable input goes LOW, the latch stores and holds the last input value, even if the input changes. Each latch provides both true (Q) and complement (Q̅) outputs. Using low-power Schottky TTL technology, the 74LS75 offers fast switching and stable data storage for digital logic and microprocessor interfacing applications.

Key Features of 74LS75 4 Bit D-Latch IC

• Quad D-Type Latch: Contains four independent D-type latches for storing 4 bits of data

• Transparent Latch Operation: Data follows the input when enable is HIGH and is latched when enable goes LOW

• Low-Power Schottky TTL Technology: Ensures faster switching speed with lower power dissipation

• Complementary Outputs: Provides both Q and Q̅ outputs for flexible circuit design

• Dual Enable Control: Two latch enable inputs allow grouped or independent latch control

• High Noise Immunity: Stable operation in noisy digital environments

• TTL Compatible Inputs: Easily interfaces with standard TTL logic levels

• Fast Propagation Delay: Ideal for high-speed digital systems

• Standard 16-Pin DIP Package: Easy to handle, mount, and prototype on breadboards

• Wide Operating Temperature Range: Suitable for both academic and industrial use

Technical Specifications

Applications of 74LS75 4 Bit D-Latch IC

The 74LS75 IC is widely used in a variety of digital electronics applications due to its simplicity, reliability, and fast response time. Common applications include:

• Temporary Data Storage in digital systems

• Data Latching in Microprocessor Interfaces

• Register and Buffer Circuits

• Bus-Oriented Systems for data synchronization

• Memory Address Latching

• Timing and Control Circuits

• Signal Gating and Data Holding Applications

• Digital Counters and State Machines

• Educational and Training Projects for learning TTL logic

• Embedded Systems and Industrial Control Units

Why Choose the 74LS75 4 Bit D-Latch IC?

The 74LS75 4 Bit D-Latch IC is a trusted solution for designers looking for a cost-effective and efficient data latching IC. Its transparent latch operation allows real-time data flow control, while the low-power Schottky design ensures dependable high-speed performance. The availability of complementary outputs simplifies logic design and reduces the need for additional components.

Whether you are building a digital logic project, designing microprocessor-based hardware, or teaching fundamentals of digital electronics, the 74LS75 provides a stable and easy-to-use platform.

Package Includes:

1 x 74LS75 4 Bit D-Latch IC

FAQ

1. Where can we buy this 74LS75 4 Bit D-Latch IC?

This product is available online  https://aiiottech.in/product/74ls75-4-bit-d-latch-ic/  and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 74LS75 4 Bit D-Latch IC after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: 74LS75 Quad Bistable Latches
