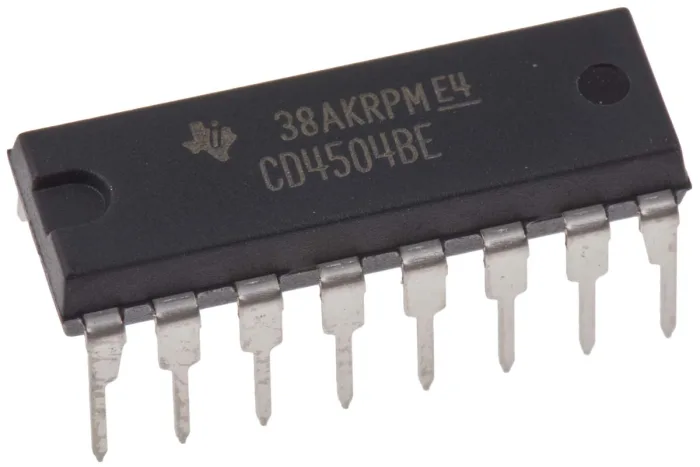

CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)

CD4504 Hex Voltage Level Shifter IC is a versatile and high-performance CMOS integrated circuit designed for safe and efficient logic level translation between different voltage domains. Widely used in embedded systems, microcontroller interfaces, digital communication circuits, and mixed-signal designs, the CD4504 enables seamless interoperability between low-voltage and high-voltage logic families.

Manufactured using advanced CMOS technology, the CD4504 supports bidirectional voltage shifting across a broad operating voltage range, making it an ideal choice for modern electronics where multiple voltage levels coexist. Its six independent level-shifting channels allow designers to convert logic signals without compromising signal integrity, power efficiency, or reliability.

Key Features of CD4504 Hex Voltage Level Shifter IC

• Six Independent Level Shifters
  The CD4504 integrates six non-inverting voltage level translators in a single package, enabling compact and efficient circuit designs.

• Wide Operating Voltage Range
  Supports dual power supplies, allowing logic level translation between low-voltage (3V/5V) and higher-voltage (up to 15V) systems.

• CMOS Low-Power Operation
  Designed with CMOS technology for low static power consumption, making it suitable for battery-powered and energy-efficient applications.

• High Noise Immunity
  Excellent noise margins ensure stable signal transmission even in electrically noisy environments.

• TTL and CMOS Compatibility
  Compatible with TTL, CMOS, and microcontroller logic levels, providing design flexibility across multiple platforms.

• Latch Enable Control
  Includes a latch enable pin for controlled signal transfer, improving data integrity during voltage translation.

• Compact IC Packaging
  Available in standard DIP and SOIC packages, making it easy to integrate into both prototyping and production designs.

Specifications – CD4504 Hex Voltage Level Shifter IC

• IC Type: Hex Voltage Level Shifter

• Technology: CMOS

• Number of Channels: 6

• Logic Function: Non-Inverting

• Supply Voltage (VDD): 3V to 15V

• Input Voltage Range: 0V to VDD

• Output Voltage Range: 0V to VDD

• Operating Temperature: –40°C to +85°C

• Propagation Delay: Low (CMOS standard)

• Input Compatibility: TTL and CMOS

• Output Drive Capability: Standard CMOS output

• Package Types: DIP-16, SOIC-16

(Electrical characteristics may vary slightly depending on the manufacturer.)

Applications of CD4504 Hex Voltage Level Shifter IC

The CD4504 IC is widely used in applications that require voltage compatibility between different logic systems. Its flexibility and reliability make it a preferred choice across industrial, educational, and consumer electronics domains.

Embedded Systems & Microcontroller Interfacing

Ideal for interfacing 3.3V microcontrollers with 5V or 12V peripherals, such as displays, sensors, and communication modules.

Mixed-Voltage Digital Circuits

Used in mixed-signal and mixed-voltage designs where multiple ICs operate at different logic levels.

Communication Interfaces

Commonly employed in UART, SPI, I²C, and parallel data buses where level shifting is required to ensure safe data transfer.

Industrial Control Systems

Ensures reliable voltage translation in PLCs, automation controllers, and industrial monitoring equipment.

Consumer Electronics

Found in home automation devices, audio systems, and control panels that integrate components with varying voltage requirements.

Educational & Prototyping Projects

Frequently used in electronics labs, engineering education, and hobbyist projects for teaching logic level conversion concepts.

Why Choose the CD4504 Level Shifter IC?

The CD4504 Hex Voltage Level Shifter IC stands out due to its wide voltage compatibility, low power consumption, and proven CMOS reliability. By integrating six level translators into a single IC, it reduces component count, board space, and overall system complexity. Its ability to interface seamlessly between different logic families makes it a cost-effective and dependable solution for both simple and complex electronic designs.

Whether you are designing an embedded system, upgrading an industrial controller, or developing a prototype, the CD4504 offers stable performance, flexibility, and long-term reliability—making it an essential component in modern digital electronics.

Package Includes:

1 x CD4504 Hex Voltage Level Shifter IC (DIP-16 Package)

FAQ

1. Where can we buy this CD4504 Hex Voltage Level Shifter IC?

This product is available online https://aiiottech.in/product/cd4504-hex-voltage-level-shifter-ic/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this CD4504 Hex Voltage Level Shifter IC after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Proper use of CD4504BE Level Shifter IC for SPI
