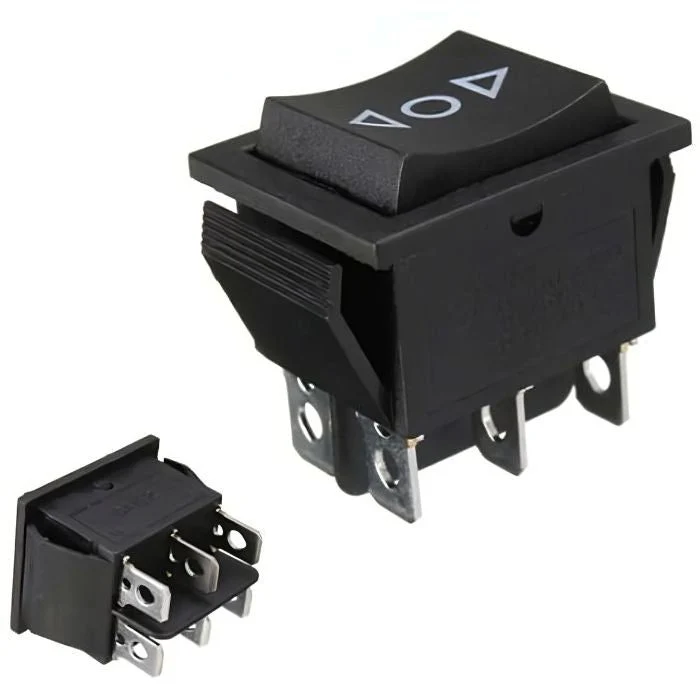

DPDT Momentry switch

DPDT Momentry switch is a high-quality electromechanical switch designed for precise, temporary circuit control in a wide range of electrical and electronic applications. Featuring a Double Pole Double Throw (DPDT) configuration, this switch allows simultaneous switching of two independent circuits with a single actuator, making it ideal for reversing, control logic, and signal routing applications.

This momentary switch offers dependable performance, electrical safety, and long operational life. The momentary (spring-return) action ensures the switch returns to its default position immediately after release, providing enhanced safety and control in critical applications. Whether used in industrial control panels, automation systems, DIY electronics, or educational projects, this DPDT momentary switch delivers consistent and reliable operation.

Key Features of DPDT Momentary Switch

• Double Pole Double Throw (DPDT) Configuration
  Enables switching of two separate circuits simultaneously, supporting complex control functions.

• Momentary (Non-Latching) Operation
  Automatically returns to its original position when released, ideal for temporary or safety-critical actions.

• High Electrical Rating
  Rated for 3A at 250V AC, suitable for both low-voltage signal control and moderate power applications.

• Durable Mechanical Construction
  Designed with high-quality contacts and a robust housing for long service life and reliable switching.

• Smooth Actuation & Quick Response
  Provides crisp tactile feedback and fast response for precise user control.

• Panel-Mount Design
  Easy to install in control panels, enclosures, and instrument boxes.

• Wide Compatibility
  Suitable for AC and DC circuits, control systems, and electronic projects.

Technical Specifications – DPDT Momentary Switch

• Switch Type: DPDT (Double Pole Double Throw)

• Operation: Momentary (Spring Return / Non-Latching)

• Current Rating: 3A

• Voltage Rating: 250V AC

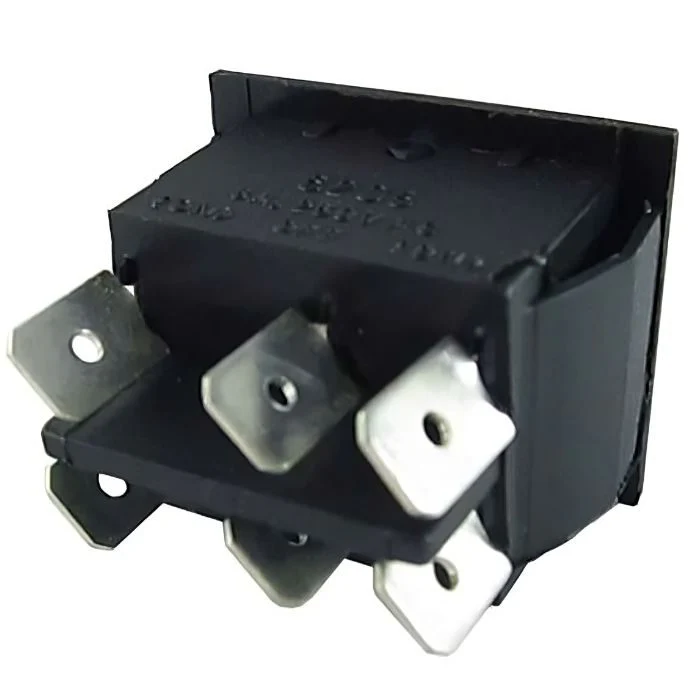

• Contact Configuration: 6 terminals (DPDT)

• Mounting Type: Panel mount

• Actuator Type: Toggle / Push (varies by model)

• Contact Material: Silver alloy or equivalent

• Insulation Resistance: ≥ 100 MΩ

• Dielectric Strength: ≥ 1000V AC

• Operating Temperature: –10°C to +60°C

• Mechanical Life: ≥ 50,000 operations

Note: Specifications may vary slightly depending on manufacturer or design variant.

Applications of DPDT Momentary Switch

Thanks to its versatile DPDT configuration and reliable momentary action, this switch is widely used in numerous applications across industries:

Industrial & Automation Systems

• Control panels and operator interfaces

• Motor direction control (forward/reverse)

• Relay and contactor control circuits

Electrical & Electronic Projects

• Signal routing and logic switching

• Power supply and test bench controls

• Prototyping and circuit testing

Robotics & Mechatronics

• Motion direction selection

• Emergency or manual override controls

• Temporary activation functions

Automotive & Transportation

• Auxiliary control systems

• Custom dashboard switches

• Testing and diagnostic setups

DIY, Educational & Laboratory Use

• Electronics training kits

• Engineering lab experiments

• Hobby electronics and maker projects

Why Choose This DPDT Momentary Switch?

The DPDT Momentary Switch is designed for users who need precise control, safety, and reliability. Its momentary operation reduces the risk of accidental continuous activation, making it suitable for safety-critical and controlled-action applications. The DPDT contact arrangement allows greater circuit flexibility, enabling advanced control logic with minimal wiring complexity.

With a strong electrical rating, durable construction, and easy panel mounting, this switch is a cost-effective solution for both professional and hobbyist applications. Whether you are designing industrial equipment or building a custom electronics project, this switch offers dependable performance and long-term reliability.

Ideal Choice for Safe & Efficient Switching

Upgrade your control system with the DPDT Momentary Switch and experience smooth operation, electrical safety, and versatile switching performance. Perfect for industrial, educational, and DIY applications, this switch is a reliable component for modern electrical and electronic designs.

Package Includes:

1 x DPDT Momentry switch

FAQ

1. Where can we buy this DPDT Momentry switch?

This product is available online https://aiiottech.in/product/dpdt-momentry-switch/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this DPDT Momentry switch after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Momentary Double Pole Double Throw Rocker Switch
