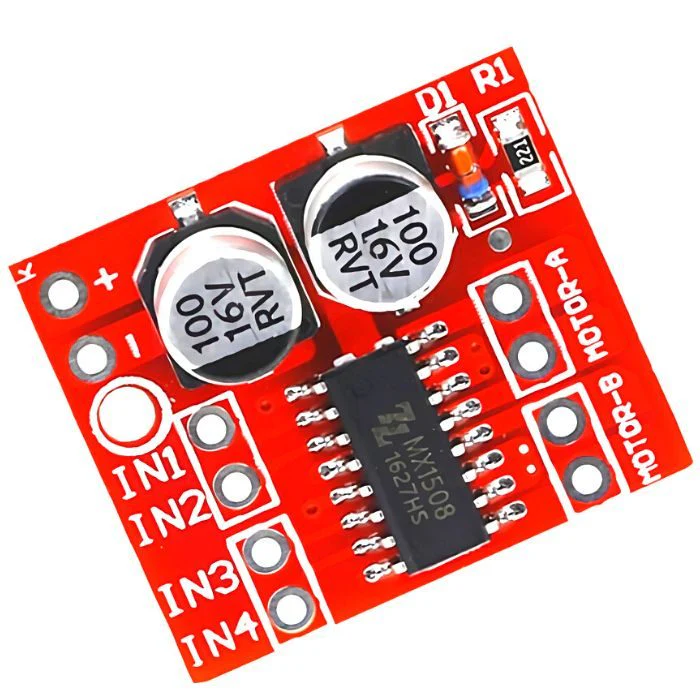

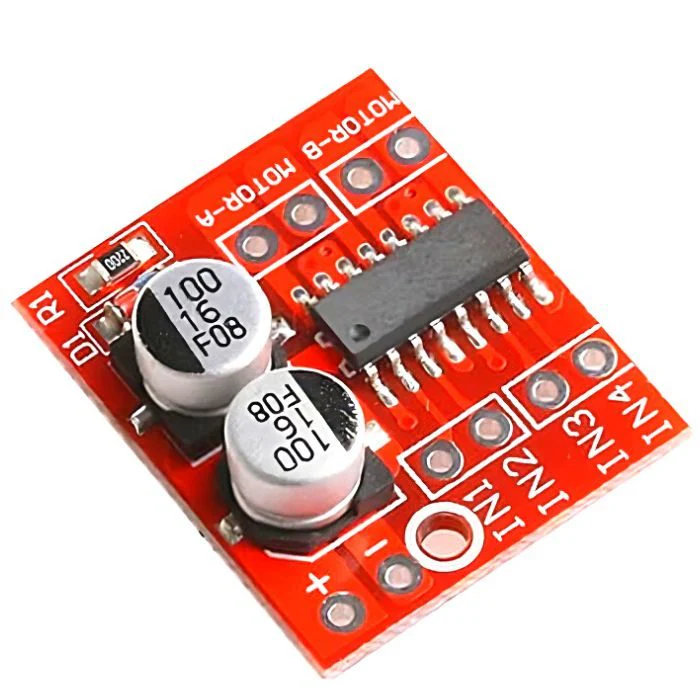

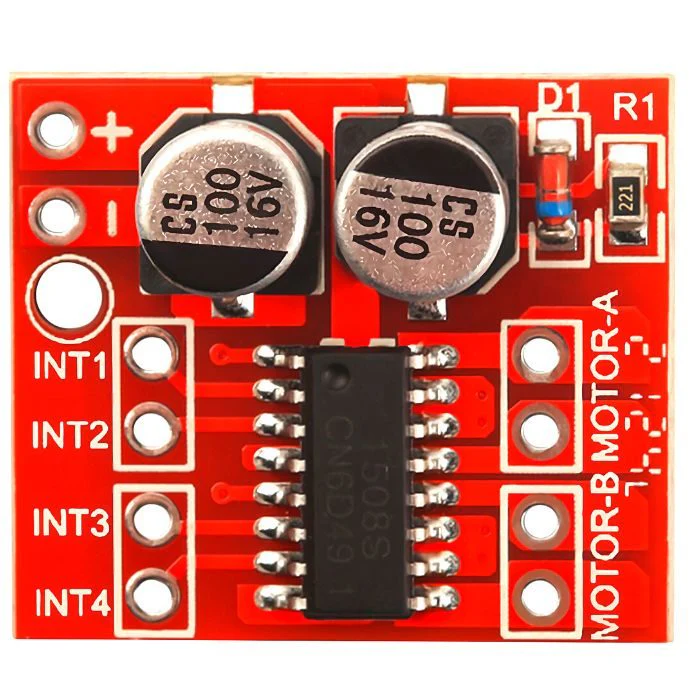

Dual H Bridge Stepper Controller (Reversing PWM Speed)

Dual H Bridge Stepper Controller is a versatile and reliable motor control solution designed for precise control of stepper motors and DC motors in a wide range of automation and embedded applications. Built around a dual H-bridge architecture, this controller enables bidirectional current flow, allowing accurate direction and speed control with excellent efficiency. It is an ideal choice for robotics, CNC systems, automation projects, and educational platforms.

Engineered for smooth operation and stable performance, the Dual H Bridge Stepper Controller supports bipolar stepper motor control, making it suitable for applications that demand precise positioning, repeatability, and torque control. Its compact design, easy interfacing, and compatibility with popular microcontrollers make it a preferred solution for both professional developers and hobbyists.

Key Features of Dual H Bridge Stepper Controller

• Dual H-Bridge Architecture
  Enables independent or combined control of two motor windings, allowing efficient bipolar stepper motor operation.

• Bidirectional Motor Control
  Supports forward and reverse rotation with precise direction control.

• High Current Driving Capability
  Designed to handle moderate to high motor currents, suitable for a wide range of stepper and DC motors.

• PWM Speed & Torque Control
  Supports pulse-width modulation (PWM) for smooth speed control and improved torque performance.

• Microcontroller Compatibility
  Easily interfaces with Arduino, Raspberry Pi, PIC, AVR, ARM, and other microcontrollers.

• Built-in Protection Features
  Includes thermal shutdown, over-current protection, and short-circuit protection for safe and reliable operation.

• Compact & Durable Design
  PCB layout optimized for heat dissipation and long-term stability in continuous operation.

Technical Specifications – Dual H Bridge Stepper Controller

• Controller Type: Dual H-Bridge Motor Driver

• Supported Motors: Bipolar stepper motors, DC motors

• Number of Channels: 2 (dual H-bridge)

• Operating Voltage: 5 V to 35 V DC (typical range)

• Logic Voltage: 3.3 V / 5 V compatible

• Maximum Output Current: Up to 2 A per channel (peak may vary by model)

• Control Method: PWM and digital direction control

• Interface Pins: Enable, IN1–IN4 / Phase control inputs

• Protection Features: Over-current, thermal shutdown, short-circuit protection

• Operating Temperature: –20°C to +70°C

• Mounting Type: Through-hole or module-based PCB mounting

Note: Electrical specifications may vary depending on the specific controller IC and board design.

Applications of Dual H Bridge Stepper Controller

The Dual H Bridge Stepper Controller is widely used in applications requiring accurate motor control, smooth operation, and reliable performance:

• Stepper Motor Control Systems
  Ideal for driving bipolar stepper motors in positioning and motion control applications.

• Robotics & Mechatronics
  Used in robotic arms, mobile robots, and actuator control systems for precise movement.

• CNC & 3D Printing Machines
  Supports axis control in CNC routers, engravers, and 3D printers.

• Industrial Automation
  Suitable for conveyor systems, valve control, and automated machinery.

• Educational & Training Kits
  Commonly used in engineering labs, STEM education, and learning platforms for motor control concepts.

• DIY & Embedded Projects
  Ideal for prototyping, home automation, and custom electronics projects.

Why Choose This Dual H Bridge Stepper Controller?

The Dual H Bridge Stepper Controller offers an optimal balance of performance, reliability, and ease of use. With its robust design, microcontroller compatibility, and comprehensive protection features, it is an excellent choice for developers, system integrators, and hobbyists alike. Whether you are building an industrial automation system or a DIY robotics project, this controller delivers consistent and precise motor control.

Enhance your motion control applications with the Dual H Bridge Stepper Controller and experience efficient, accurate, and dependable motor driving performance.

Package Includes:

1 x Dual H Bridge Stepper Controller

FAQ

1. Where can we buy this Dual H Bridge Stepper Controller?

This product is available online at https://aiiottech.in/product/dual-h-bridge-stepper-controller/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this Dual H Bridge Stepper Controller after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: H-Bridge Motor Controller – Better than L298N?
