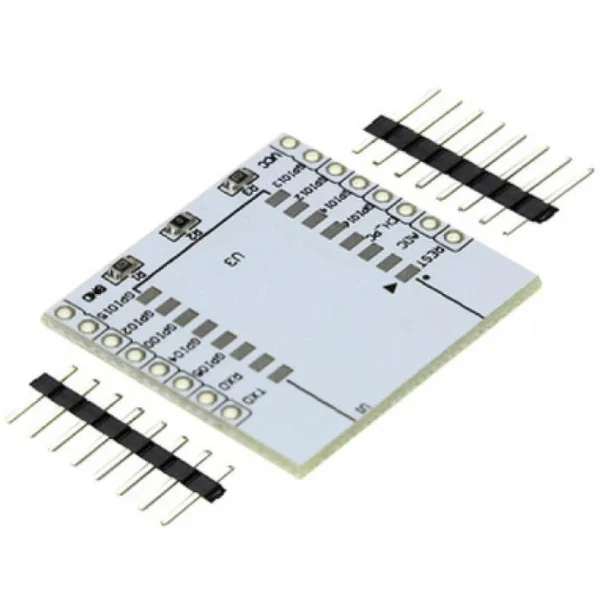

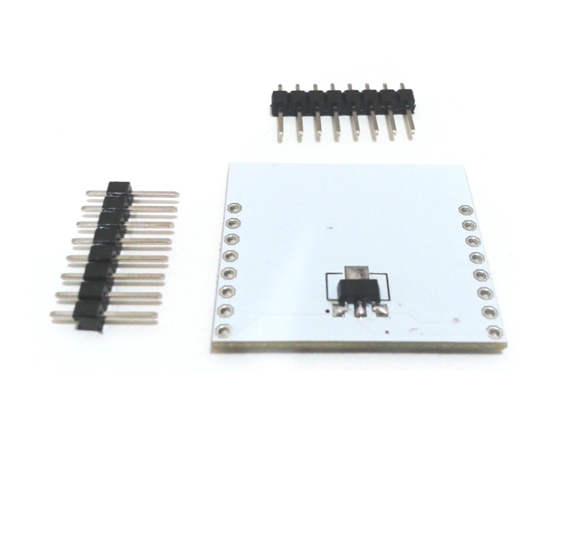

ESP 12E/12F Breakout Board

ESP 12E/12F Breakout Board is a compact and user-friendly development platform designed for the popular ESP8266 Wi-Fi module. This breakout board simplifies prototyping by giving makers, students, engineers, and IoT developers an easy way to access the GPIO pins of the ESP-12E/12F module without dealing with complicated surface-mount soldering. Whether you’re building smart home projects, wireless sensor networks, or custom automation systems, this breakout board provides the perfect balance of flexibility, reliability, and performance.

Built with stable power regulation, clear pin labels, and an ideal layout for breadboard compatibility, the ESP 12E/12F Breakout Board enables rapid development for Wi-Fi-based projects. It offers direct access to all major pins including GPIO0, GPIO2, GPIO15, TX, RX, ADC, and power lines, making it ideal for flashing firmware, programming with Arduino IDE, or integrating into advanced IoT systems. With robust on-board components and a compact design, this module offers a convenient platform that supports OTA updates, high-speed communication, and low-power operation.

Key Features

✔ Easy Breadboard Friendly Layout

The breakout board’s pin spacing allows for seamless placement on standard breadboards. This ensures quick prototyping, smooth wiring, and hassle-free connections for sensors and actuators.

✔ 100% Compatibility With ESP-12E / ESP-12F Modules

Specifically designed to support the ESP8266-based ESP-12E and ESP-12F modules, providing stable mounting, secure soldering pads, and full access to all available pins.

✔ Clear Pin Labeling

Each pin is clearly marked, helping beginners and professionals easily identify GPIO pins, power pins, and communication pins, reducing wiring errors during development.

✔ Integrated Power Regulation (Depending on Model)

Some variants include voltage regulators to supply stable 3.3V to the ESP8266, ensuring reliable Wi-Fi operation without the risk of module damage.

✔ Full GPIO Access

Gain access to all major pins including:

• GPIO0, GPIO2, GPIO4, GPIO5

• GPIO12, GPIO13, GPIO14, GPIO15, GPIO16

• RX, TX, EN, RST, ADC

✔ Ideal for Programming & Firmware Flashing

Supports OTA (Over-the-Air) updates, Arduino IDE, NodeMCU, MicroPython, ESPHome, Tasmota, and custom firmware development.

✔ Compact, Lightweight, and Durable

The small form factor makes it suitable for embedded IoT installations and long-term product deployments.

Specifications

• Module Compatibility: ESP-12E / ESP-12F (ESP8266 Wi-Fi)

• Operating Voltage:

  • Board Input: 5V or 3.3V (depending on model)

  • ESP8266 Core Voltage: 3.3V

• Wi-Fi Standard: IEEE 802.11 b/g/n

• Pins Available: All major GPIO pins, TX/RX, ADC, EN, RST

• Flash Memory: Depends on the ESP-12E/F module (usually 4MB)

• Antenna Type: On-board PCB antenna

• Dimensions: Compact breakout-friendly design

• Breadboard Compatibility: Yes

• Communication Interfaces: UART, SPI, I2C, PWM, ADC

• Operating Modes: Access Point, Station, AP+Station

Applications

🔹 IoT Development & Prototyping

Ideal for developing wireless IoT prototypes such as monitoring systems, automation modules, and Wi-Fi-enabled devices.

🔹 Home Automation Projects

Use in smart switches, Wi-Fi relays, smart lighting controllers, ESPHome devices, and Alexa/Google Home integrations.

🔹 Wireless Sensor Networks

Perfect for connecting environmental sensors such as temperature, humidity, gas, and motion detectors to cloud dashboards.

🔹 Robotics and Embedded Systems

Supports Wi-Fi communication for robots, drones, and automation systems requiring remote control or data logging.

🔹 Educational & Research Projects

Widely used in engineering labs, student projects, IoT workshops, and rapid prototyping sessions.

🔹 DIY Consumer Electronics

Can be integrated into DIY smart gadgets, wearable tech prototypes, or custom IoT appliances.

The ESP 12E/12F Breakout Board is a must-have tool for anyone working with the ESP8266 Wi-Fi module. With its easy connectivity, complete pin access, and reliable design, it accelerates IoT development and enables creators to build powerful wireless solutions with confidence. Whether you’re a beginner or an experienced developer, this breakout board makes your ESP8266 projects faster, smarter, and more efficient.
