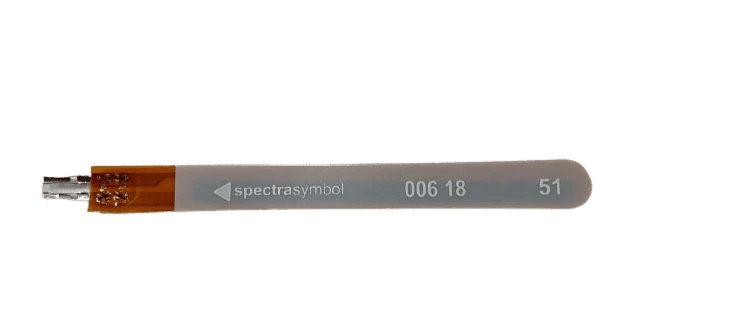

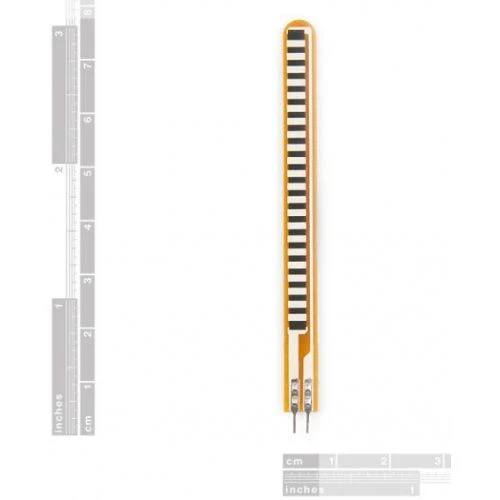

Flex Sensor 2.2 inch

Flex Sensor is a versatile and lightweight resistive sensor designed to detect bending, flexing, and motion with high accuracy. Widely used in robotics, wearable electronics, gaming interfaces, and medical devices, flex sensors convert physical deformation into measurable electrical signals. Whether you are a student, researcher, hobbyist, or professional engineer, this sensor provides a reliable and cost-effective solution for capturing real-world movement in digital systems.

Built using a flexible substrate coated with conductive ink, the flex sensor changes its resistance when bent. As the bending angle increases, the resistance rises proportionally, allowing microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 to easily interpret motion and position data. Its thin profile, low power consumption, and durability make it ideal for embedded systems and smart sensing applications.

🔧 Key Features

• Accurate Bend Detection: Provides smooth and repeatable resistance changes proportional to bending angle.

• Highly Flexible & Lightweight: Ultra-thin structure enables easy integration into wearables, gloves, and soft robotics.

• Low Power Operation: Ideal for battery-powered and portable electronic devices.

• Wide Compatibility: Works seamlessly with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.

• Durable Construction: Designed for thousands of bending cycles without performance degradation.

• Easy Interface: Simple voltage divider circuit enables fast prototyping and development.

• Compact Form Factor: Perfect for applications requiring minimal space and maximum flexibility.

📊 Technical Specifications

• Sensor Type: Resistive Flex Sensor

• Length Options: Typically 2.2″, 4.5″, or 7.5″ (model dependent)

• Thickness: ~0.43 mm

• Flat Resistance: ~10 kΩ (±30%)

• Resistance at 90° Bend: ~30–40 kΩ

• Operating Voltage: 0–5 V

• Power Consumption: < 1 mW

• Bend Radius: Minimum ~25 mm

• Operating Temperature: -35°C to +80°C

• Connector Type: Exposed terminals / solder pads

• Weight: Ultra-lightweight (approx. 1–2 grams)

⚙️ How It Works

The flex sensor functions as a variable resistor. When the sensor is straight, it exhibits low resistance. As it bends, conductive particles inside the sensor spread apart, increasing resistance proportionally to the bend angle. By placing the sensor in a voltage divider circuit and reading the output using an analog pin, users can easily convert mechanical motion into digital data for real-time monitoring and control applications.

🧠 Applications

The Flex Sensor is widely used across education, research, healthcare, gaming, and industrial automation due to its adaptability and ease of use:

• Robotics & Mechatronics: Detect joint angles in robotic arms and grippers.

• Wearable Technology: Measure finger and limb movements in smart gloves and fitness devices.

• Virtual Reality (VR) & Gaming: Enable gesture-based control systems and motion tracking.

• Medical & Rehabilitation Devices: Monitor patient movements, posture, and therapy progress.

• Human–Machine Interfaces (HMI): Create intuitive input devices for assistive technologies.

• Prototyping & IoT Projects: Ideal for STEM education, hobby electronics, and sensor experimentation.

• Musical Instruments: Used in digital instruments to control sound modulation through motion.

🚀 Benefits of Using Our Flex Sensor

• Reliable Performance: Delivers consistent readings even after repeated bending cycles.

• Fast Integration: Plug-and-play compatibility with popular development boards and IDEs.

• Cost-Effective: Affordable solution for motion sensing without expensive encoders or cameras.

• Compact & Portable: Easily embedded into textiles, plastics, and wearable form factors.

• Enhanced Creativity: Unlocks innovative designs for interactive electronics and smart systems.

🔍 Why Choose This Flex Sensor?

Our Flex Sensor offers an excellent balance of sensitivity, durability, and affordability. It is engineered for accurate bend measurement and long-term reliability, making it suitable for both academic projects and commercial product development. With strong compatibility across popular microcontroller platforms and minimal setup requirements, it empowers users to rapidly prototype and deploy motion-aware systems.

Whether you’re building a robotic hand, designing a smart wearable, or developing an intuitive human–machine interface, the Flex Sensor is the perfect solution for converting physical movement into actionable data.

Package Includes:

1 x Flex Sensor 2.2 inch

FAQ

1. Where can we buy this Flex Sensor 2.2 inch?

This product is available online https://aiiottech.in/product/flex-sensor/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this Flex Sensor 2.2 inch after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Flex Sensor 2.2 inch Bend Flex Sensor for Robotic hand
