HC-SR04 Ultrasonic Sensor Module

Discover the pinnacle of precision with the HC-SR04 Ultrasonic Sensor Module – a breakthrough in distance sensing technology. This compact and versatile module redefines the way distances are measured, providing unmatched accuracy and reliability for a myriad of applications.

This HC-SR04-Ultrasonic Range Finder is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects.

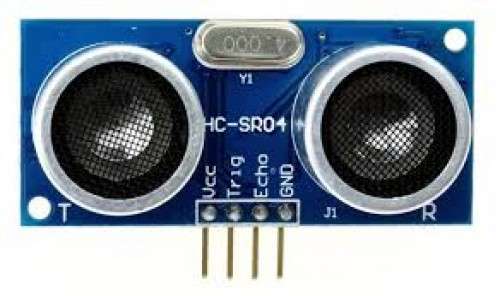

The module has two eyes like projects in the front which forms the Ultrasonic transmitter and Receiver.  The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.

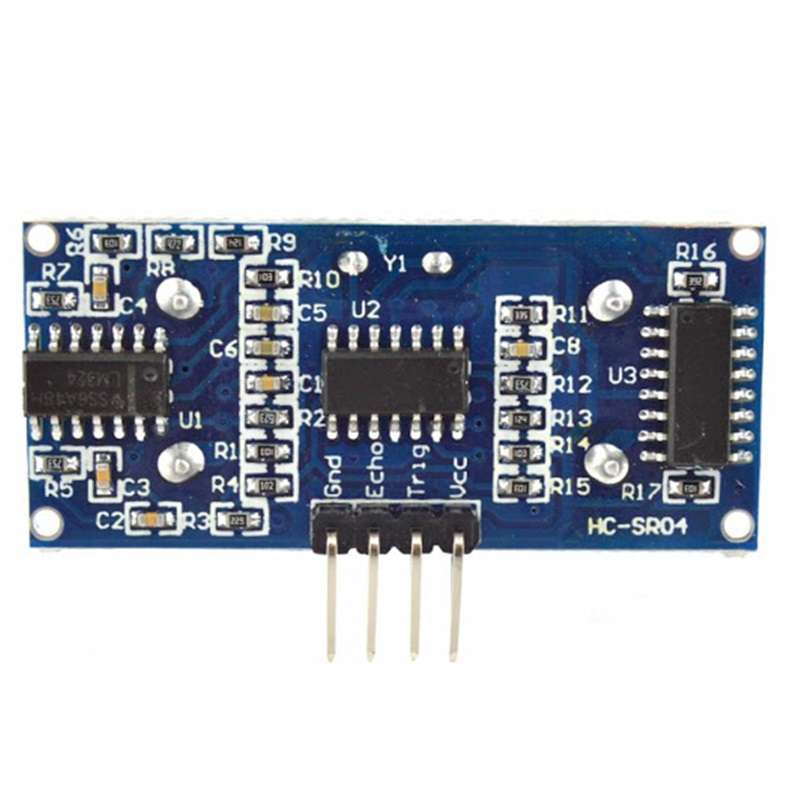

This Ultrasonic Sensor module is a transmitter, a receiver, and a control circuit in one single pack!! It has very handy and compact construction. It offers excellent range accuracy and stable readings in an easy-to-use package. Its operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect).

The Trigger and the Echo pins are the I/O pins of this module and hence they can be connected to the I/O pins of the microcontroller/Arduino. When the receiver detects the return wave the Echo pin goes high for a particular amount of time which will be equal to the time taken for the wave to return back to the sensor.

Ultrasonic Ranging Module HC-SR04 provides 2cm-400cm non-contact distance sensing capabilities, Ranging accuracy up to 3mm.

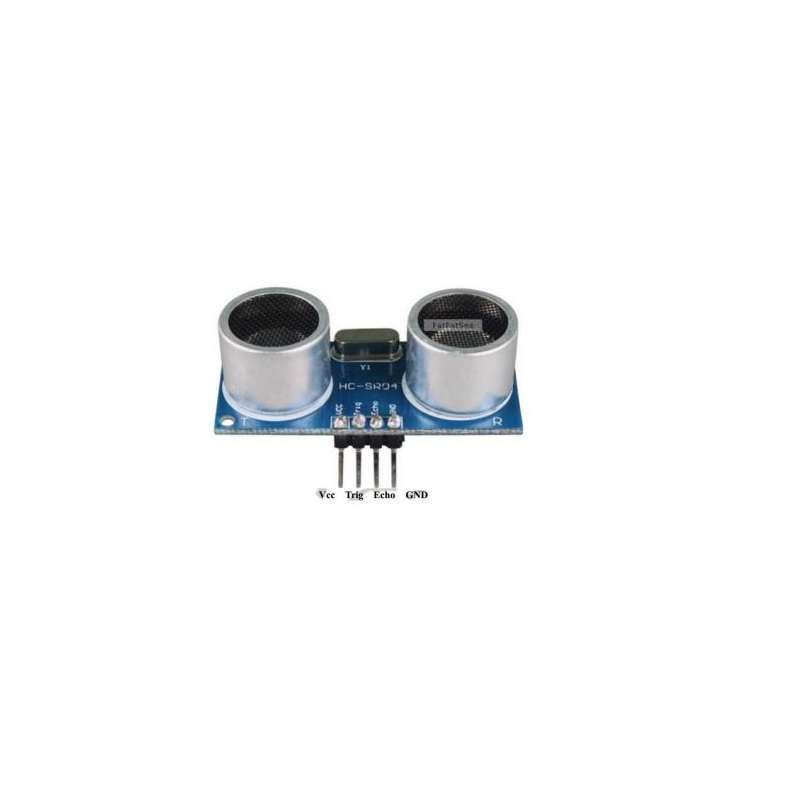

Wiring

5V (positive)

Trig (control)

Echo (receive)

GND (negative)

Key Features  of HC-SR04 Ultrasonic Sensor Module:

• Measures the distance within a wide range of 2cm to 400cm
• Stable performance
• Accurate distance measurement
• High-density
• Small blind distance

Special Features  of HC-SR04 Ultrasonic Sensor Module:

• Ultra-Precise Distance Measurement: The HC-SR04 sensor module utilizes ultrasonic waves to deliver precise distance measurements with an accuracy that sets it apart from the competition. From robotics to automation, experience unparalleled precision in your projects.
• Wide Detection Range: Covering a broad range of distances, the HC-SR04 module is designed to cater to diverse applications. Whether you need close proximity measurements or extended range sensing, this module adapts effortlessly to your requirements.
• Rapid and Real-Time Response: With an incredibly fast response time, the HC-SR04 ensures real-time data acquisition. This rapid response is pivotal for applications such as obstacle avoidance, security systems, and intelligent navigation.
• User-Friendly Interface: Engineered for simplicity, the HC-SR04 sensor module features a user-friendly interface that facilitates easy integration into various projects. Seamless connectivity and straightforward controls make it accessible to both novices and seasoned developers.
• Compact and Durable Design: The compact form factor of the HC-SR04 module makes it an ideal choice for projects with space constraints. Its robust build ensures durability, making it suitable for applications in challenging environments.

Applications of HC-SR04 Ultrasonic Sensor Module:

• Versatile Applications: The HC-SR04 module finds applications in a wide array of fields, including but not limited to:
• Robotics: Enable robots to navigate and interact with their surroundings intelligently by integrating the HC-SR04 for precise obstacle detection and avoidance.
• Automation: Enhance automation processes by incorporating the HC-SR04 for accurate object detection and positioning, optimizing workflow efficiency.
• Security Systems: Bolster security systems with reliable distance sensing capabilities, ensuring timely alerts and responses to potential threats.
• Smart Vehicles: Equip autonomous vehicles with the HC-SR04 to navigate safely, detecting obstacles and adjusting their trajectory in real-time.
• IoT Projects: Integrate the HC-SR04 into IoT projects for distance monitoring, enabling smart and responsive systems.
• Education and Prototyping: Ideal for educational purposes and prototyping, the HC-SR04 offers a practical and reliable solution for exploring the principles of ultrasonic sensing.

Package Includes:

1 x HC-SR04-Ultrasonic Range Finder
