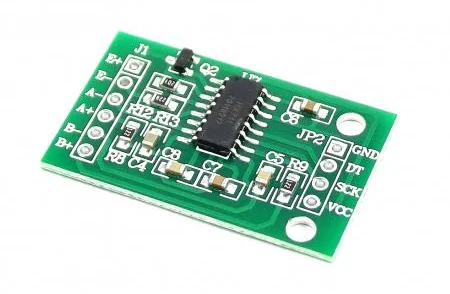

HX711 Load Cell Sensor Module

HX711 Load Cell Sensor Module, the perfect solution for accurate and reliable weight measurement. Whether you’re designing a digital scale, monitoring the weight of industrial materials, or creating a custom weighing system, this advanced sensor module offers high precision and stability for all your weight measurement needs.

The HX711 Load Cell Sensor Module is designed to interface seamlessly with load cells, converting analog weight data into precise digital signals for further processing. This sensor is ideal for applications in industrial automation, electronics projects, weighing scales, and laboratory testing, providing accurate results every time.

Key Features of HX711 Load Cell Sensor Module

• High Precision and Accuracy: The HX711 module features a 24-bit analog-to-digital converter (ADC) that ensures extremely accurate and stable weight readings. With high resolution and low noise, it provides exceptional precision for even the smallest weight changes.

• Low Power Consumption: The HX711 is designed to operate with minimal power consumption, making it an excellent choice for battery-powered devices or applications requiring energy efficiency.

• Easy to Integrate: The sensor module comes with simple wiring and clear documentation, making it easy to integrate into your existing system. Whether you are working with microcontrollers like Arduino or Raspberry Pi, the HX711 module is compatible with a wide range of platforms.

• Built-in Programmable Gain Amplifier (PGA): The module features a programmable gain amplifier, allowing for easy amplification of small signal changes. This feature enhances its performance in different weight measurement scenarios, ensuring that even tiny changes in load are captured with accuracy.

• Wide Operating Voltage: The HX711 sensor operates with a wide voltage range (2.6V to 5.5V), which ensures compatibility with various microcontroller setups and power sources.

• Robust and Reliable: With its durable build and stable performance, the HX711 module is built to withstand industrial environments and high-frequency operations, providing long-lasting, reliable service.

• Compact and Lightweight: The compact design allows the HX711 sensor to fit into tight spaces, making it an ideal choice for portable or space-constrained applications.

Applications of HX711 Load Cell Sensor Module

 HX711 Load Cell Sensor Module is a versatile and essential tool for various applications across different industries. Some of the most common applications include:

1. Digital Weighing Scales

The HX711 module is commonly used in digital weighing scales for both commercial and personal use. It accurately converts weight measurements from load cells into digital values, making it a key component in high-performance electronic scales.

2. Industrial Weight Monitoring

In industrial settings, the HX711 module can be integrated into material handling systems to measure and monitor the weight of goods, components, or machinery parts. Its precision and reliability make it suitable for demanding industrial environments where accurate weight data is critical.

3. Agricultural Applications

Farmers and agricultural engineers use the HX711 sensor to measure and track the weight of crops, livestock, and feed. The sensor provides valuable insights into agricultural processes, such as monitoring harvests or tracking animal weight for health assessments.

4. Research and Development

In laboratories and research environments, the HX711 sensor module is used for precise weight measurements in experiments and testing. Whether it’s for measuring the mass of substances or tracking changes in weight over time, this module provides dependable, repeatable results.

5. Load Monitoring in Transportation

In logistics and transportation, the HX711 module can be used to monitor the weight of packages and cargo. This is particularly useful in automated systems where the weight of the load is crucial for ensuring correct load distribution and compliance with transportation regulations.

6. DIY Projects and Electronics

Hobbyists and engineers frequently use the HX711 module in DIY electronics projects, particularly those involving weight measurement systems. It is commonly used with microcontrollers like Arduino or Raspberry Pi to create custom scales and weigh stations.

Why Choose the HX711 Load Cell Sensor Module?

1. High-Resolution Measurements

With its 24-bit ADC and programmable gain amplifier, the HX711 ensures that even the smallest weight variations are captured accurately, providing exceptional resolution and stability for your weight monitoring systems.

2. Cost-Effective Solution

The HX711 module offers a high-performance load cell interface at an affordable price, making it a cost-effective solution for both small-scale and large-scale weight measurement applications. It allows users to implement high-quality weight sensors without breaking the budget.

3. Versatile Compatibility

The HX711 module is compatible with a wide range of microcontrollers, including popular platforms such as Arduino, Raspberry Pi, and ESP32. This broad compatibility makes it easy to integrate into existing systems and projects, reducing development time and complexity.

4. Compact and Space-Saving

With its small form factor, the HX711 load cell sensor module fits into tight spaces, making it ideal for portable devices or applications where size is a concern.

5. Stable and Reliable Performance

Built to last, the HX711 module provides long-term stability and accuracy. Whether used in a high-volume industrial setting or for personal DIY projects, you can count on consistent performance over time.

6. Low Power Consumption

Designed for energy efficiency, the HX711 module operates with minimal power, making it perfect for battery-operated systems. This feature is essential for mobile or remote applications where conserving energy is a priority.

How It Works

The HX711 Load Cell Sensor Module uses an analog-to-digital converter (ADC) to convert the analog signal generated by the load cell into a digital output. The load cell detects weight through a strain gauge, which deforms under load, changing the resistance and producing an analog signal. The HX711 module amplifies and converts this signal into a digital value that can be easily processed by a microcontroller.

The HX711 has a built-in programmable gain amplifier (PGA), which can amplify small load cell signals, making it suitable for applications requiring high precision. The module provides two differential channels, allowing for the connection of multiple load cells if needed, and outputs data via a two-wire interface (SCK and DT), which is easy to integrate with your microcontroller or system.

Order Your HX711 Load Cell Sensor Module Today

If you’re looking for a precise, reliable, and easy-to-use load cell sensor module for your next project or application, the HX711 Load Cell Sensor Module is the perfect choice. Its high-resolution performance, low power consumption, and broad compatibility make it an essential tool for a wide range of industries and applications.

Package Includes :

1 x HX711 Load Cell Sensor Module

FAQ

1. Where can we buy this HX711 Load Cell Sensor Module?

This product is available online at https://aiiottech.in/product/hx711-load-cell-sensor-module/ ‎  and also available at  our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this HX711 Load Cell Sensor Module?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 2-3 working days.

3. How this HX711 Load Cell Sensor Module is better than other similar products?


The HX711 offers superior 24-bit resolution, low power consumption, and easy integration, providing unmatched accuracy and reliability in load measurement.
