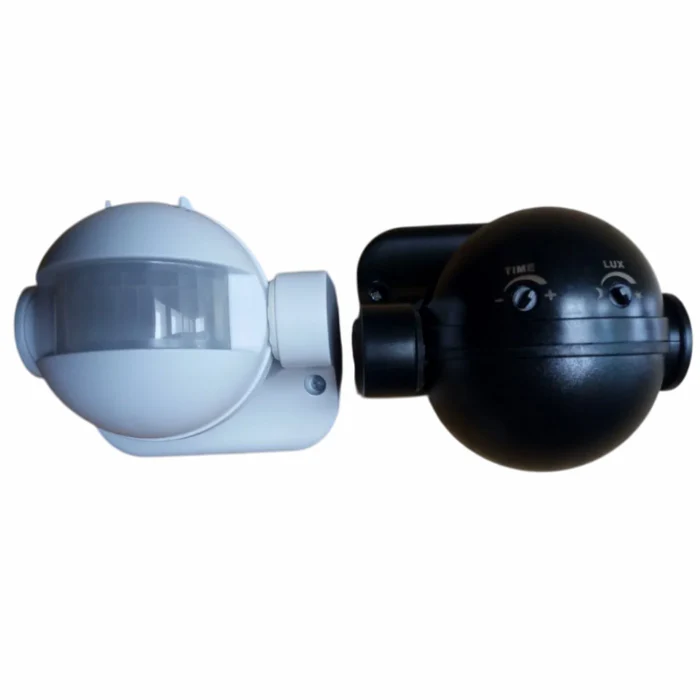

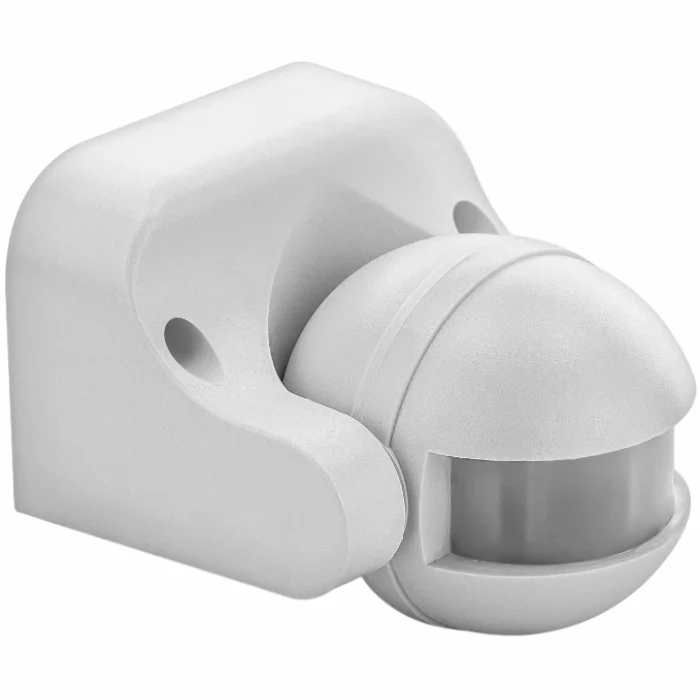

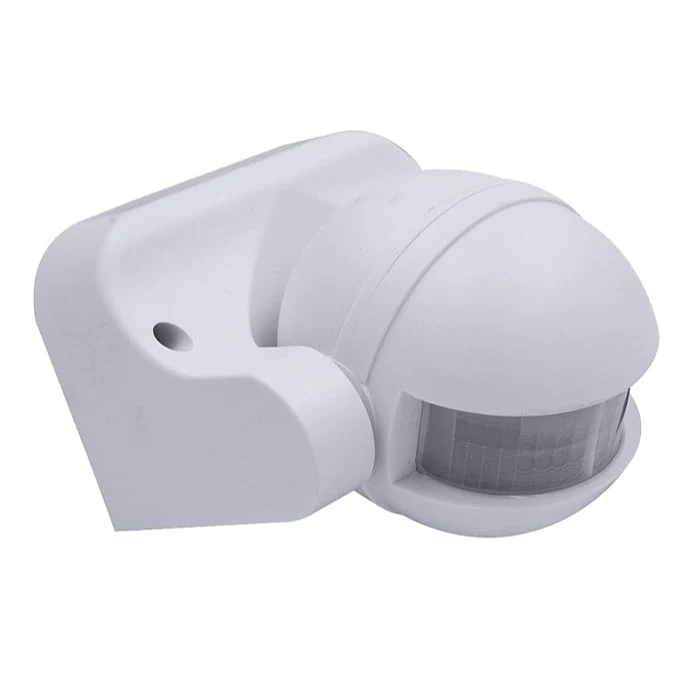

IP44 PIR Wall Mounted Outdoor Motion Sensor

IP44 PIR Wall Mounted Outdoor Motion Sensor is a high-performance motion detection solution designed to improve security, safety, and energy efficiency in residential, commercial, and industrial environments. Using advanced Passive Infrared (PIR) sensing technology, this sensor accurately detects human movement by sensing changes in infrared radiation, ensuring dependable activation of connected lighting or alarm systems.

Engineered for outdoor use, the sensor features an IP44 weather-resistant enclosure, making it suitable for operation in rain, dust, and varying environmental conditions. Its wall-mounted design allows easy installation near entrances, pathways, parking areas, gardens, and building perimeters. With adjustable detection settings and wide coverage, this PIR motion sensor is an ideal choice for automatic lighting control and enhanced property protection.

Key Features of IP44 PIR Wall Mounted Outdoor Motion Sensor

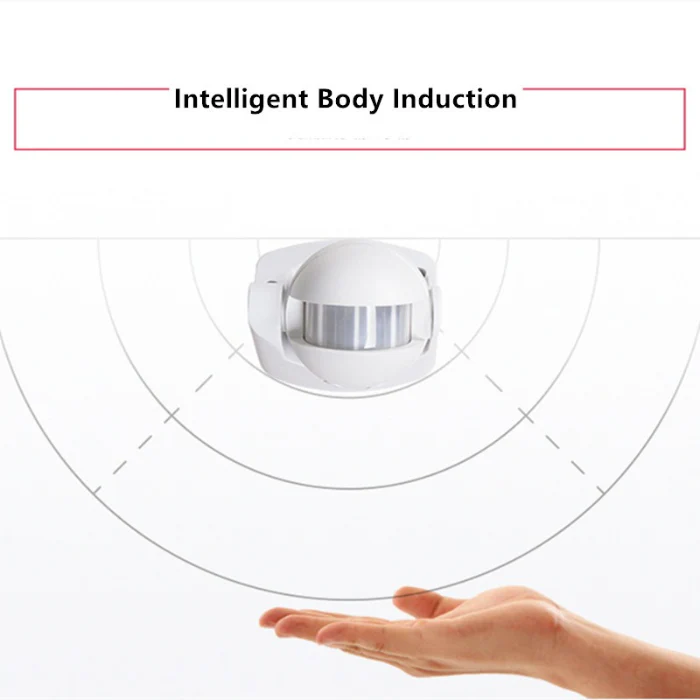

• Advanced PIR Motion Detection
  Accurately detects human movement by sensing body heat, reducing false triggers caused by environmental changes.

• IP44 Weatherproof Protection
  Designed to withstand rain splashes and dust, making it suitable for outdoor and semi-outdoor installations.

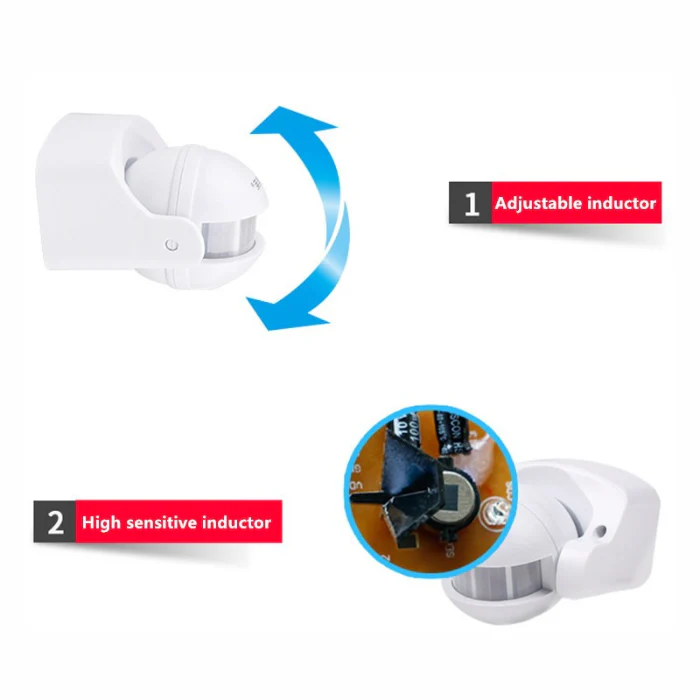

• Wide Detection Angle & Range
  Covers a broad area for effective monitoring of driveways, corridors, gardens, and entry points.

• Wall Mounted Design
  Compact and aesthetically pleasing housing ensures discreet installation on walls and building exteriors.

• Adjustable Time Delay
  Allows users to set how long the connected light or device remains ON after motion is detected.

• Adjustable Light Sensitivity (LUX Control)
  Enables operation only during low-light conditions, preventing unnecessary activation during daylight.

• Energy Efficient Operation
  Automatically switches lights ON only when movement is detected, reducing electricity consumption.

• Wide Load Compatibility
  Suitable for controlling LED, CFL, incandescent lamps, and other electrical loads within rated capacity.

Technical Specifications – IP44 PIR Outdoor Motion Sensor

• Sensor Type: Passive Infrared (PIR)

• Mounting Type: Wall Mounted

• Ingress Protection: IP44

• Detection Angle: Up to 120°–180° (model dependent)

• Detection Range: Up to 8–12 meters

• Operating Voltage: 220–240V AC, 50/60Hz

• Load Capacity:

  • Incandescent Lamps: up to 1200W

  • LED / CFL Lamps: up to 300W

• Time Delay: Adjustable (approx. 10 seconds to 7 minutes)

• Light Level Adjustment: <10 Lux to 2000 Lux

• Installation Height: Recommended 1.8–2.5 meters

• Operating Temperature: –20°C to +40°C

• Housing Material: UV-resistant ABS plastic

• Color: White / Black (varies by model)

Specifications may vary slightly depending on the manufacturer.

Applications of IP44 PIR Wall Mounted Motion Sensor

The IP44 PIR Wall Mounted Outdoor Motion Sensor is widely used across residential, commercial, and industrial settings due to its versatility and reliability.

• Outdoor Lighting Control
  Automatically activates lights in gardens, pathways, driveways, and parking areas when motion is detected.

• Home Security Systems
  Enhances security by triggering lights or alarms upon detecting unauthorized movement.

• Commercial Buildings
  Ideal for office exteriors, warehouses, loading docks, and shop entrances.

• Residential Properties
  Suitable for homes, apartments, villas, and gated communities.

• Public & Utility Areas
  Used in staircases, corridors, basements, and walkways for improved safety.

• Energy Saving Installations
  Helps reduce power consumption by ensuring lights are used only when needed.

Why Choose the IP44 PIR Wall Mounted Outdoor Motion Sensor?

This PIR motion sensor offers an excellent combination of durability, precision, and energy efficiency. Its weather-resistant IP44 rating ensures reliable outdoor operation, while adjustable settings provide complete control over lighting behavior. The sensor’s ability to minimize false triggers and operate only in low-light conditions makes it an ideal solution for both security and convenience.

Whether you are upgrading outdoor lighting, improving property security, or implementing energy-saving automation, the IP44 PIR Wall Mounted Outdoor Motion Sensor delivers dependable performance and long-term value.

Package Includes:

1 x IP44 PIR Wall Mounted Outdoor Motion Sensor

FAQ

1. Where can we buy this IP44 PIR Wall Mounted Outdoor Motion Sensor?

This product is available online https://aiiottech.in/product/ip44-pir-wall-mounted-outdoor-motion-sensor/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this IP44 PIR Wall Mounted Outdoor Motion Sensor after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: IP44 Indoor Outdoor Garden Security PIR Motion Sensors
