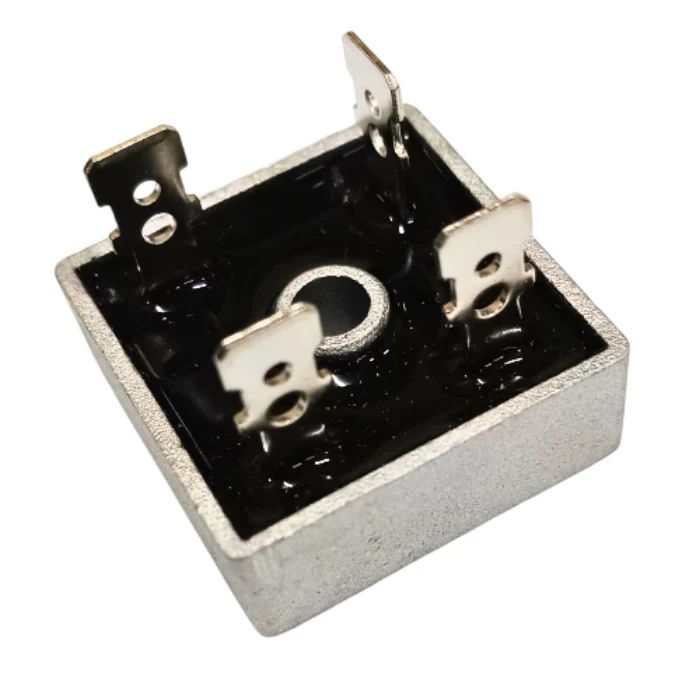

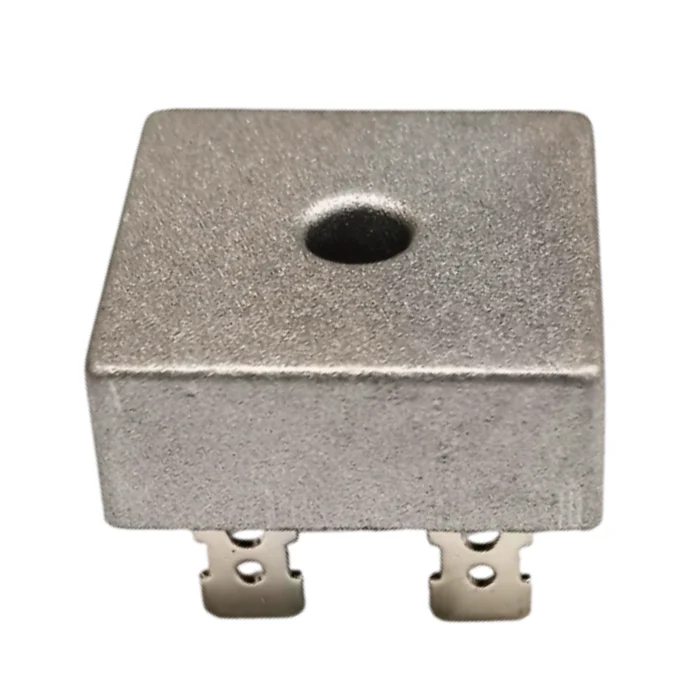

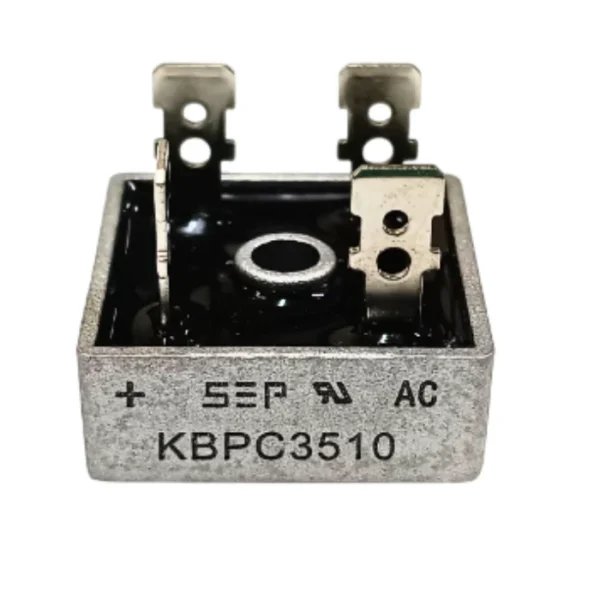

KBPC3510 Bridge Rectifier (Convert AC Into DC)

KBPC3510 Bridge Rectifier, a high-performance electronic component designed to efficiently convert alternating current (AC) into direct current (DC). Built for reliability, durability, and high current handling, this bridge rectifier is widely used in power supplies, industrial equipment, battery chargers, and motor drives. With a robust metal case and excellent heat dissipation characteristics, the KBPC3510 ensures stable operation even in demanding electrical environments.

Whether you are an electronics hobbyist, technician, or industrial system designer, the KBPC3510 bridge rectifier module offers a dependable solution for high-power rectification applications. Its compact square package with clearly marked terminals simplifies installation and ensures secure electrical connections, making it suitable for both prototyping and mass production.

🔧 Key Specifications

• Model Number: KBPC3510

• Type: Single-phase bridge rectifier

• Maximum Average Forward Current (IF): 35A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Maximum RMS Input Voltage: 700V

• Forward Voltage Drop: Approximately 1.1V per diode

• Surge Current Capability: Up to 400A (non-repetitive)

• Mounting Type: Through-hole / chassis mount

• Package Style: Metal square bridge package

• Operating Temperature Range: -55°C to +150°C

• Terminal Type: Screw terminals for secure connections

• Cooling: Compatible with heatsinks for improved thermal performance

These specifications make the KBPC3510 rectifier ideal for high-voltage and high-current applications requiring efficient AC-to-DC conversion with minimal power loss.

⭐ Features

✅ High Current Handling (35A)

Designed for heavy-duty applications, the KBPC3510 can handle continuous currents up to 35 amperes, making it suitable for power-intensive circuits and industrial-grade equipment.

✅ High Voltage Rating (1000V)

With a peak reverse voltage rating of 1000V, this bridge rectifier ensures excellent protection against voltage surges and line fluctuations.

✅ Rugged Metal Package

The durable metal housing improves heat dissipation and provides mechanical strength, enabling reliable performance in harsh operating environments.

✅ Efficient AC to DC Conversion

Low forward voltage drop minimizes energy loss and improves overall efficiency in rectification circuits.

✅ Easy Installation

Clearly labeled terminals (~, ~, +, -) and screw mounting holes allow quick and error-free wiring in power supply and converter designs.

✅ Long Service Life

Built with high-quality semiconductor materials, the KBPC3510 bridge rectifier delivers long-term stability and dependable electrical performance.

⚡ Applications

The KBPC3510 Bridge Rectifier (Convert AC into DC) is widely used across consumer electronics, industrial automation, and power electronics systems. Some common applications include:

🔹 Power Supply Units (PSUs)

Ideal for converting AC mains voltage into DC output in linear and switching power supplies used in electronics equipment.

🔹 Battery Chargers

Frequently used in high-current battery charger circuits for lead-acid batteries, lithium battery packs, and backup power systems.

🔹 Motor Drives and Controllers

Suitable for rectifying AC input power in DC motor drives, speed controllers, and motor control circuits.

🔹 Welding Machines and Inverters

Used in welding rectifiers, UPS systems, and inverter circuits where reliable high-current rectification is essential.

🔹 Industrial Equipment

Common in CNC machines, automation panels, industrial power controllers, and heavy-duty machinery power sections.

🔹 Home Appliances

Used in washing machines, air conditioners, microwave ovens, and other appliances that require efficient AC to DC power conversion.

🛠 Why Choose KBPC3510 Bridge Rectifier?

The KBPC3510 stands out for its excellent balance of performance, durability, and cost-effectiveness. Compared to standard diode rectifiers, this bridge rectifier module reduces circuit complexity by integrating four high-power diodes into a single compact package. Its ability to withstand high surge currents and voltage spikes makes it ideal for environments with unstable power conditions.

Additionally, the metal-cased structure allows for easy heatsink mounting, ensuring superior thermal management and enhanced operational safety. Whether used in educational projects, commercial electronics, or industrial power systems, the KBPC3510 ensures smooth and stable DC output from AC input sources.

If you are looking for a high-quality bridge rectifier module to convert AC into stable DC output, the KBPC3510 is an excellent choice for both professional and DIY electronics projects.

Package Includes:

1 x KBPC3510 Bridge Rectifier (Convert AC Into DC)
