L298N Motor Driver IC

L298N Motor Driver IC is a versatile and high-performance dual H-Bridge driver designed to control DC motors, stepper motors, and other inductive loads in robotics, automation, and embedded system applications. Known for its reliability and efficiency, the L298N allows seamless bidirectional control of two motors simultaneously, making it the perfect choice for hobbyists, engineers, and professionals developing motor-driven projects.

With the growing demand for robotics, automation, and IoT-based motor control systems, the L298N Motor Driver IC has emerged as a standard solution for precise motor management, offering both robust performance and ease of integration. Its ability to handle high currents and voltages makes it suitable for a wide variety of motorized applications, from small robotic cars to industrial equipment.

Key Specifications of L298N Motor Driver IC

• Dual H-Bridge Motor Driver: Capable of driving two DC motors independently or one stepper motor.

• Operating Voltage Range: 5V to 35V, compatible with most microcontrollers and development boards.

• Current Handling Capacity: Up to 2A per channel (continuous), with peak currents of 3A per channel.

• Control Logic Voltage: 5V logic compatible, works seamlessly with Arduino, Raspberry Pi, ESP32, and other microcontrollers.

• Thermal Shutdown Protection: Built-in thermal protection ensures safe operation under high load.

• Overcurrent Protection: Prevents motor driver damage in case of excessive current draw.

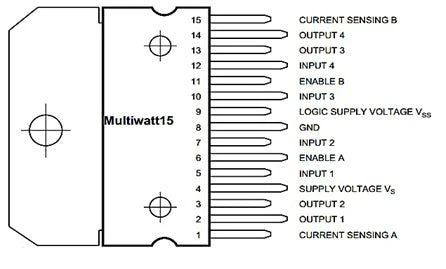

• Package Type: 15-pin Multiwatt power package, ensuring easy PCB integration and heat dissipation.

• High Noise Immunity: Ensures stable operation in noisy environments.

Features of L298N Motor Driver IC

1. Dual Motor Control – Control two motors independently with forward, reverse, and stop functions.

2. Bidirectional Motor Operation – Allows smooth rotation of motors in both clockwise and counterclockwise directions.

3. High Current Capacity – Supports motors up to 2A continuously per channel, suitable for medium-power robotics applications.

4. Easy Interfacing – Compatible with most microcontrollers including Arduino, Raspberry Pi, PIC, and STM32.

5. PWM Speed Control – Supports pulse-width modulation (PWM) for precise speed regulation of motors.

6. Robust Thermal and Overcurrent Protection – Protects the IC and connected motors from damage during high-load conditions.

7. Stepper Motor Support – Ideal for bipolar stepper motors, making it perfect for CNC machines and 3D printers.

8. Compact and Reliable – Provides a compact solution without sacrificing performance, suitable for tight project spaces.

Applications of L298N Motor Driver IC

The L298N Motor Driver IC is widely used in multiple motor-driven applications across robotics, industrial automation, and electronics projects. Some of the common applications include:

• Robotics Projects: Drive wheels, tracks, or arms in robotic cars, line-following robots, and autonomous vehicles.

• DC Motor Control: Ideal for small-to-medium DC motor-based systems in toys, conveyors, or gadgets.

• Stepper Motor Control: Used in 3D printers, CNC machines, and robotic arms for precise movement.

• Home Automation Systems: Operate motorized curtains, doors, gates, and fans.

• Industrial Automation: Manage motors in assembly lines, packaging machines, and conveyor belts.

• IoT and Embedded Systems: Integrates with microcontroller projects requiring motor speed and direction control.

• Educational Electronics Kits: Perfect for teaching motor control concepts in STEM labs and maker workshops.

Why Choose L298N Motor Driver IC?

The L298N Motor Driver IC combines reliability, versatility, and efficiency in a single package, making it a go-to choice for electronics enthusiasts and professional developers alike. Its high current capacity, dual motor control, and easy microcontroller interfacing allow precise motor management in projects of varying complexity. Whether you are building a robotic car, an automated conveyor system, or a DIY home automation device, the L298N ensures smooth and safe operation for your motors.

With PWM-based speed control, bidirectional operation, and built-in protections, this motor driver IC provides enhanced performance and long-lasting durability, giving you complete confidence in your designs.

Invest in the L298N Motor Driver IC today for a reliable and efficient motor control solution suitable for hobbyists, educational projects, and industrial applications. Enhance your robotics, automation, and embedded system projects with a trusted motor driver that delivers precision, performance, and ease of use.

Package Includes:

1 x L298N Motor Driver IC

FAQ

1. Where can we buy this L298N Motor Driver IC?

This product is available online  https://aiiottech.in/product/l298n-motor-driver-ic/  and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this L298N Motor Driver IC after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
