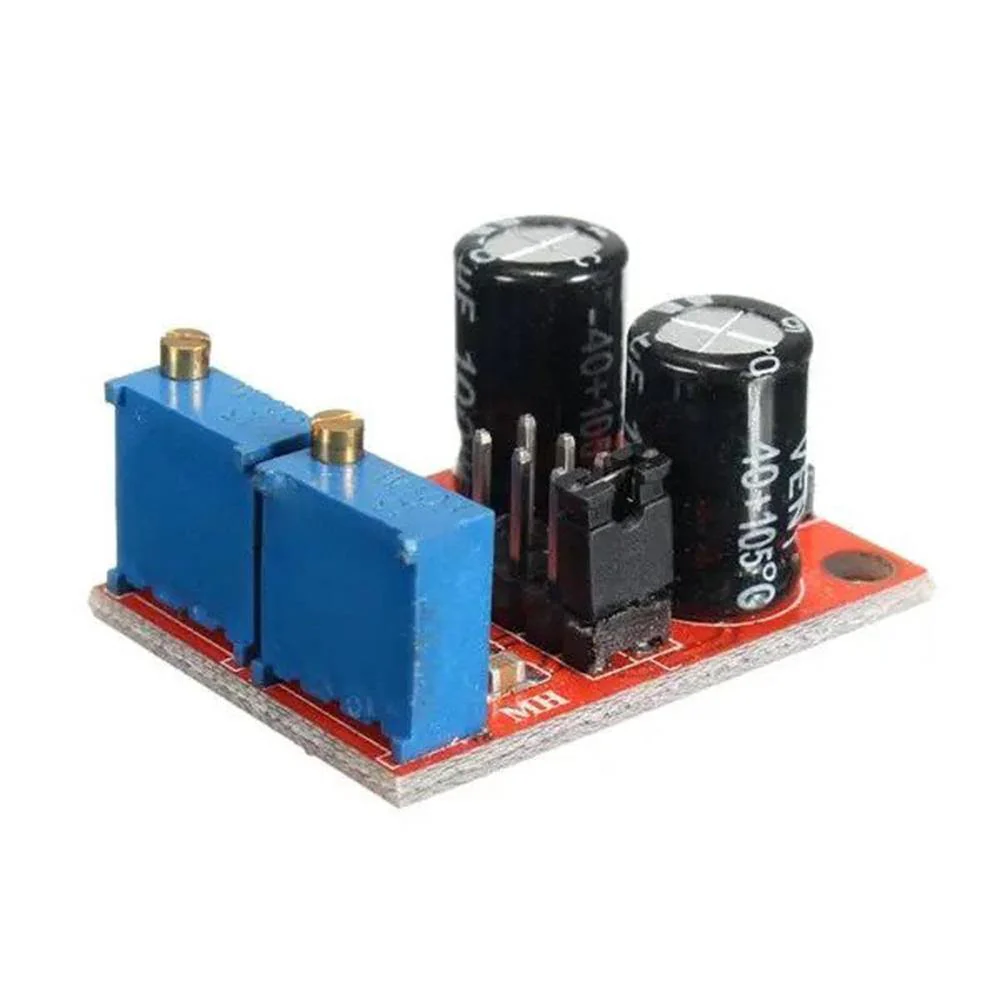

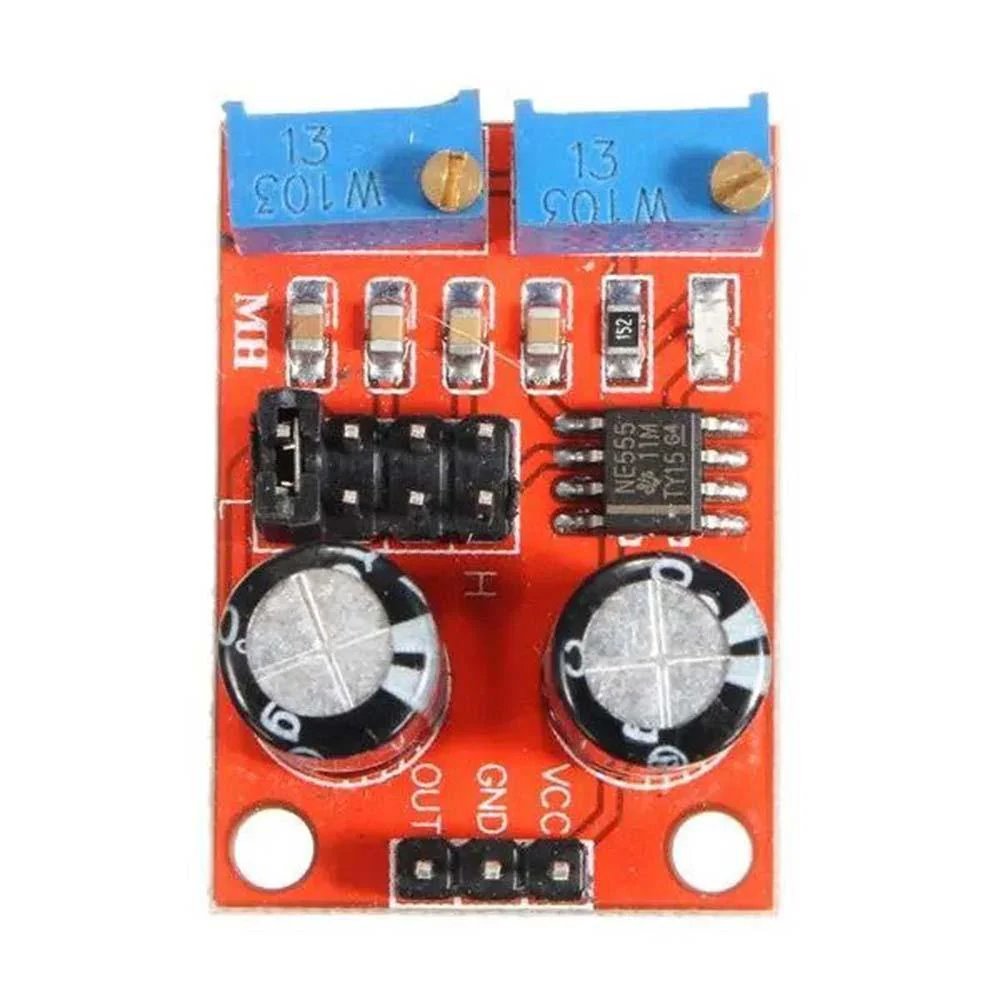

NE555 Pulse Duty Cycle Adjustable Module

NE555 Pulse Duty Cycle Adjustable Module is a compact and reliable PWM (Pulse Width Modulation) signal generator designed for precise control of motor speed, LED brightness, pulse frequency, and timing applications. Built around the industry-standard NE555 timer IC, this module delivers stable and adjustable square-wave output, making it an essential tool for electronics hobbyists, educators, and industrial developers.

With simple knob-based adjustment and wide voltage compatibility, this duty cycle adjustable module allows users to easily fine-tune output parameters without complex programming or microcontrollers. Whether you are working on a DIY electronics project, automation system, or testing environment, the NE555 module offers cost-effective and dependable pulse generation.

Key Features of NE555 Pulse Duty Cycle Adjustable Module

• Based on NE555 Timer IC
  Uses the highly reliable and widely available NE555 integrated circuit for stable pulse generation.

• Adjustable Duty Cycle & Frequency
  Enables independent adjustment of duty cycle and frequency through onboard potentiometers.

• Wide Operating Voltage Range
  Supports a broad input voltage range, making it suitable for various power supply configurations.

• PWM Output Signal
  Generates clean and stable square-wave signals ideal for motor control, dimming, and switching applications.

• Compact & Ready-to-Use Module
  Pre-assembled PCB design allows easy integration into existing projects without additional circuitry.

• Low Power Consumption
  Efficient design ensures minimal power usage during continuous operation.

• High Stability & Reliability
  Delivers consistent performance with low drift over time.

Technical Specifications – NE555 Duty Cycle Adjustable Module

• IC Used: NE555 Timer

• Operating Voltage: 5V – 15V DC

• Output Signal Type: Square Wave / PWM

• Frequency Range: Approximately 1 Hz to 200 kHz (adjustable)

• Duty Cycle Range: 5% – 95% (adjustable)

• Output Current: Up to 200 mA (IC dependent; external driver recommended for high loads)

• Trigger Mode: Astable

• Output Terminal: TTL compatible output

• Control Method: Onboard potentiometer(s)

• Board Type: Pre-soldered PCB module

• Dimensions: Compact form factor for easy mounting

Note: Output parameters may vary slightly depending on power supply and component tolerances.

Applications of NE555 Pulse Duty Cycle Adjustable Module

The NE555 PWM adjustable module is widely used across multiple domains due to its flexibility and simplicity. Typical applications include:

Motor Speed Control

Ideal for controlling the speed of DC motors, fans, and small pumps by varying the duty cycle of the PWM signal.

LED Dimming & Lighting Control

Allows smooth and efficient brightness control of LEDs without affecting color temperature.

Signal Generation & Testing

Used as a square-wave signal source for testing circuits, oscilloscopes, and logic analyzers.

Pulse & Timing Control

Suitable for generating clock pulses, delay circuits, and timing sequences in electronic designs.

Switching Power Control

Can be used to drive MOSFETs or transistors in switching applications when paired with appropriate drivers.

DIY, Educational & Training Projects

Popular among students and hobbyists for learning PWM concepts, timer circuits, and basic automation.

Audio & Tone Generation

Can generate adjustable tones and frequencies for buzzers and audio testing applications.

Why Choose the NE555 Pulse Duty Cycle Adjustable Module?

The NE555 Pulse Duty Cycle Adjustable Module offers an excellent combination of simplicity, versatility, and affordability. Unlike microcontroller-based solutions, this module requires no programming, making it ideal for rapid prototyping and quick deployment. Its stable output, wide adjustability, and compact design make it suitable for both beginner and professional electronics projects.

Backed by the proven reliability of the NE555 timer IC, this module ensures long-term performance in continuous operation. Whether you need precise PWM control for motors, dimming circuits, or experimental setups, this module delivers consistent and predictable results.

Buy NE555 PWM Adjustable Module Online

Upgrade your electronics projects with the NE555 Pulse Duty Cycle Adjustable Module and gain precise control over frequency and duty cycle with ease. A must-have component for automation, testing, and DIY electronics, this module offers unmatched value and reliability.

Order now and simplify your PWM and pulse generation requirements with this versatile NE555-based module.

Package Includes:

1 x NE555 Pulse Duty Cycle Adjustable Module

FAQ

1. Where can we buy this NE555 Pulse Duty Cycle Adjustable Module?

This product is available online https://aiiottech.in/product/ne555-pulse-duty…djustable-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this NE555 Pulse Duty Cycle Adjustable Module after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Review NE555 Pulse Frequency Cycle Adjustable Module
