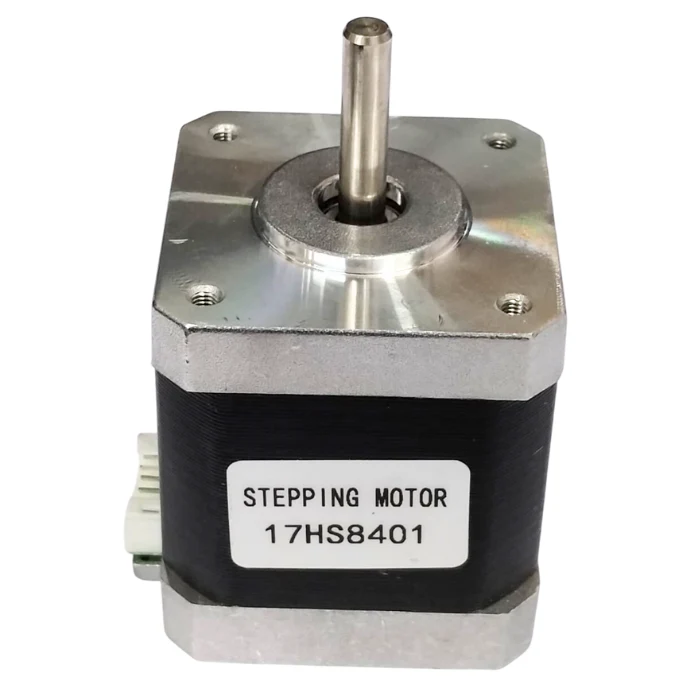

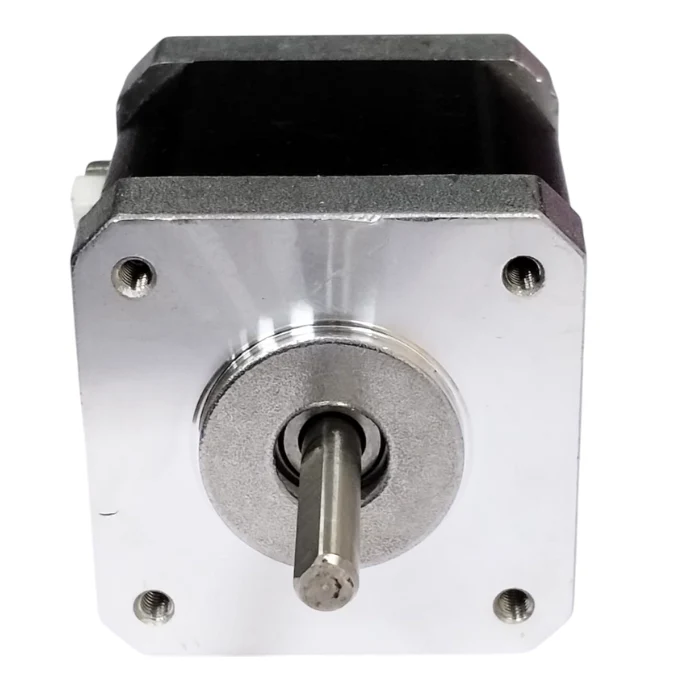

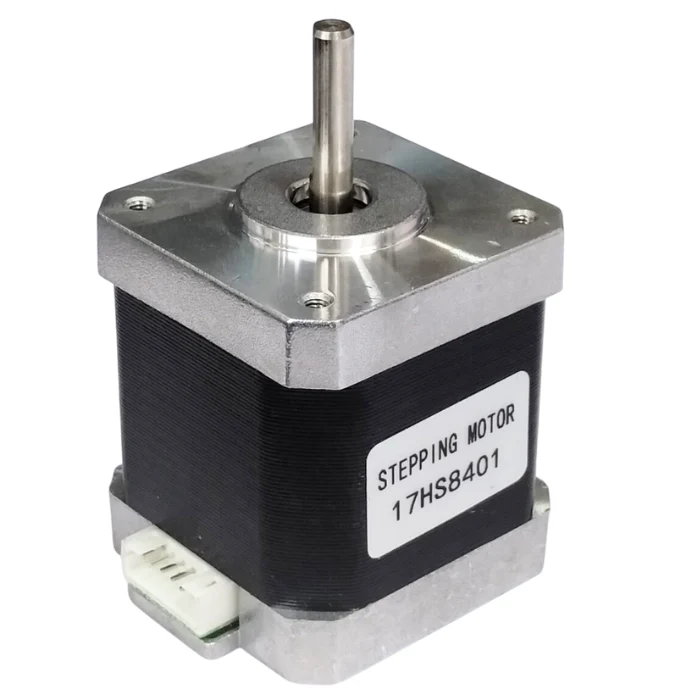

NEMA17 17HS8401S 48mm Stepper Motor

NEMA17 17HS8401S 48mm Stepper Motor is a high-performance hybrid stepper motor designed for applications that demand precision motion control, consistent torque, and long-term reliability. With its compact NEMA 17 frame size and extended 48mm body length, this motor delivers enhanced torque output while maintaining compatibility with standard mounts and motion systems. It is an ideal choice for 3D printers, CNC machines, robotics, and industrial automation projects.

Engineered with high-quality copper windings, precision bearings, and optimized magnetic design, the 17HS8401S ensures smooth rotation, accurate positioning, and low vibration. Whether you are upgrading an existing system or building a new motion control setup, this stepper motor provides dependable performance for both professional and DIY applications.

Key Features of NEMA17 17HS8401S Stepper Motor

• High Holding Torque
  The 48mm body length allows for increased magnetic strength, delivering high holding torque suitable for demanding motion tasks.

• Standard NEMA 17 Frame Size
  Ensures easy integration with commonly available brackets, lead screws, couplers, and linear motion assemblies.

• High Precision & Accuracy
  With a 1.8° step angle (200 steps per revolution), the motor offers precise and repeatable positioning for fine motion control.

• Two-Phase Hybrid Stepper Design
  Combines permanent magnet and variable reluctance technologies for improved efficiency, torque, and stability.

• Low Noise & Reduced Vibration
  Optimized internal construction minimizes resonance, making it ideal for quiet operation in desktop machines.

• Durable & Long-Lasting Construction
  Built with high-grade laminations, insulated copper windings, and robust bearings to ensure extended service life.

• Wide Driver Compatibility
  Compatible with popular stepper drivers such as A4988, DRV8825, TMC2208, TMC2209, and other NEMA 17 drivers.

Technical Specifications – NEMA17 17HS8401S (48mm)

• Motor Type: Hybrid Stepper Motor

• Frame Size: NEMA 17 (42 × 42 mm)

• Model Number: 17HS8401S

• Body Length: 48 mm

• Step Angle: 1.8°

• Steps per Revolution: 200

• Number of Phases: 2

• Rated Voltage: Approx. 2.8 V

• Rated Current: 1.7 A per phase

• Holding Torque: Up to 0.59 N·m (≈ 84 oz-in)

• Shaft Diameter: 5 mm

• Shaft Type: Single shaft, round or D-cut

• Wiring: 4-wire bipolar

• Insulation Class: Class B

• Operating Temperature: –20°C to +50°C

Note: Specifications may vary slightly depending on manufacturer or production batch.

Applications of NEMA17 17HS8401S Stepper Motor

The NEMA17 17HS8401S stepper motor is widely used across multiple industries due to its compact size, precision, and reliable torque output. Typical applications include:

• 3D Printers
  Perfect for X, Y, Z axis movement and extruder drive systems, ensuring accurate layer positioning and smooth prints.

• CNC Machines & Laser Engravers
  Suitable for small CNC routers, PCB milling machines, and desktop laser engraving systems.

• Robotics & Mechatronics
  Used in robotic arms, mobile robots, and automated positioning mechanisms.

• Industrial Automation Equipment
  Ideal for pick-and-place systems, conveyor controls, and automated inspection tools.

• Camera Sliders & Motion Control Rigs
  Provides smooth, precise motion for photography and videography equipment.

• DIY, Educational & Research Projects
  Popular among hobbyists, students, and engineers for prototyping and learning motion control systems.

Why Choose the NEMA17 17HS8401S Stepper Motor?

The 17HS8401S 48mm stepper motor offers an excellent balance of compact size, high torque, accuracy, and durability. Its standardized NEMA 17 design ensures easy installation, while its robust performance makes it suitable for both light-duty and demanding applications. With broad driver compatibility and consistent output, this motor is a trusted solution for modern motion control needs.

Upgrade your project with the NEMA17 17HS8401S 48mm Stepper Motor and achieve smooth, precise, and reliable motion performance.

Package Includes:

1 x NEMA17 17HS8401S 48mm Stepper Motor

FAQ

1. Where can we buy this NEMA17 17HS8401S 48mm Stepper Motor?

This product is available online at https://aiiottech.in/product/nema17-17hs4401-40mm-stepper-motor/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this NEMA17 17HS8401S 48mm Stepper Motor after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
