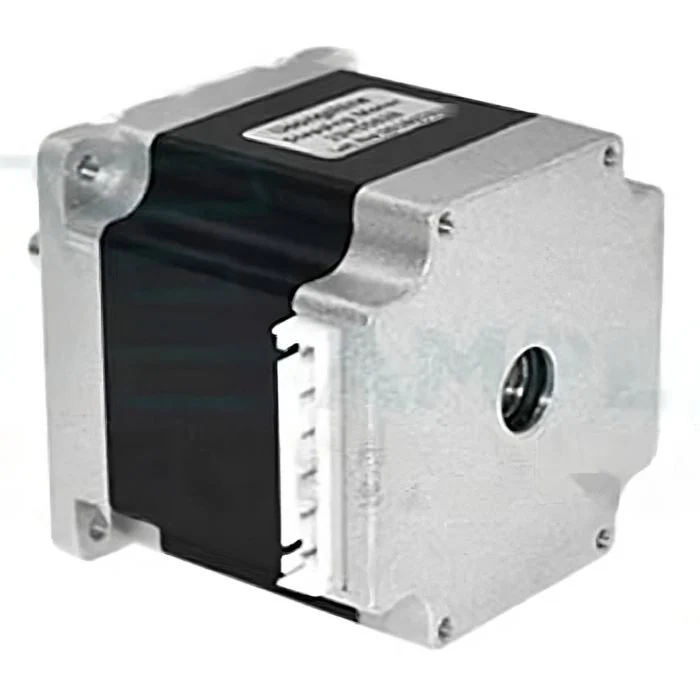

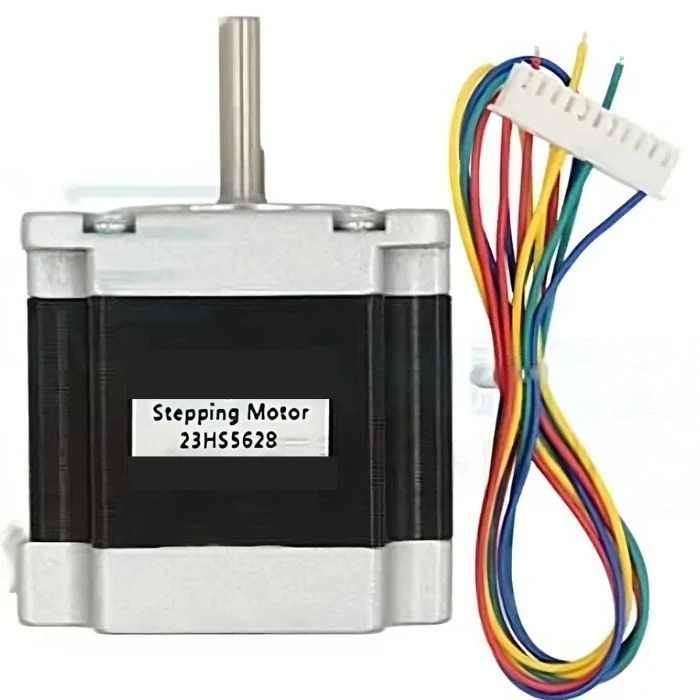

NEMA23 23HS5628 Stepper Motor is a powerful, reliable, and precision-engineered motor designed for demanding motion-control applications. Known for its high holding torque, accurate positioning, and robust construction, this motor is widely used in CNC machines, 3D printers, robotics, industrial automation, and mechatronic systems. With its standard NEMA 23 (57 mm) frame size, the 23HS5628 stepper motor ensures easy compatibility with a wide range of mounts, drivers, and mechanical assemblies.
Built to deliver smooth and consistent motion, the 23HS5628 bipolar stepper motor offers excellent performance at both low and moderate speeds, making it ideal for applications requiring precise control, repeatability, and durability.
NEMA23 23HS5628 Stepper Motor is a high-performance, two-phase hybrid stepper motor designed for applications that demand high torque, precise positioning, and reliable operation. Engineered with robust construction and optimized electromagnetic design, this motor is ideal for CNC machines, 3D printers, industrial automation, robotics, and motion control systems.
With its standard NEMA 23 frame size, the 23HS5628 stepper motor offers seamless compatibility with a wide range of motor mounts, drivers, and controllers. Its excellent torque-to-size ratio ensures smooth and accurate motion, even under demanding load conditions. Whether you are building a DIY CNC router or integrating motors into industrial equipment, this stepper motor delivers consistent performance and long service life.
Key Features of NEMA23 23HS5628 Stepper Motor
-
High Holding Torque: Provides strong torque output suitable for heavy-load applications
-
1.8° Step Angle: Ensures accurate positioning with 200 steps per revolution
-
NEMA 23 Standard Frame: Easy integration with existing mechanical systems
-
Bipolar Stepper Design: Compatible with popular stepper motor drivers
-
Low Noise & Smooth Operation: Delivers stable and vibration-free motion
-
High Reliability: Designed for continuous operation in industrial environments
-
Precision Shaft Alignment: Ideal for couplings, lead screws, and gearboxes
-
Excellent Heat Dissipation: Aluminum body improves thermal performance
Specifications – NEMA23 23HS5628 Stepper Motor
| Parameter | Specification |
|---|---|
| Motor Type | Bipolar Stepper Motor |
| Frame Size | NEMA 23 (57 × 57 mm) |
| Model Number | 23HS5628 |
| Step Angle | 1.8° ±5% |
| Steps per Revolution | 200 |
| Rated Current | 2.8 A per phase |
| Holding Torque | ~1.26 N·m (≈178 oz-in) |
| Rated Voltage | ~3.6 V |
| Phase Resistance | ~1.3 Ω |
| Phase Inductance | ~3.0 mH |
| Shaft Diameter | 8 mm |
| Shaft Type | Single Shaft |
| Number of Leads | 4-Wire |
| Body Length | Approx. 56 mm |
| Insulation Class | Class B |
| Operating Temperature | –20°C to +50°C |
Note: Specifications may vary slightly depending on manufacturer batch.
Applications of NEMA23 23HS5628 Stepper Motor
The NEMA23 23HS5628 stepper motor is designed for a wide range of precision motion-control applications, including:
CNC & Manufacturing
-
CNC routers and milling machines
-
Laser cutting and engraving machines
-
Automated drilling and positioning systems
Robotics & Mechatronics
-
Robotic arms and linear actuators
-
Pick-and-place machines
-
Automated guided systems
3D Printing & Prototyping
-
3D printers (X, Y, and Z axes)
-
Filament feeding mechanisms
-
Motion platforms
Industrial Automation
-
Conveyor belt positioning
-
Packaging and labeling machines
-
Valve and actuator control systems
DIY & Educational Projects
-
Motion-control experiments
-
Engineering lab projects
-
Automation training kits
Why Choose the NEMA23 23HS5628 Stepper Motor?
The 23HS5628 NEMA23 stepper motor stands out for its high torque-to-size ratio, consistent performance, and long service life. It offers excellent compatibility with popular stepper drivers such as TB6600, DM542, and similar controllers, making it a trusted choice for both professionals and hobbyists. Whether you’re building a CNC machine, upgrading a robotic system, or designing an industrial automation solution, this motor delivers precision, power, and reliability.
Package Includes:
1 x NEMA23 23HS5628 Stepper Motor
FAQ
1. Where can we buy this NEMA23 23HS5628 Stepper Motor?
This product is available online at https://aiiottech.in/product/nema23-23hs5628-stepper-motor/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103
2. When can I get this NEMA23 23HS5628 Stepper Motor after placing the order?
RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
Video Link: Nema23 23HS5628 4 Lead Nema 23 Stepper Motor
