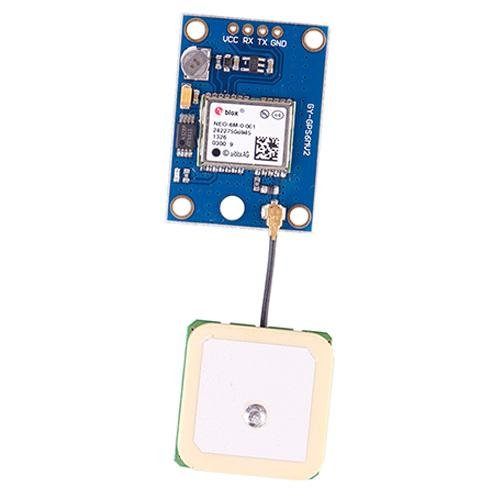

NEO 6M Module with Antenna and EEPROM is a compact, high-precision GPS receiver designed for reliable satellite navigation and positioning applications. Based on the proven NEO-6M GPS chipset, this module delivers fast location fixes, excellent sensitivity, and stable performance even in challenging environments. Integrated with an external ceramic antenna and onboard EEPROM, the SNEO 6M module is ideal for embedded systems, IoT devices, robotics, and tracking solutions.
With low power consumption, UART serial communication, and wide compatibility with popular microcontrollers such as Arduino, Raspberry Pi, ESP32, and STM32, the SNEO 6M GPS module is a preferred choice for both hobbyists and professional developers.
Key Features of NEO 6M Module with Antenna and EEPROM
-
High-Sensitivity GPS Receiver
Powered by the NEO-6M chipset, the module supports up to 50 channels for satellite tracking, ensuring accurate and stable positioning data. -
Integrated Ceramic Antenna
Comes with a high-gain ceramic patch antenna that enhances signal reception, enabling faster cold, warm, and hot starts. -
Onboard EEPROM
The built-in EEPROM stores configuration settings, allowing the module to retain parameters even after power cycling. -
Fast Time to First Fix (TTFF)
Provides quick startup times, reducing delays in position acquisition during operation. -
Low Power Consumption
Optimized for battery-powered and portable devices, making it suitable for long-term tracking applications. -
UART Serial Interface
Supports standard serial communication for easy integration with microcontrollers and development boards. -
Compact and Lightweight Design
Small form factor allows seamless integration into space-constrained embedded systems.
Specifications – NEO 6M GPS Module
| Parameter | Specification |
|---|---|
| GPS Chipset | NEO-6M |
| Frequency | L1, 1575.42 MHz |
| Channels | 50 tracking channels |
| Position Accuracy | ≤ 2.5 m CEP |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 30 ns RMS |
| Cold Start Time | ~27 seconds |
| Warm Start Time | ~27 seconds |
| Hot Start Time | ~1 second |
| Communication Interface | UART (TTL) |
| Baud Rate | Default 9600 bps |
| Operating Voltage | 3.3 V – 5 V |
| Operating Temperature | –40°C to +85°C |
| Antenna Type | Ceramic Patch Antenna |
| EEPROM | Onboard non-volatile memory |
Advantages of Using NEO 6M Module with EEPROM
The addition of EEPROM gives the SNEO 6M module a clear advantage over basic GPS modules. User-defined configurations such as update rate, baud rate, and NMEA sentence settings are preserved, eliminating the need for repeated configuration after power loss. This improves system reliability and reduces development time.
The external antenna ensures superior satellite lock performance compared to PCB-only antenna modules, making it suitable for outdoor and semi-indoor installations.
Applications of NEO 6M Module with Antenna and EEPROM
The NEO 6M GPS Module is widely used across multiple industries and projects, including:
-
Vehicle Tracking Systems
Accurate real-time location tracking for cars, bikes, buses, and fleet management systems. -
IoT and Smart Devices
Location-based IoT applications such as asset tracking, geofencing, and smart monitoring systems. -
Robotics and Drones
Provides precise positioning and navigation data for autonomous robots, rovers, and UAVs. -
Navigation and Mapping Systems
Used in GPS navigation devices and portable mapping solutions. -
Embedded Systems Projects
Ideal for academic projects, prototyping, and research applications involving location data. -
Wearable and Portable Devices
Suitable for handheld GPS devices and fitness or outdoor activity trackers.
Why Choose NEO 6M Module with Antenna and EEPROM?
The SNEO 6M Module with Antenna and EEPROM combines accuracy, reliability, and ease of integration in a cost-effective package. Its robust performance, configuration retention, and broad compatibility make it an excellent solution for both beginners and advanced developers.
Whether you are building a commercial GPS tracking system or experimenting with embedded navigation projects, this module offers dependable performance and long-term stability.
Upgrade your location-based projects with the NEO 6M GPS Module and achieve precise, reliable positioning every time.
Package Includes:
1 x NEO 6M Module with Antenna and EEPROM
FAQ
1. Where can we buy this NEO 6M Module with Antenna and EEPROM?
This product is available online at https://aiiottech.in/product/neo-6m-module-with-antenna-and-eeprom/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103
2. When can I get this NEO 6M Module with Antenna and EEPROM after placing the order?
RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
