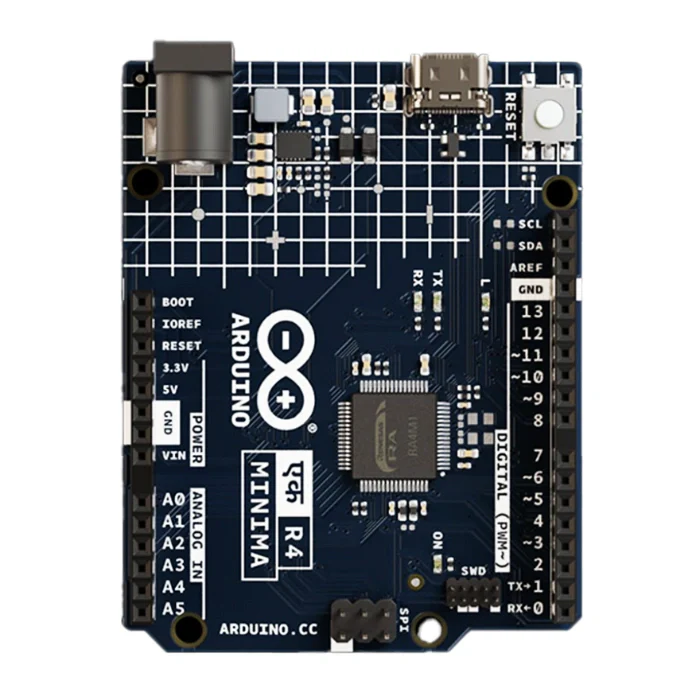

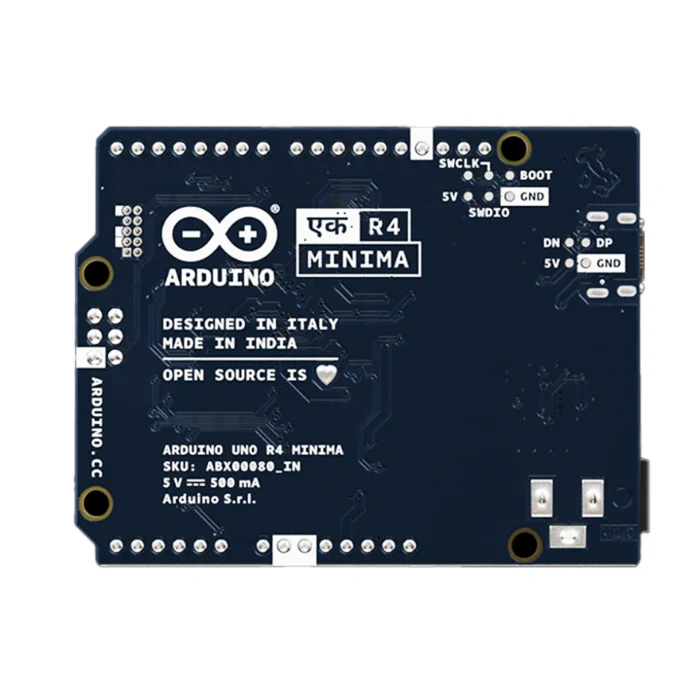

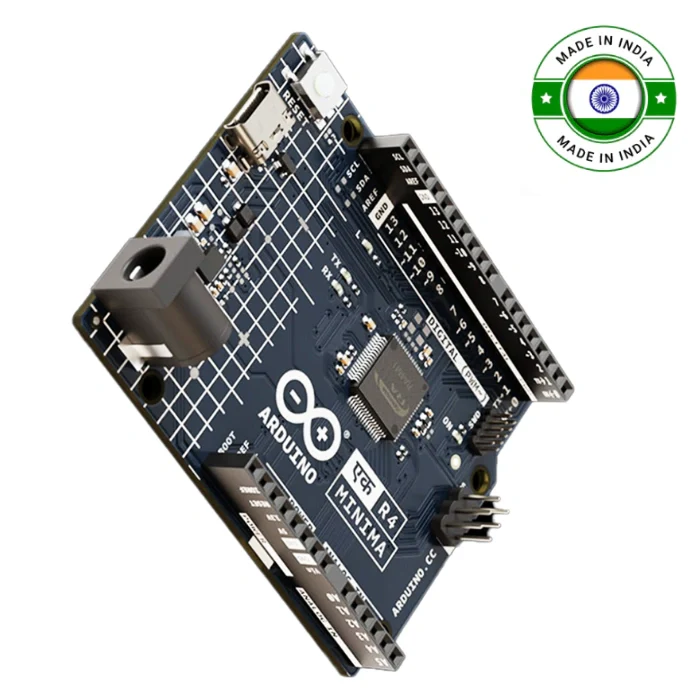

Official Arduino UNO EK R4 Minima

Official Arduino UNO EK R4 Minima is the latest evolution of the world’s most popular microcontroller board, engineered for makers, students, hobbyists, and professionals who demand higher performance and extended functionality. Designed as the successor to the UNO R3, the UNO R4 Minima comes with a powerful 32-bit Renesas RA4M1 microcontroller, enhanced processing speed, greater memory, improved peripherals, and backward compatibility with most existing shields and accessories. Whether you’re building IoT prototypes, automation systems, robotics projects, or interactive electronics, this board offers the reliability and efficiency you need for next-generation innovation.

Powered by a 48 MHz Arm® Cortex®-M4 processor, the UNO R4 Minima delivers a significant performance boost over the previous ATmega328P-based models. Its large Flash memory and expanded RAM allow more complex programs, sensor data handling, real-time control, and advanced computations. The board preserves the classic UNO form factor, ensuring seamless integration with a vast ecosystem of shields, libraries, and learning resources, making it ideal for both beginners and experienced developers.

The Arduino UNO R4 Minima also introduces modern interfaces including a 12-bit DAC, CAN bus, an OP-AMP, and improved power architecture, all while maintaining user-friendly features. Its robust design, excellent documentation, and official Arduino build quality make it the perfect choice for academic, industrial, and DIY electronics applications.

Key Features of Arduino UNO EK R4 Minima

• High-Performance 32-bit Cortex-M4 MCU:
  Equipped with a Renesas RA4M1 ARM Cortex-M4 running at 48 MHz, offering faster processing, enhanced precision, and efficient computation.

• Enhanced Memory Resources:
  Includes 256 KB Flash memory and 32 KB RAM—perfect for larger programs, complex tasks, and application expansion.

• Classic UNO Compatibility:
  Retains the traditional UNO R3 pin layout and form factor, ensuring compatibility with most shields and accessories.

• Advanced Analog Capabilities:
  Features a 12-bit DAC, 14-bit ADC, and an integrated operational amplifier for high-precision analog processing and external signal conditioning.

• CAN Bus Support:
  Enables communication in industrial networks, automotive systems, and robotics, opening new application possibilities.

• Improved Power Management:
  Operates efficiently via USB-C input with better voltage regulation and wider operating voltage range.

• On-Board Reset & Debug Options:
  Simplifies programming and debugging workflows for professionals and embedded developers.

• Full Arduino Ecosystem Support:
  Compatible with Arduino IDE 2.0, a vast library collection, examples, and community support.

Technical Specifications

• Microcontroller: Renesas RA4M1 Cortex-M4, 48 MHz

• Flash Memory: 256 KB

• SRAM: 32 KB

• Operating Voltage: 5 V

• Input Voltage (VIN): 6–24 V

• USB Interface: USB-C

• Digital I/O Pins: 14

• PWM Pins: 6

• Analog Input Pins: 6 (14-bit ADC)

• Analog Output: 1 (12-bit DAC)

• Communication Interfaces: UART, I²C, SPI, CAN

• Operating Temperature: −40°C to +85°C

• Dimensions: Standard UNO form factor

• Compatibility: Most UNO R3 shields and accessories

• On-board Peripherals: OP-AMP, Watchdog timer, Real-time clock support

Applications of Arduino UNO EK R4 Minima

• IoT Prototyping & Smart Devices
  Develop connected home appliances, sensor-based monitoring systems, and smart automation.

• Robotics & Automation
  Control motors, actuators, sensors, and communication systems with advanced speed and accuracy.

• Industrial and Automotive Projects
  Utilize CAN bus support for machine networking, diagnostics, and embedded industrial controls.

• STEM Education & Research
  Ideal for engineering students, classrooms, and labs requiring high-performance microcontroller experiments.

• Wearable Tech & Portable Devices
  Low-power architecture makes it suitable for battery-operated projects.

• Data Logging & Sensor Networks
  High-resolution ADC and large memory help in stable, long-term data acquisition.

• DIY Electronics & Maker Projects
  Perfect for hobbyists building custom gadgets, prototypes, and interactive electronics.
