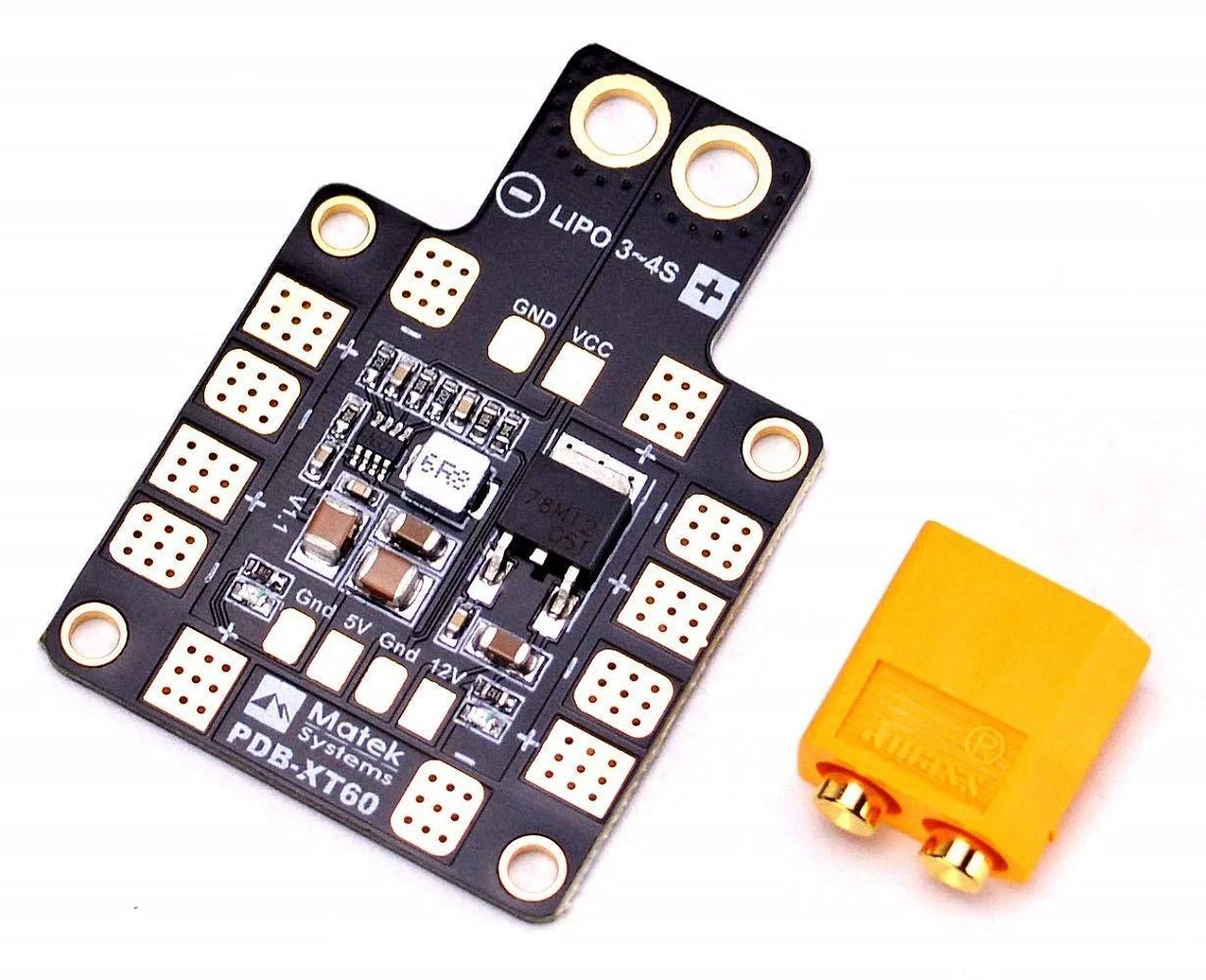

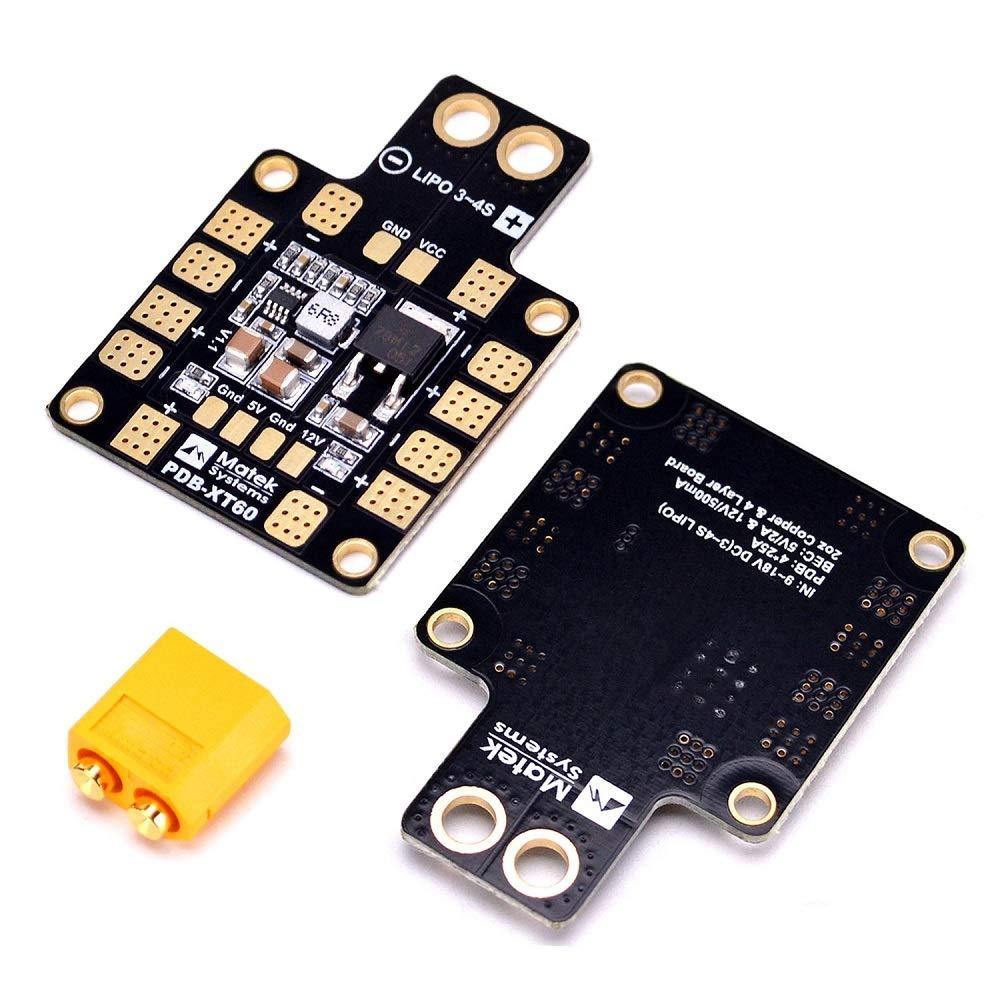

PDB-XT60 Power Distribution Board

PDB-XT60 Power Distribution Board is a compact, reliable, and high-performance power management solution designed specifically for multirotor drones, FPV racing drones, robotics projects, and DIY electronics. Built with high-quality copper traces and integrated XT60 connectors, this power distribution board ensures stable, low-resistance current flow to all your ESCs, motors, and auxiliary components. Whether you are assembling a quadcopter, upgrading your existing setup, or powering multiple modules in an embedded system, the PDB-XT60 offers the perfect balance of durability, safety, and convenience.

Engineered for hobbyists, drone builders, and professional UAV designers, this PDB simplifies wiring, reduces clutter, and enhances overall power efficiency. The onboard XT60 connector supports high-current LiPo batteries, while the additional solder pads provide seamless distribution to ESCs and peripheral devices. Designed to handle demanding flight conditions, the PDB-XT60 ensures reliable performance even under heavy loads, making it ideal for high-thrust motors and high-capacity LiPo batteries.

Key Features

1. Integrated XT60 Battery Input

The board includes a premium XT60 connector for secure and stable battery input, ensuring minimal resistance and excellent current handling for high-power drone applications.

2. High-Current Copper Traces

Designed with wide copper traces, the PDB delivers efficient current distribution to all ESCs, minimizing voltage drops and heat generation during operation.

3. Compact and Lightweight Design

Weighing only a few grams, this distribution board is perfect for lightweight multirotors and racing drones where every gram matters.

4. Multiple Output Pads

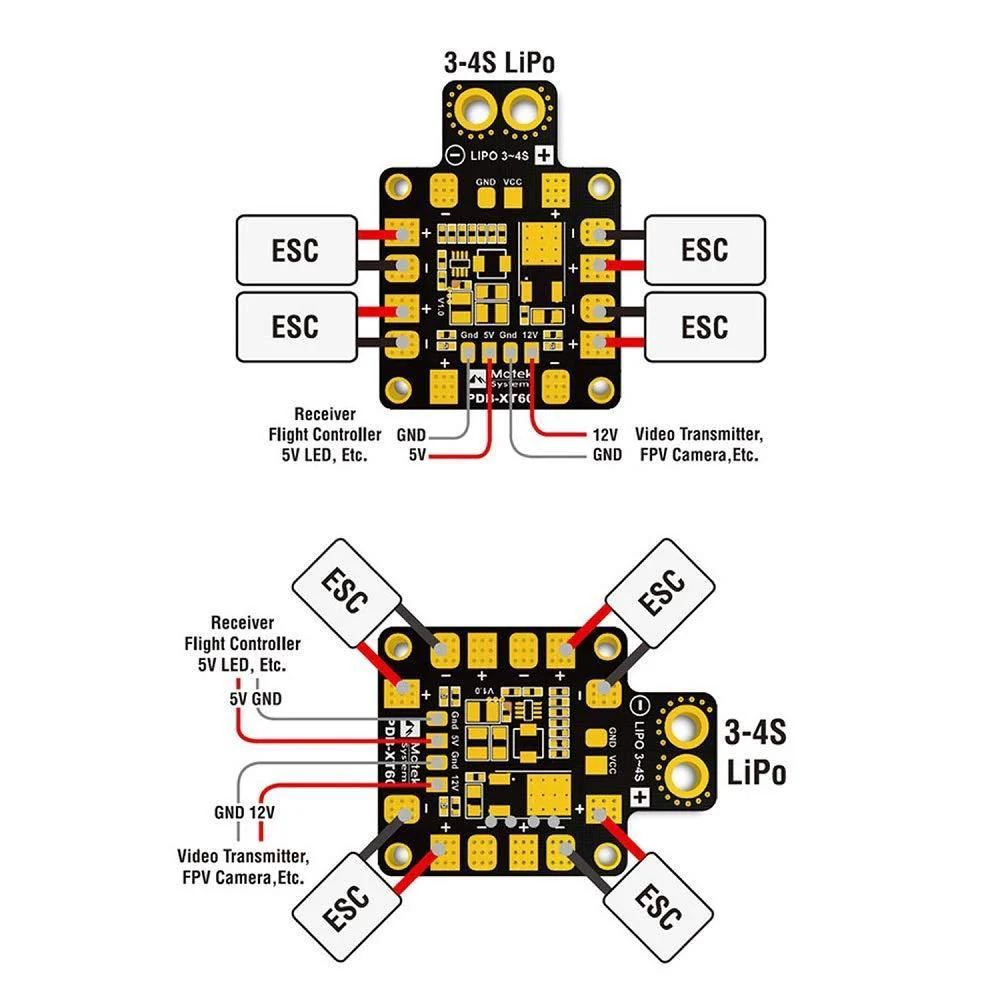

Equipped with multiple soldering pads for up to four ESCs or other electronic modules, offering flexibility for quadcopters, hexacopters, robots, and embedded systems.

5. Robust Build Quality

Made from high-temperature FR4 PCB material, the board is highly durable, vibration-resistant, and capable of withstanding demanding flight conditions.

6. Easy Soldering Layout

With well-spaced pads and clearly marked polarity, both beginners and experts can quickly set up their drone’s power system.

7. Versatile Compatibility

Supports 2S–6S LiPo batteries, making it suitable for a wide range of drone setups, brushless motors, FPV systems, and power-hungry add-ons.

8. Enhanced Safety

The XT60 connector reduces the risk of loose contacts and electrical arcing while ensuring secure locking and dependable power delivery.

Technical Specifications

• Model: PDB-XT60 Power Distribution Board

• Input Connector: XT60 Male

• Battery Support: 2S to 6S LiPo

• Material: Durable FR4 PCB

• Current Handling: Up to 60A continuous (dependent on setup)

• Outputs: 4 × ESC outputs (positive and negative pads)

• Trace Thickness: 2 oz copper

• Mounting Holes: Standard 30 × 30 mm spacing

• Dimensions: Approx. 36 × 36 mm

• Weight: Lightweight (typically around 5–8 g)

• Operating Temperature: -20°C to +80°C

• Polarity Markings: Clearly labeled for error-free wiring

Applications

1. Multirotor Drones

Perfect for quadcopters, hexacopters, octocopters, and custom UAV builds requiring efficient and stable power distribution.

2. FPV Racing Drones

Ideal for high-speed FPV builds, providing low-resistance power delivery for high-KV motors and improved flight performance.

3. Robotics Projects

Suitable for small robots, rovers, and autonomous vehicles that require distribution of power to multiple modules or controllers.

4. Embedded Electronics

Can be used in embedded systems, prototyping, and DIY electronics where multiple sensors, controllers, and modules need power from a single battery source.

5. RC Aircraft and Experimentation

Useful for RC planes, experimental aircraft projects, and power management systems in educational and hobby electronics.

Why Choose the PDB-XT60?

If you’re looking for a safe, reliable, and efficient power distribution solution, the PDB-XT60 offers outstanding value. Its compact size, robust design, and efficient power handling make it a preferred choice for drone builders and electronics enthusiasts. Reduce wiring complexity, improve performance, and ensure clean, stable power with this professional-grade distribution board.
