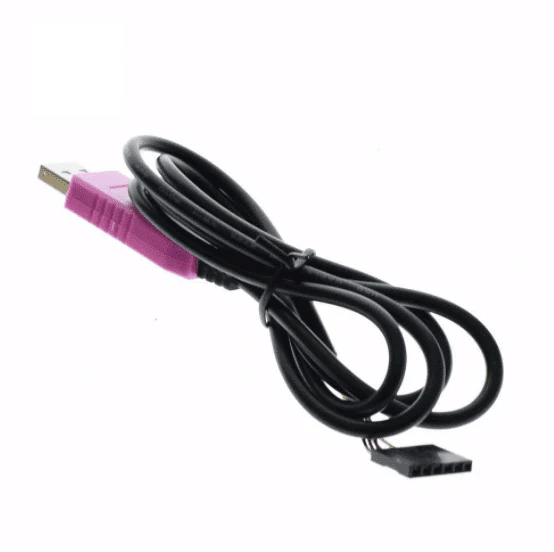

PL2303HXD 6Pin USB TTL RS232 Convert Cable

PL2303HXD 6Pin USB TTL RS232 Convert Cable is a reliable, high-speed interface cable designed to provide seamless communication between your computer’s USB port and TTL/RS232-based serial devices. Powered by the trusted Prolific PL2303HXD chipset, this cable ensures excellent compatibility, stable data transmission, and effortless connectivity for embedded systems, microcontrollers, modems, and various serial communication modules. Whether you are an electronics hobbyist, embedded engineer, educator, or technician, this USB-to-TTL converter cable is an indispensable tool for debugging, programming, testing, and serial communication tasks.

Engineered with precision and optimized for modern systems, the PL2303HXD cable supports Windows, Linux, and macOS operating systems without compromising on performance. Its 6-pin female header makes it versatile for a wide range of development boards, sensors, and serial-enabled devices. With built-in protection and industry-standard signaling, this cable offers efficiency, durability, and ease of use in both professional and educational environments.

Key Features of PL2303HXD 6Pin USB TTL RS232 Convert Cable

✔ High-Quality PL2303HXD Chipset

This cable uses an original Prolific PL2303HXD chipset, delivering fast, accurate, and stable data communication. It ensures compatibility with legacy and new serial devices, making it ideal for debugging and programming applications.

✔ USB to TTL + RS232 Dual Support

Unlike standard USB-TTL cables, this converter supports both TTL logic level and RS232 level, making it suitable for a broader range of serial devices.

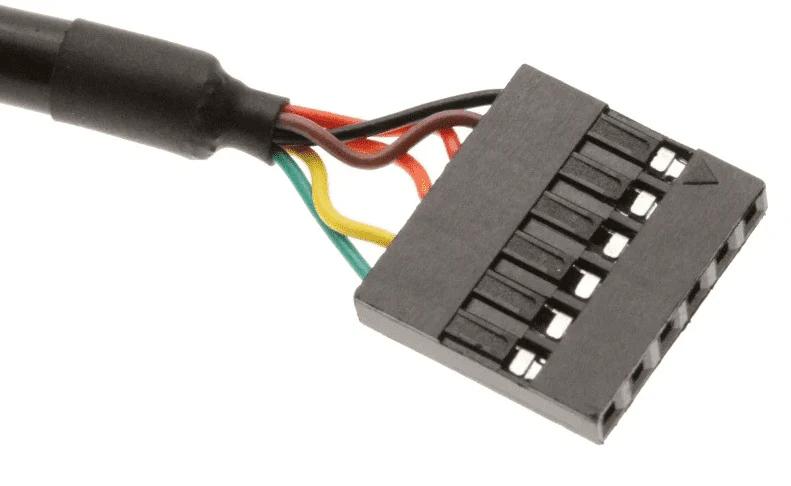

✔ 6-Pin Female Header Output

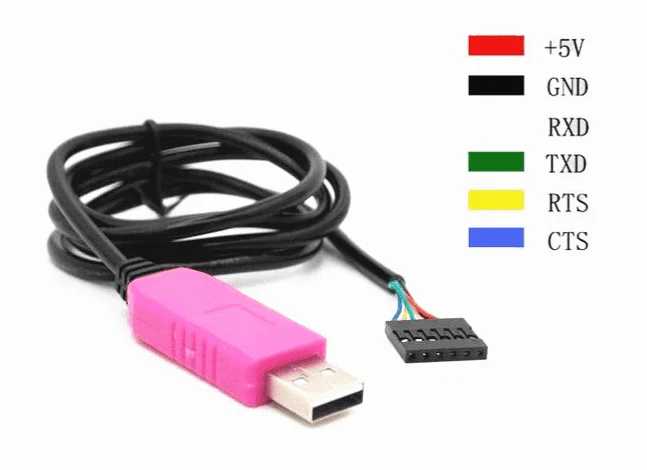

The 6-pin female connector includes essential lines such as:

• VCC

• GND

• TXD

• RXD

• RTS

• CTS

This provides maximum flexibility for connecting to development boards and UART-based devices.

✔ Wide OS Compatibility

Supports:

• Windows 7/8/10/11

• Linux distributions

• macOS

Most drivers install automatically, ensuring quick plug-and-play functionality.

✔ Stable and High-Speed Data Transfer

Provides reliable data transmission rates, suitable for applications requiring fast communication and real-time debugging.

✔ Built-in Protection

Integrated protection features include:

• Over-current protection

• USB power surge protection

• Signal integrity shielding

These ensure safe and uninterrupted performance.

✔ Durable & Flexible Cable Design

The cable is constructed with high-quality PVC insulation and flexible wire that withstands repeated bending, making it ideal for long-term use in labs, workshops, and field setups.

Specifications

Applications of PL2303HXD 6Pin USB TTL RS232 Convert Cable

1. Embedded System Programming

Ideal for programming and debugging microcontrollers such as:

• ARM

• AVR

• PIC

• ESP8266 / ESP32

• Arduino boards

2. Serial Communication with Sensors & Modules

Perfect for interfacing with GPS modules, GSM/GPRS modules, Bluetooth modules, and serial sensors.

3. Router & Modem Configuration

Used for configuring:

• Network routers

• Modems

• Access points
  — via their UART/RS232 interfaces.

4. Robotics & Automation Projects

Supports communication with motor controllers, PLC modules, robotic sensors, and industrial automation components.

5. Data Logging & Monitoring

Enables real-time serial data monitoring for industrial machines, environmental sensors, and research projects.

6. Educational & Laboratory Use

A valuable tool for students and engineers learning UART, RS232 communication, or embedded system development.

The PL2303HXD 6Pin USB TTL RS232 Convert Cable is a must-have for anyone working with embedded electronics, serial devices, or communication systems. With its high-quality PL2303 chipset, dual TTL/RS232 support, reliable data transfer, and robust design, it delivers exceptional value and performance for both beginners and professionals. Whether you’re debugging, programming, or conducting serial communication experiments, this cable ensures seamless, secure, and efficient connectivity.
