Raindrops Detection Sensor Module

Welcome to the future of weather monitoring with our cutting-edge Raindrops Detection Sensor Module. Whether you’re a meteorologist, agricultural enthusiast, or simply someone interested in keeping a close eye on weather patterns, our state-of-the-art sensor module is designed to deliver unparalleled accuracy and reliability. Embrace the power of real-time rain detection and enhance your understanding of environmental conditions with this innovative device.

The Raindrops Detection sensor module is used for rain detection. It is also for measuring rainfall intensity. Rain sensor can be used for all kinds of weather monitoring and translated into output signals and AO.

It can be used to monitor a variety of weather conditions and turned into several fixed output signal and Analog output. It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V.

The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp.

Special Features of Raindrops Detection Sensor Module:

1. The LM393, use of the wide voltage comparator
2. Provide both digital and analog output
3. Output LED indicator
4. Compatible with Arduino
5. TTL Compatible
6. With potentiometer sensitivity adjustment
7. The output format: digital switch output (0 and 1) and analog AO voltage output;
8. Has a fixed bolt hole, convenient installation

Key Features of Raindrops Detection Sensor Module:

• High Precision Rain Detection: Our Raindrops Detection Sensor Module employs advanced technology to provide precise and real-time data on rain intensity. With high sensitivity and accuracy, it ensures you stay informed about changes in weather conditions, enabling better decision-making.
• Versatility in Applications: This sensor module isn’t limited to meteorological use alone. Its versatility makes it suitable for a wide range of applications, including smart home systems, irrigation control, and industrial automation. Monitor rainfall to optimize watering schedules for your garden or automate processes based on weather conditions.
• Advanced Sensing Technology: Utilizing state-of-the-art sensing technology, our module is equipped with a high-quality rain sensor that can detect even the slightest raindrops. The module’s sensitivity is adjustable, allowing you to customize it based on your specific needs and the environment in which it operates.
• Real-Time Data Transmission: Stay connected with your data wherever you are. The Raindrops Detection Sensor Module features seamless real-time data transmission capabilities, ensuring that you receive up-to-the-minute information on rainfall patterns directly to your connected devices.
• Easy Integration with IoT Platforms: Embrace the era of the Internet of Things (IoT) with our sensor module. It seamlessly integrates with popular IoT platforms, enabling you to incorporate rain data into your existing smart systems effortlessly. Enhance automation, data analysis, and decision-making processes with ease.
• Weatherproof Design: Engineered to withstand the elements, our sensor module boasts a robust and weatherproof design. Rain or shine, it continues to deliver accurate data, making it an ideal choice for outdoor applications and installations.
• Low Power Consumption: Efficiency is key, and our Raindrops Detection Sensor Module understands that. With low power consumption, this device ensures a longer operational life, reducing the need for frequent maintenance and battery replacements.
• User-Friendly Interface: Setting up and monitoring the Raindrops Detection Sensor Module is a breeze, thanks to its user-friendly interface. Access data easily through a dedicated app or integrate it into your existing software effortlessly. No need for complex installations or technical expertise.
• Scalability and Customization: Whether you’re a small-scale hobbyist or a large-scale industrial user, our sensor module is scalable to meet your needs. Customize the settings, adjust the sensitivity, and scale up as your requirements grow.
• Enhanced Data Analysis: Dive deeper into rainfall patterns with our sensor module’s enhanced data analysis capabilities. Gain insights into historical data, trends, and anomalies, facilitating better planning and decision-making.

Applications of Raindrops Detection Sensor Module:

The Raindrops Detection Sensor Module is a versatile device with applications across various industries and scenarios. Its high precision, real-time data transmission, and adaptability make it a valuable tool for a wide range of purposes. Here are some key applications of the Raindrops Detection Sensor Module:

• Meteorology and Weather Forecasting: The primary application of the Raindrops Detection Sensor Module is in meteorology. Meteorological stations and weather monitoring agencies use these sensors to collect accurate data on rainfall intensity and patterns. This information is crucial for weather forecasting, predicting storms, and issuing timely warnings to the public.
• Agriculture and Irrigation: Farmers and agriculturalists can benefit significantly from the Raindrops Detection Sensor Module. By monitoring rainfall, farmers can optimize irrigation schedules, ensuring crops receive the right amount of water. This helps in conserving water resources, preventing overwatering, and improving overall crop yield.
• Smart Home Systems: Integrating the Raindrops Detection Sensor Module into smart home systems allows homeowners to automate various functions based on real-time weather data. For example, it can trigger the closing of windows or adjusting the irrigation system, contributing to energy efficiency and overall home automation.
• Flood Monitoring and Early Warning Systems: In areas prone to flooding, the sensor module plays a crucial role in monitoring rainfall and river levels. When combined with other environmental sensors, it can contribute to the development of early warning systems, helping authorities and residents prepare for potential floods and mitigate damage.
• Industrial Automation: Industries that rely on specific weather conditions for their operations, such as construction, can use the Raindrops Detection Sensor Module to optimize workflows. It can help schedule outdoor activities, protect machinery from water damage, and ensure employee safety by providing real-time weather updates.
• Environmental Research and Studies: Researchers and environmentalists use raindrop data collected by these sensors for various studies. Understanding rainfall patterns contributes to research on climate change, ecosystem dynamics, and water resource management, providing valuable insights for environmental conservation efforts.
• Water Resource Management: Municipalities and water management authorities can use the Raindrops Detection Sensor Module to monitor rainfall and make informed decisions about water resource allocation. This aids in planning for droughts or excess rainfall, optimizing water distribution, and managing water reservoirs more effectively.
• Construction Site Management: Construction projects often depend on favorable weather conditions. The Raindrops Detection Sensor Module can be employed on construction sites to monitor rain and weather changes. This information helps project managers plan work schedules, protect equipment, and ensure the safety of workers.
• Traffic and Transportation Management: In urban areas, the sensor module can contribute to traffic and transportation management. By detecting rain in real-time, authorities can implement strategies to improve road safety, manage traffic flow, and reduce the risk of accidents during adverse weather conditions.
• Sports and Events Planning: Event organizers, especially for outdoor events and sports, can use the Raindrops Detection Sensor Module to monitor weather conditions. This helps in making informed decisions about event scheduling, ensuring the safety of participants and attendees.

Package Includes :

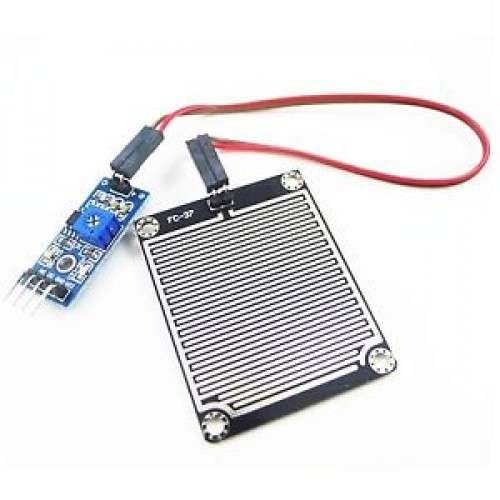

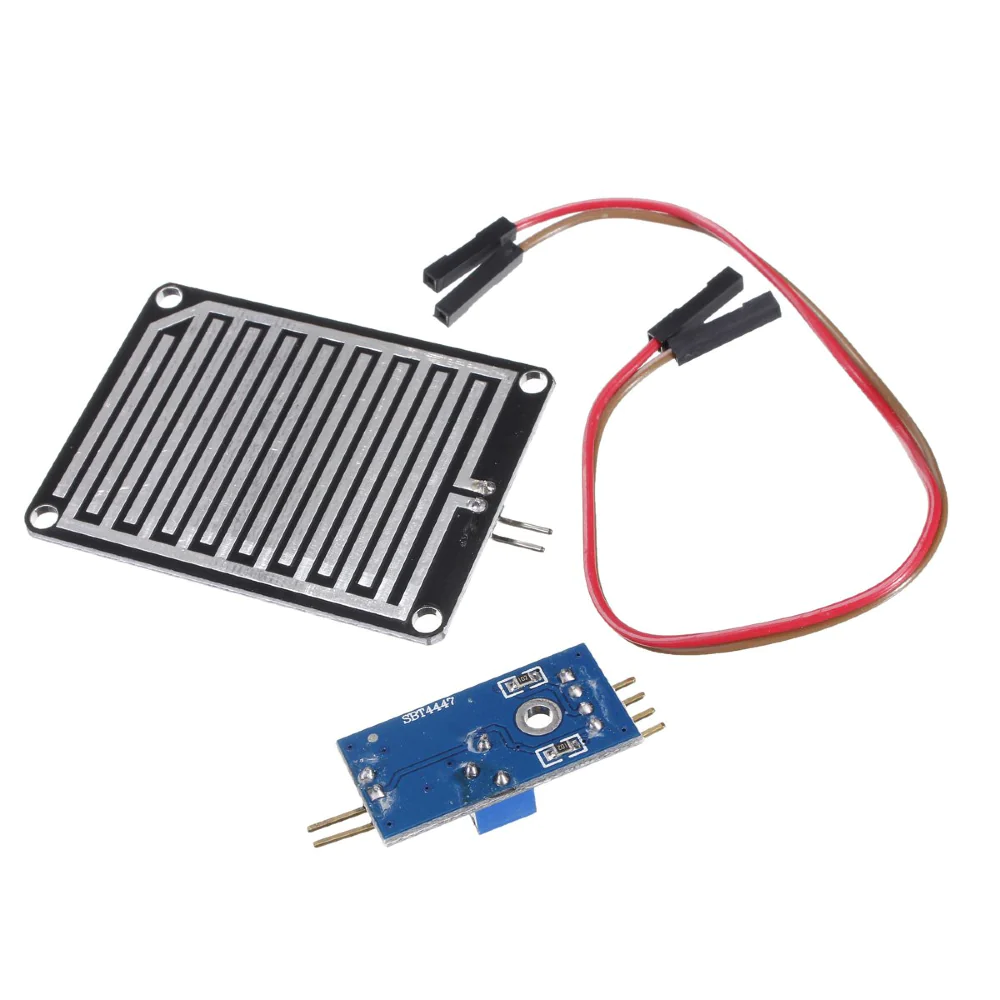

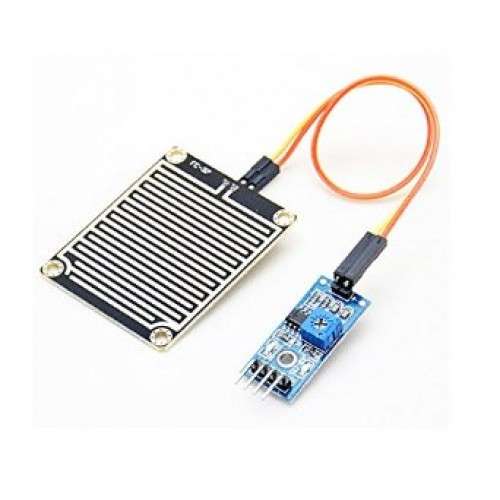

1 x Printed Circuit Board for Rain Water Collection

1 x Control Board with LM393 Voltage Comparator

A 5-Wire Dupont Cable
