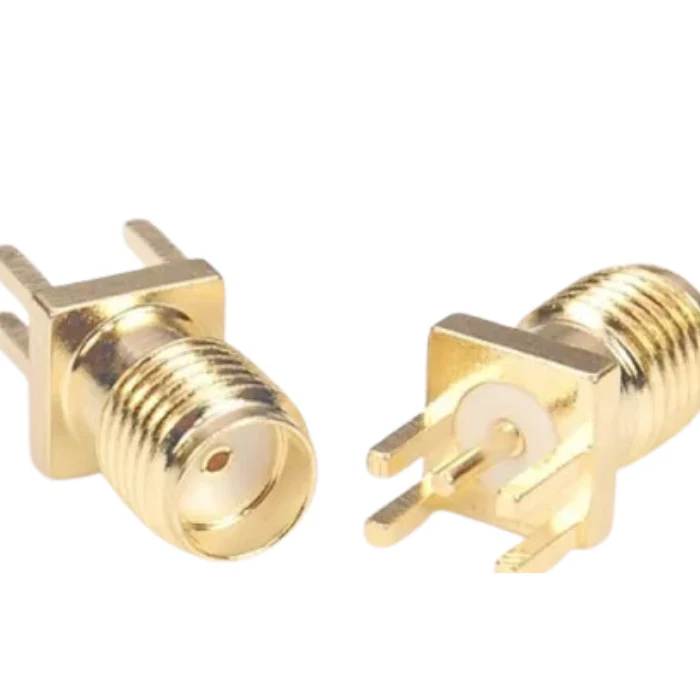

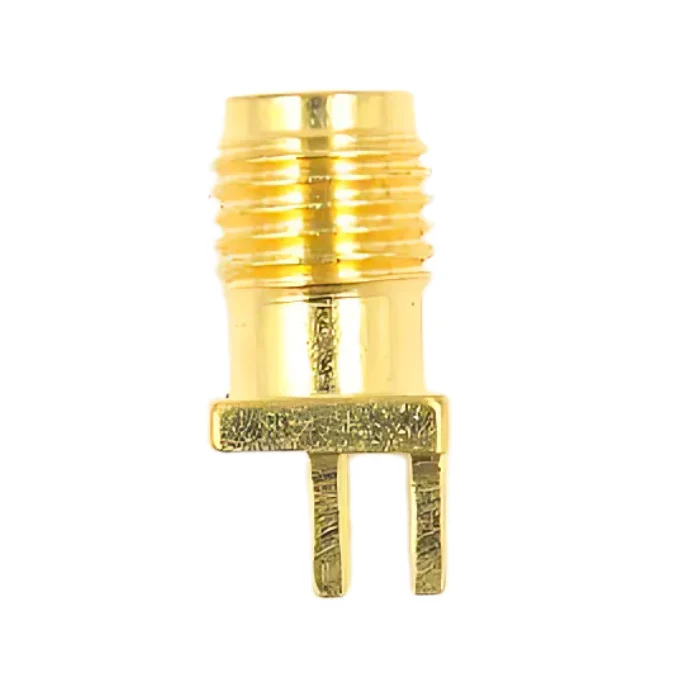

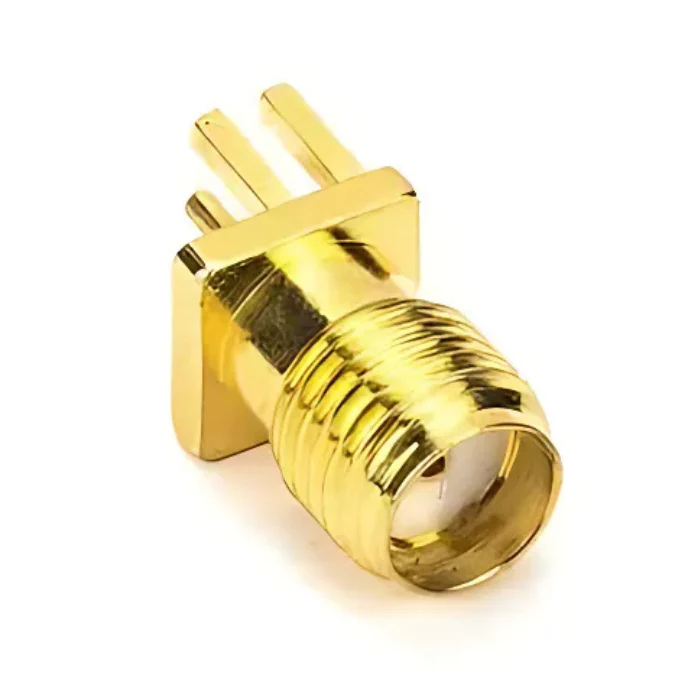

SMA Straight Edge Female Connector (For 1.6mm PCB)

SMA Straight Edge Female Connector is a precision-engineered RF coaxial connector designed to deliver excellent electrical performance, mechanical stability, and long-term reliability. Widely used in high-frequency and microwave applications, this connector is ideal for PCB edge mounting where space efficiency, signal integrity, and durability are critical. With its compact design and robust construction, it is an essential component for modern RF communication systems.

Designed to support frequencies up to 18 GHz, the SMA female straight edge mount connector ensures low signal loss, stable impedance, and excellent return loss. Its edge-mount configuration allows direct mounting on the edge of printed circuit boards, making it suitable for high-density electronic designs and high-speed RF signal transmission.

Key Features of SMA Straight Edge Female Connector

• High-Frequency Performance
  Supports RF and microwave signals up to 18 GHz, ensuring reliable signal transmission with minimal loss.

• Edge-Mount Design
  Straight edge-mount configuration allows secure PCB mounting without drilling holes, saving space and simplifying installation.

• Excellent Signal Integrity
  Maintains a consistent 50-ohm impedance, minimizing reflections and ensuring superior RF performance.

• Durable Construction
  Made with high-quality brass body and gold-plated contacts for corrosion resistance and long service life.

• Low Insertion Loss & VSWR
  Designed to deliver low insertion loss and excellent voltage standing wave ratio for efficient RF communication.

• Compact & Lightweight
  Ideal for space-constrained applications such as RF modules, test equipment, and embedded systems.

• Industry-Standard SMA Interface
  Compatible with standard SMA male connectors, cables, and RF equipment.

Specifications

• Connector Type: SMA

• Gender: Female

• Mounting Style: Straight Edge Mount

• Impedance: 50 Ohms

• Frequency Range: DC to 18 GHz

• Body Material: Brass

• Contact Material: Brass

• Plating: Gold-plated contact, nickel-plated body

• Dielectric Material: PTFE (Teflon)

• VSWR: ≤ 1.2 (typical)

• Insertion Loss: Low insertion loss for high-frequency signals

• Operating Temperature: –40°C to +85°C

• Mechanical Life: ≥ 500 mating cycles

Applications

The SMA Connector Female Straight Edge Mount is widely used across industries where reliable RF signal transmission is required:

• RF & Microwave Communication Systems
  Ideal for antennas, RF transceivers, and wireless communication modules.

• Telecommunication Equipment
  Used in base stations, signal boosters, and network testing devices.

• Embedded Systems & IoT Devices
  Suitable for compact PCB-based designs requiring stable RF connections.

• Test & Measurement Equipment
  Commonly used in spectrum analyzers, signal generators, and RF test boards.

• Aerospace & Defense Applications
  Reliable performance in high-frequency and mission-critical environments.

• GPS, WLAN & Bluetooth Modules
  Ensures strong and consistent RF connections in navigation and wireless systems.

• Research & Development Prototyping
  Preferred choice for RF engineers during PCB design and signal testing.

Why Choose This SMA Straight Edge Female Connector?

This SMA Straight Edge Female Connector offers an excellent balance of performance, durability, and ease of installation. Its precision design ensures stable electrical characteristics even at high frequencies, making it ideal for professional RF applications. The edge-mount configuration allows for clean PCB layouts and reliable mechanical support, reducing assembly time and improving overall system performance.

Whether you are designing RF modules, wireless devices, or test equipment, this connector provides consistent results and long-term reliability. Its compatibility with standard SMA cables and accessories makes it a versatile choice for both prototyping and production-level applications.

Package Includes:

1 x SMA Straight Edge Female Connector for 1.6mm PCB

FAQ

1. Where can we buy this SMA Straight Edge Female Connector?

This product is available online at https://aiiottech.in/product/sma-connector-female-straight-edge-mount/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this SMA Straight Edge Female Connector after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
