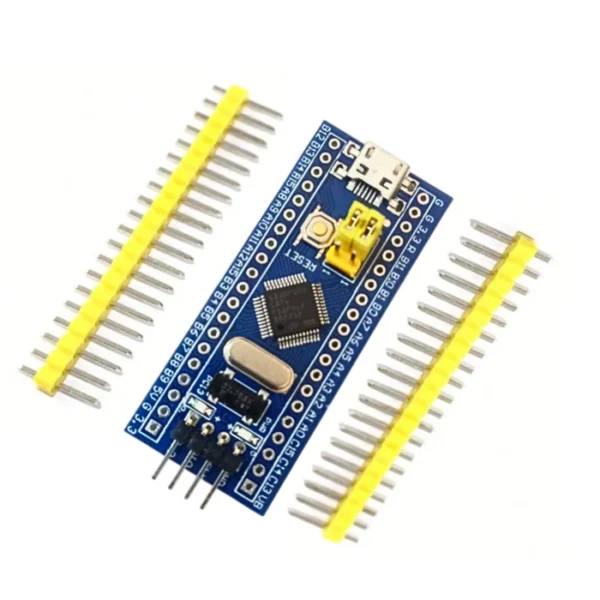

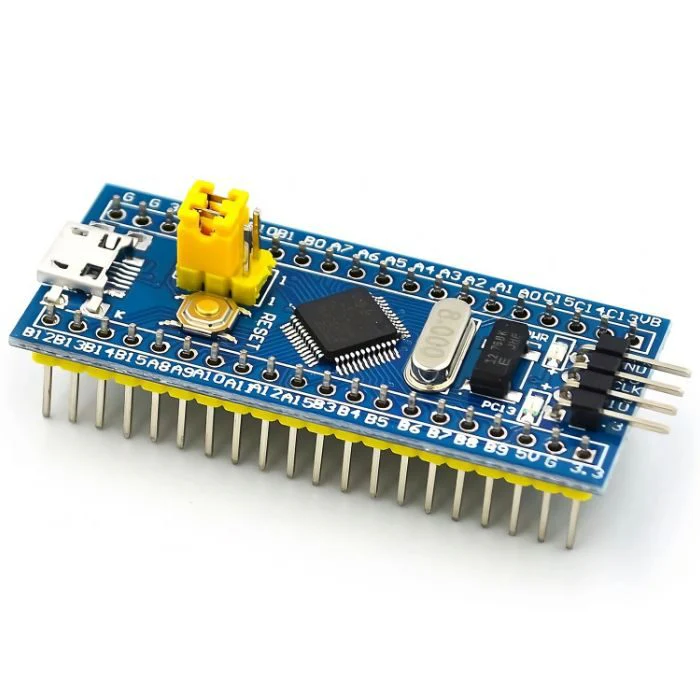

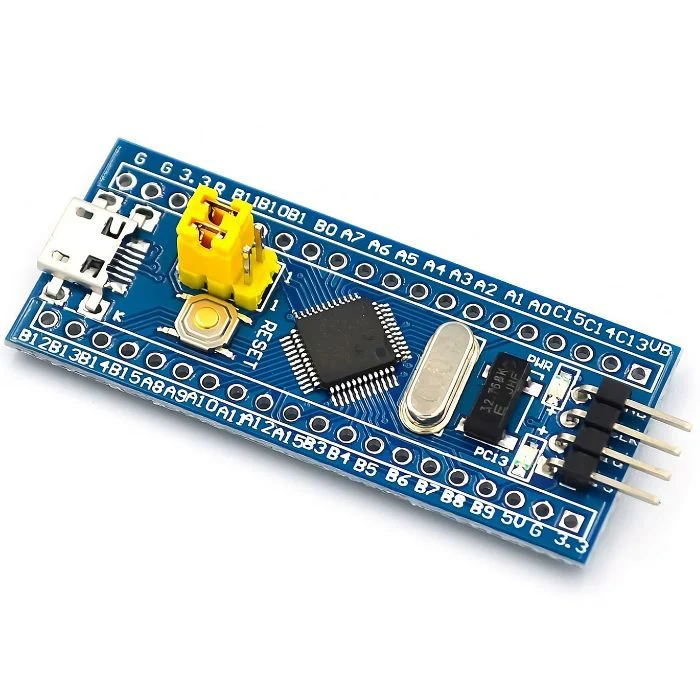

STM32F103C8T6 ARM Development Board

STM32F103C8T6 ARM Development Board, popularly known as the Blue Pill, is a powerful, cost-effective, and highly versatile microcontroller board designed for students, hobbyists, and professional embedded engineers. Built around the STM32F103C8T6 ARM Cortex-M3 32-bit MCU, this board delivers an exceptional balance of speed, efficiency, and peripheral support—making it ideal for a wide range of real-time and automation applications.

Whether you are developing IoT devices, robotic systems, sensor interfaces, or industrial controllers, the STM32F103C8T6 board provides the computing performance, reliability, and flexibility needed to bring your ideas to life. Its compact design, rich peripheral set, and easy programming support make it a preferred choice over traditional 8-bit microcontrollers like AVR and PIC.

⭐ Specifications

Microcontroller

• MCU: STM32F103C8T6

• Core: ARM Cortex-M3 (32-bit RISC)

• CPU Speed: Up to 72 MHz

• Flash Memory: 64 KB / 128 KB (varies by manufacturer)

• SRAM: 20 KB

Operating Parameters

• Operating Voltage: 3.3V

• I/O Voltage: 3.3V (5V tolerant pins)

• Clock Sources:

  • 8 MHz external crystal

  • 32.768 kHz RTC crystal

• Boot Modes:

  • Flash

  • System Memory (Serial bootloader)

  • SRAM

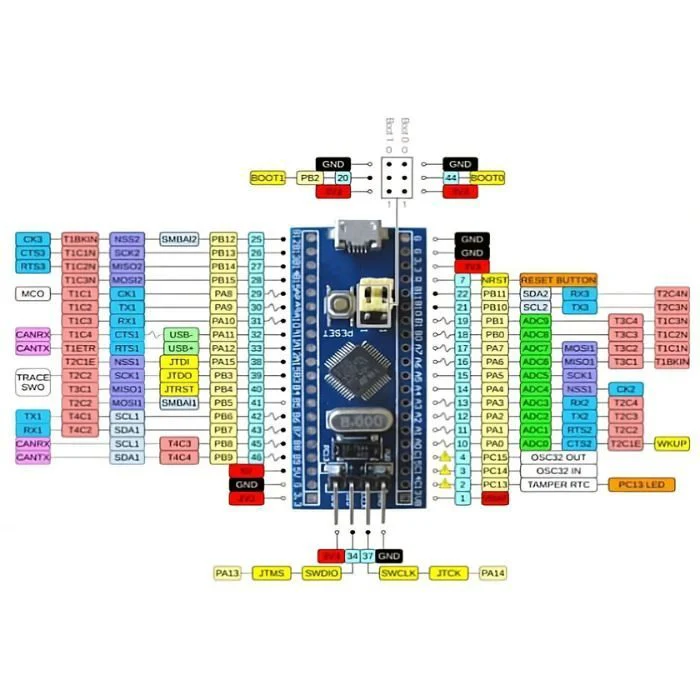

Connectivity & Interfaces

• Digital I/O Pins: 37

• Timers: 7 (General-purpose + Advanced)

• Communication Interfaces:

  • 2× I2C

  • 3× SPI

  • 2× USART

  • 1× USB 2.0 Full Speed

  • CAN Interface

  • JTAG/SWD for programming & debugging

• Analog Inputs: 10 × 12-bit ADC channels

Power & Dimensions

• Power Supply: 5V (USB or external) / 3.3V regulated

• On-board regulators: AMS1117-3.3

• Board Size: 53 mm × 22 mm

⭐ Key Features

✔ High Processing Performance

Powered by the 72 MHz Cortex-M3 core, the development board offers excellent real-time processing capability, making it ideal for motor control, data acquisition, and complex embedded tasks.

✔ Rich Peripheral Support

With USB, SPI, I2C, USART, CAN, PWM, and ADC built-in, the board is equipped to communicate with a wide variety of sensors, modules, and external devices.

✔ Low Power Consumption

Built on ARM’s highly efficient architecture, the STM32F103C8T6 ensures optimal power usage—perfect for battery-powered and portable projects.

✔ Easy Programming & Debugging

Supports:

• ST-Link V2

• J-Link

• USB to Serial (via Bootloader mode)

• Arduino IDE (STM32 Core)

• PlatformIO

• Keil, IAR, STM32CubeIDE

✔ Compact & Affordable

Despite its powerful specs, the board remains lightweight, small in size, and budget-friendly, making it ideal for commercial, educational, and personal use.

✔ Flexible Bootloader Options

The board allows programming through UART or SWD, providing flexibility for rapid prototyping and firmware updates.

⭐ Applications

The STM32F103C8T6 ARM Development Board can be used across a wide variety of embedded and industrial applications:

🔹 Internet of Things (IoT)

• Wi-Fi & Bluetooth IoT nodes

• Smart home automation

• Cloud-connected sensor modules

🔹 Robotics & Mechatronics

• Motor control systems (PWM-based)

• Line-following or autonomous robots

• Servo and stepper control

🔹 Industrial Automation

• Data logging and acquisition

• Industrial communication interfaces (CAN, UART)

• Factory monitoring systems

🔹 Wearables & Portable Devices

• Low-power portable gadgets

• Health monitoring devices

• Fitness trackers

🔹 Embedded System Education

• Ideal for engineering students

• ARM Cortex-M programming

• RTOS learning and prototyping

🔹 Consumer Electronics Prototyping

• Custom controllers

• Smart gadgets

• Interactive electronic products

Why Choose the STM32F103C8T6 Development Board?

Offering outstanding processing speed, a rich set of peripherals, low power consumption, and easy integration with popular development environments, the STM32F103C8T6 ARM Development Board is a future-ready platform for both beginners and professionals. Its flexibility, reliability, and affordability make it one of the most preferred ARM development boards in the embedded ecosystem.
