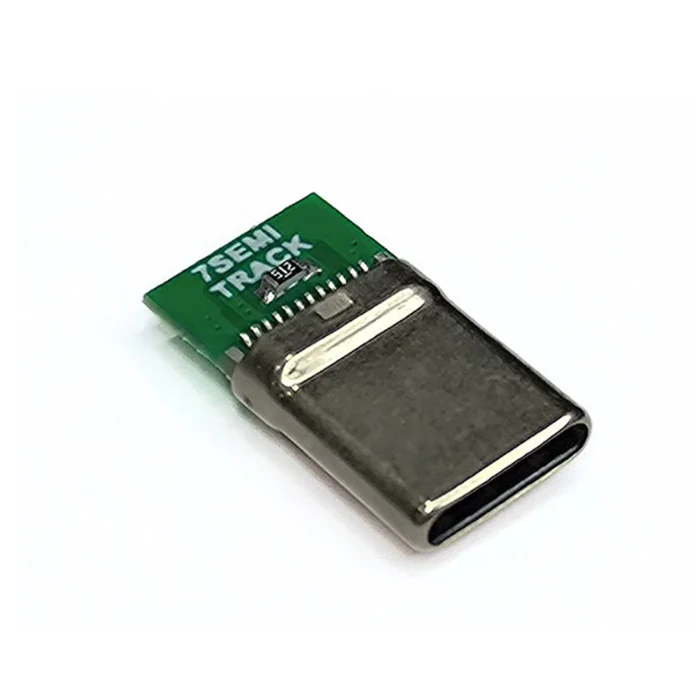

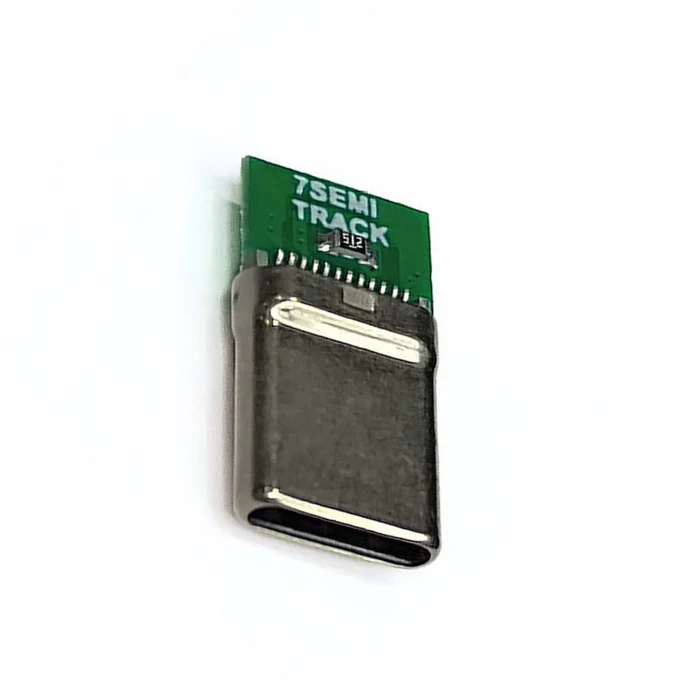

USB Type C 4 Pin PCB Male Breakout Board

USB Type C 4 Pin PCB Male Breakout Board is a compact and reliable solution for engineers, hobbyists, and product developers who require easy access to USB-C power and basic signal connections in their electronic designs. Designed for rapid prototyping, testing, and integration, this breakout board exposes the essential USB Type-C pins on a clearly labeled PCB, allowing quick and secure wiring without the need for complex surface-mount soldering.

With the widespread adoption of USB Type-C across smartphones, laptops, power adapters, and embedded systems, this breakout board provides a convenient way to harness USB-C functionality for power delivery, charging circuits, and low-speed data applications. Its male USB-C connector plugs directly into a USB-C port, making it ideal for powering development boards, microcontroller projects, and custom electronics.

Key Features of USB Type C 4 Pin PCB Male Breakout Board

• USB Type-C Male Connector
  Standard USB-C male interface compatible with modern USB-C power adapters, laptops, and power banks.

• 4-Pin Breakout Design
  Exposes essential pins such as VBUS, GND, and data lines, simplifying power and basic signal access.

• Easy Prototyping & Testing
  Clearly labeled PCB pads enable quick soldering of wires, headers, or connectors for rapid development.

• Compact & Lightweight PCB
  Small form factor makes it ideal for space-constrained designs and portable electronics projects.

• Reliable Power Connectivity
  Suitable for 5V power input from USB-C sources for powering microcontrollers and embedded systems.

• Durable PCB Construction
  High-quality FR-4 PCB ensures mechanical strength, stable electrical performance, and long-term reliability.

• Beginner-Friendly & Professional Use
  Perfect for students, hobbyists, makers, and professionals working on USB-powered circuits.

Technical Specifications – USB Type C 4 Pin PCB Male Breakout Board

• Connector Type: USB Type-C Male

• Number of Pins: 4

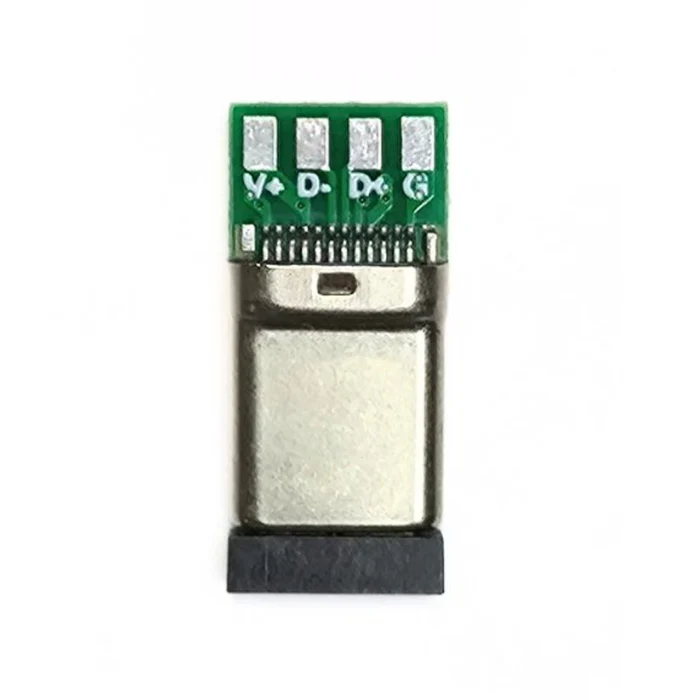

• Pin Breakout: VBUS, GND, D+, D- (or equivalent basic pin configuration)

• Rated Voltage: 5V (USB standard)

• Current Handling: Up to 3A (depending on PCB trace and cable quality)

• PCB Material: FR-4

• Mounting Type: Through-hole solder pads

• Orientation: Male plug

• Board Size: Compact, small footprint

• Operating Temperature: –20°C to +70°C

• Compliance: USB Type-C standard (basic power mode)

Note: This breakout board is designed for basic USB-C power and signal access and does not support advanced USB-C Power Delivery (PD) negotiation unless additional circuitry is used.

Applications of USB Type C 4 Pin PCB Male Breakout Board

The USB Type C 4 Pin PCB Male Breakout Board is widely used in a variety of electronic and embedded applications, especially where USB-C power input is required without complex circuitry.

Common Applications Include:

• Microcontroller & Development Boards
  Power Arduino, ESP32, Raspberry Pi Pico, STM32, and other development boards using a USB-C source.

• DIY Electronics & Prototyping
  Ideal for breadboard experiments, custom PCBs, and rapid hardware prototyping.

• USB-Powered Devices
  Use as a power input module for small gadgets, IoT devices, and portable electronics.

• Educational & Training Projects
  Excellent for teaching USB-C basics, power connections, and PCB interfacing in labs and classrooms.

• Testing & Debugging
  Quickly connect USB-C power during circuit testing, fault diagnosis, and validation.

• Product Development & R&D
  Useful for early-stage product designs that require a compact USB-C power interface.

Why Choose This USB Type C 4 Pin PCB Male Breakout Board?

This breakout board offers a simple, cost-effective, and reliable way to integrate USB Type-C connectivity into your projects. By exposing only the essential pins, it eliminates complexity while maintaining compatibility with modern USB-C power sources. Its compact design, ease of use, and robust construction make it an excellent choice for both beginners and experienced engineers.

Whether you are developing a new USB-powered product or experimenting with embedded systems, the USB Type C 4 Pin PCB Male Breakout Board provides a clean and efficient interface for your power and prototyping needs.

Package Includes:

1 x USB Type C 4 Pin PCB Male Breakout Board

FAQ

1. Where can we buy this USB Type C 4 Pin PCB Male Breakout Board?

This product is available online https://aiiottech.in/product/usb-type-c-4-pin…e-breakout-board/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this USB Type C 4 Pin PCB Male Breakout Board after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: USB Type-C Breakout Board Explained
