USB Type-C Connector Breakout (Female)

USB Type-C Connector Breakout is a compact and versatile interface board designed to simplify access to USB-C signals for electronics prototyping, testing, and embedded system development. As USB Type-C becomes the industry standard for power delivery and data connectivity, this breakout board provides engineers, students, and hobbyists with a reliable and convenient way to integrate USB-C into custom circuits and projects.

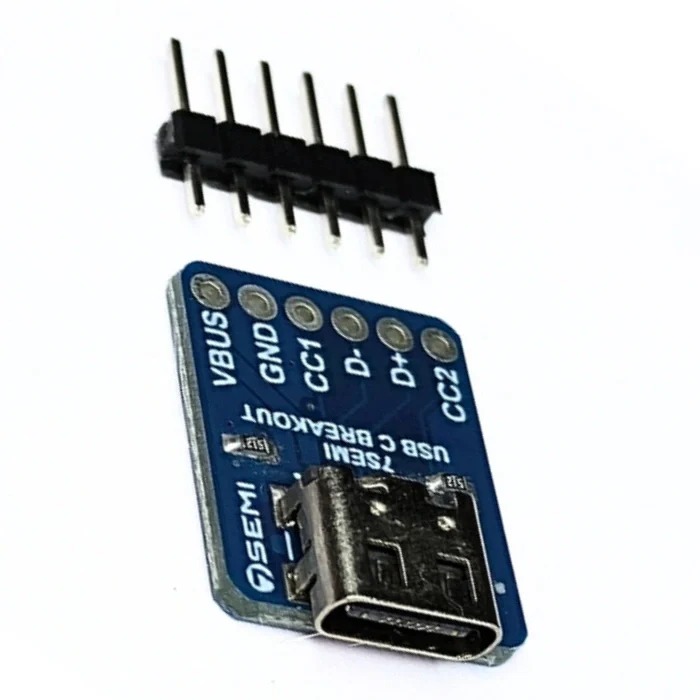

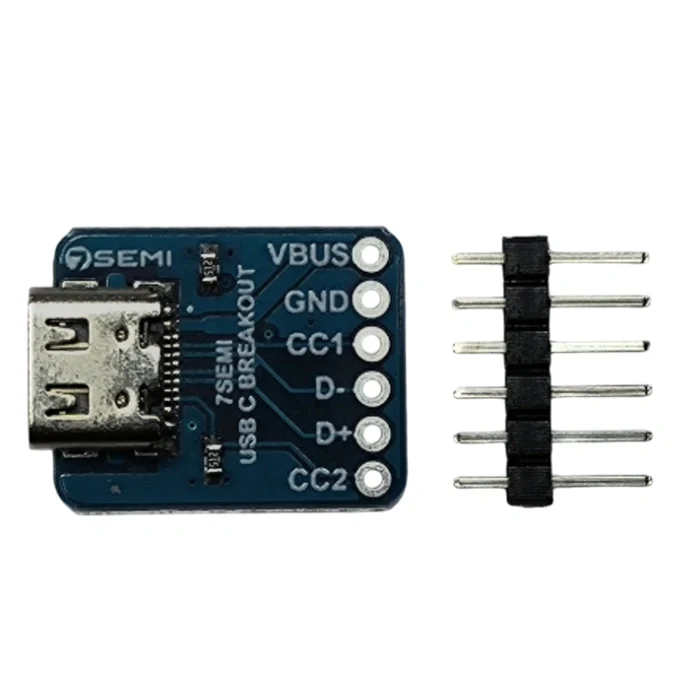

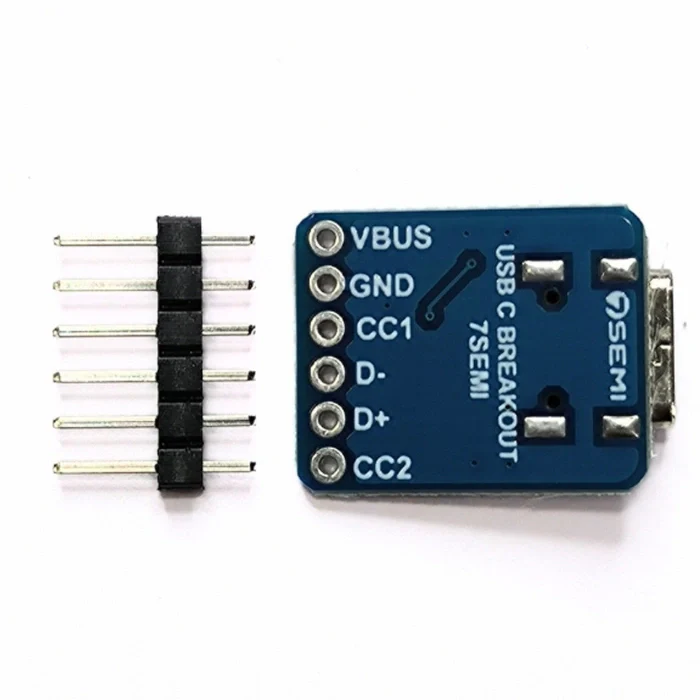

This breakout board features a female USB Type-C connector mounted on a high-quality PCB with clearly labeled pads or pins for easy soldering. It allows safe and organized access to essential USB-C signals such as VBUS, GND, D+, D-, CC pins, and configuration lines, making it ideal for experimenting with USB power, charging circuits, and low-speed data communication.

Whether you are developing a USB-powered device, testing power delivery lines, or building custom electronics, the USB Type-C Connector Breakout (Female) offers a practical and space-saving solution.

Key Features of USB Type-C Connector Breakout

• Standard USB Type-C Female Connector
  Supports modern USB-C cables, ensuring compatibility with laptops, chargers, power banks, and USB-C adapters.

• Easy Signal Access
  All major USB-C pins are broken out to labeled solder pads or headers for quick integration into custom PCBs or breadboards.

• Compact & Lightweight Design
  Small PCB footprint makes it suitable for space-constrained projects and portable devices.

• Reversible Plug Support
  USB Type-C design supports reversible cable insertion for improved usability.

• Reliable Power Handling
  Designed to support standard USB power levels, making it suitable for powering microcontrollers and development boards.

• High-Quality PCB & Connector
  Manufactured using durable materials for secure connections and long-term use.

• Ideal for Prototyping & Testing
  Eliminates the need for custom USB-C footprints during early development stages.

Technical Specifications – USB Type-C Connector Breakout

• Connector Type: USB Type-C Female

• Board Type: Breakout / Interface Board

• USB Standard Support: USB 2.0 signals (D+ / D-)

• Power Pins: VBUS, GND

• Configuration Pins: CC1, CC2

• PCB Material: FR-4

• Mounting Type: Surface-mounted connector on breakout PCB

• Output Interface: Solder pads or pin headers

• Input Voltage: 5 V (USB standard)

• Current Rating: Up to 3 A (depending on PCB design and cable quality)

• Board Dimensions: Compact form factor (varies by manufacturer)

• Operating Temperature: –20°C to +70°C

Note: USB Power Delivery (PD) negotiation requires external controller circuitry and is not handled directly by the breakout board.

Applications of USB Type-C Connector Breakout

The USB Type-C Connector Breakout (Female) is suitable for a wide range of professional, educational, and DIY applications:

1. Electronics Prototyping

Ideal for rapid development and testing of USB-powered circuits without designing a custom USB-C PCB footprint.

2. Embedded Systems & Microcontroller Projects

Commonly used to power boards such as Arduino, ESP32, Raspberry Pi Pico, and custom microcontroller designs.

3. USB Power Supply & Charging Circuits

Perfect for experimenting with USB-based power input, battery charging modules, and voltage regulation circuits.

4. Educational & Laboratory Use

Widely used in engineering labs and classrooms to demonstrate modern USB-C connectivity and power concepts.

5. Repair & Replacement Projects

Useful for repairing devices with damaged USB-C ports or creating test fixtures for cable and power validation.

6. DIY & Maker Projects

Popular among makers and hobbyists building custom gadgets, IoT devices, and portable electronics.

Why Choose the USB Type-C Connector Breakout?

The USB Type-C Connector Breakout (Female) offers a reliable and cost-effective way to adopt modern USB-C connectivity without complex PCB design. Its clear pin access, compact size, and robust construction make it an essential tool for engineers, students, and electronics enthusiasts.

By using this breakout board, you can reduce development time, improve testing efficiency, and future-proof your designs with the latest USB interface standard.

Upgrade your projects with the USB Type-C Connector Breakout (Female) and experience simple, flexible, and dependable USB-C integration.

Package Includes:

1 x USB Type-C Connector Breakout (Female)

FAQ

1. Where can we buy this USB Type-C Connector Breakout?

This product is available online https://aiiottech.in/product/usb-type-c-conne…-breakout-female/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this USB Type-C Connector Breakout after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: USB Type-C Breakout Board Explained
