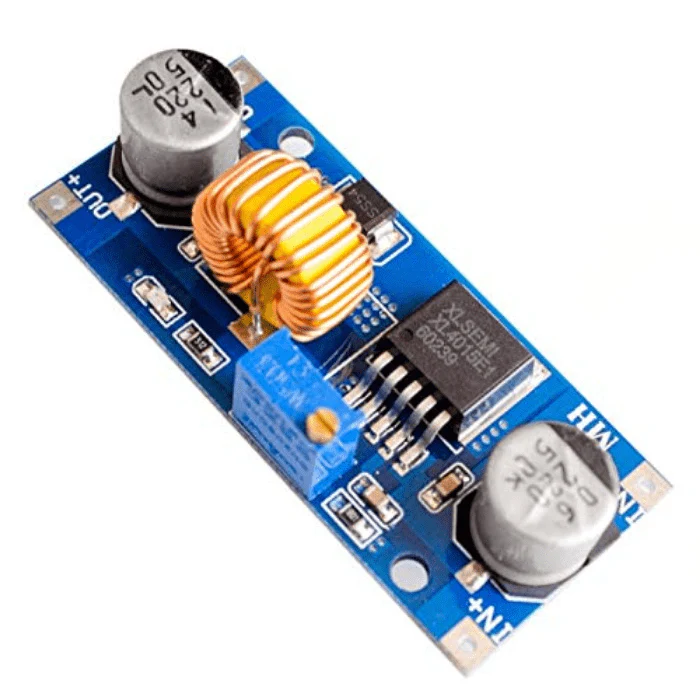

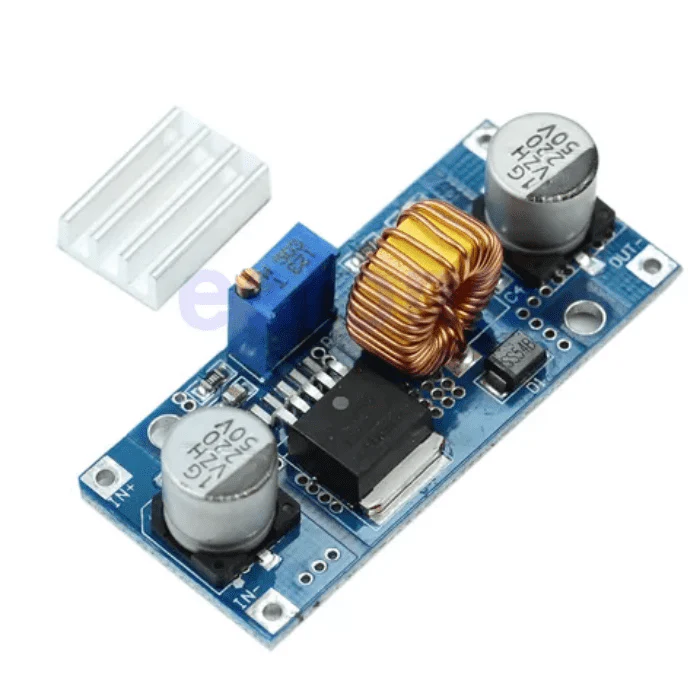

XL4015 DC-DC Step Down Power Supply Module is a high-performance buck converter designed to efficiently regulate voltage in electronics, embedded systems, robotics, IoT devices, and power management projects. Built around the powerful XL4015 switching regulator IC, this module delivers up to 5A continuous output current with excellent stability and low ripple, making it an ideal solution for applications requiring dependable voltage conversion from higher DC input sources.
Whether you are powering microcontrollers, sensors, communication modules, motors, or battery-powered circuits, the XL4015 module ensures smooth, adjustable, and energy-efficient power delivery. With built-in protection features, a wide input voltage range, and easy adjustability via a precision potentiometer, this module is a must-have for engineers, hobbyists, students, and industrial developers.
Key Features
-
High Output Current up to 5A
Supports heavy loads such as motors, embedded boards, and power-hungry modules. -
Wide Input Voltage Range (4V – 38V)
Accepts power from batteries, adapters, solar panels, and industrial DC sources. -
Adjustable Output Voltage (1.25V – 36V)
Easily fine-tune output using onboard potentiometer for precise voltage regulation. -
High Conversion Efficiency up to 96%
Reduces heat generation and improves battery life in portable systems. -
Integrated Thermal Shutdown & Current Limiting
Protects both the module and connected devices from damage. -
Low Ripple and Noise Output
Ensures stable power for sensitive electronics like microcontrollers and RF modules. -
Onboard LED Power Indicator
Confirms output voltage presence for quick diagnostics. -
Compact, Durable PCB Design
Easy to integrate into breadboards, enclosures, and embedded systems.
Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 4V – 38V DC |
| Output Voltage Range | 1.25V – 36V DC (adjustable) |
| Output Current | Up to 5A (recommended ≤4.5A continuous) |
| Conversion Efficiency | Up to 96% |
| Switching Frequency | 180 kHz |
| Output Ripple | ≤50 mV |
| Regulation Type | Buck (Step Down) |
| Protection Features | Thermal shutdown, current limiting |
| Indicator | Output LED |
| Operating Temperature | -40°C to +85°C |
| Dimensions | Approx. 54 × 23 × 18 mm |
| Weight | Approx. 15 g |
Package Includes:
1 x XL4015 DC-DC Step Down Power Supply Module
FAQ
1. Where can we buy this XL4015 DC-DC Step Down Power Supply Module?
This product is available online https://aiiottech.in/product/xl4015-dc-dc-step-down-power-supply-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103
2. When can I get this XL4015 DC-DC Step Down Power Supply Module after placing the order?
RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
Video Link: XL4015 Module Unbox Details
