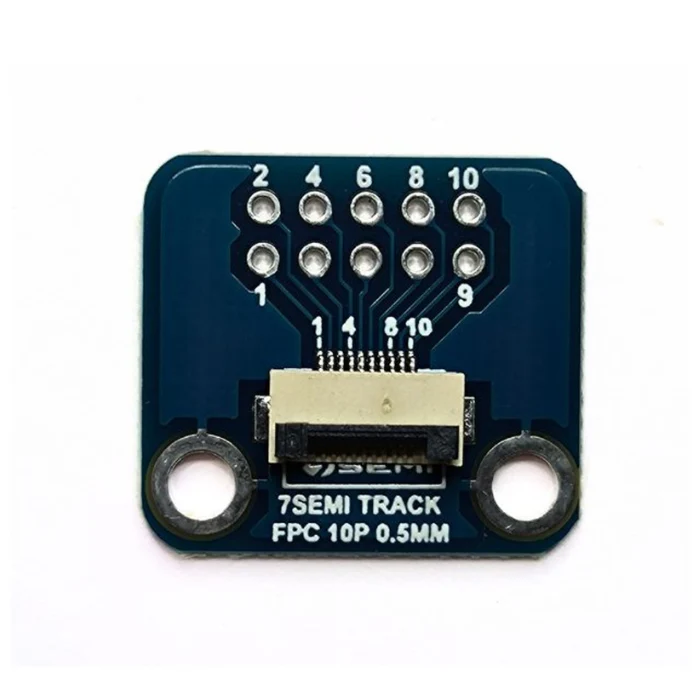

0.5mm FFC FPC Connector Breakout Board (10 Pin)

0.5mm FFC FPC Connector Breakout Board is a compact and reliable solution designed to simplify the connection of fine-pitch FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) cables to standard through-hole or pin-header interfaces. This breakout board converts delicate 0.5mm pitch FFC/FPC connectors into easy-to-use solder pads or headers, making it ideal for prototyping, testing, debugging, and product development.

Engineered for precision and durability, this breakout board is widely used in embedded systems, consumer electronics, display modules, cameras, and IoT applications. Whether you are working on a quick prototype or evaluating a flexible circuit in a lab environment, this board provides a stable and organized interface while protecting fragile FFC/FPC cables from damage.

Key Features of 0.5mm FFC FPC Connector Breakout Board

• 0.5mm Fine-Pitch Support
  Designed specifically for 0.5mm pitch FFC and FPC cables commonly used in modern electronics.

• Easy Prototyping & Testing
  Breaks out each FFC/FPC pin to clearly labeled pads or pin headers for quick signal access and debugging.

• High-Quality Connector Socket
  Features a robust ZIF (Zero Insertion Force) or flip-lock connector for secure and repeated cable insertion.

• Compact & Lightweight Design
  Small form factor makes it ideal for space-constrained applications and breadboard setups.

• Reliable Signal Integrity
  PCB traces are optimized to reduce signal loss and crosstalk, ensuring stable data transmission.

• Durable PCB Construction
  Manufactured using high-quality FR-4 material with precision copper plating for long-term reliability.

• Wide Compatibility
  Compatible with a variety of FFC/FPC cables used in displays, sensors, cameras, and embedded modules.

Technical Specifications – 0.5mm FFC FPC Connector Breakout Board

• Product Type: FFC/FPC Connector Breakout Board

• Connector Pitch: 0.5 mm

• Supported Cable Type: FFC (Flat Flexible Cable) / FPC (Flexible Printed Circuit)

• Connector Style: ZIF / Flip-lock type

• Number of Pins: Common variants (e.g., 6, 10, 20, 24, 30 pins – depending on model)

• Mounting Type: PCB mount

• Output Interface: Through-hole pads / pin header breakout

• PCB Material: FR-4

• PCB Thickness: 1.6 mm (typical)

• Operating Voltage: Suitable for low-voltage logic levels

• Operating Temperature: –20°C to +85°C

• Finish: Lead-free, RoHS compliant

Note: Pin count and connector orientation may vary depending on the specific board variant.

Applications of 0.5mm FFC FPC Connector Breakout Board

The 0.5mm FFC FPC connector breakout board is an essential tool across multiple electronics and embedded system applications, including:

• Display Modules (LCD, OLED, TFT)
  Enables easy interfacing and testing of display panels using fine-pitch FFC/FPC cables.

• Camera & Imaging Modules
  Commonly used for camera ribbon cables in embedded vision and imaging systems.

• Embedded Systems & Microcontrollers
  Simplifies connecting FFC/FPC-based peripherals to Arduino, Raspberry Pi, STM32, and other development boards.

• IoT & Consumer Electronics
  Ideal for prototyping compact devices such as wearables, smart home products, and portable electronics.

• Product Development & R&D
  Frequently used by engineers and researchers for signal probing, validation, and debugging.

• Educational & DIY Projects
  Perfect for students, hobbyists, and makers learning flexible cable interfacing and PCB design.

Why Choose This 0.5mm FFC FPC Connector Breakout Board?

Handling fine-pitch FFC/FPC connectors directly can be challenging and risky. This breakout board eliminates that complexity by offering a safe, reusable, and well-organized interface for fragile ribbon cables. Its robust connector, clearly laid-out pin access, and high-quality PCB construction make it a dependable choice for both professional engineers and hobbyists.

By reducing development time and minimizing connection errors, the 0.5mm FFC FPC Connector Breakout Board helps you focus on innovation rather than troubleshooting hardware issues.

Upgrade your prototyping workflow with the 0.5mm FFC FPC Connector Breakout Board—a must-have accessory for modern electronics design, testing, and development.

Package Includes:

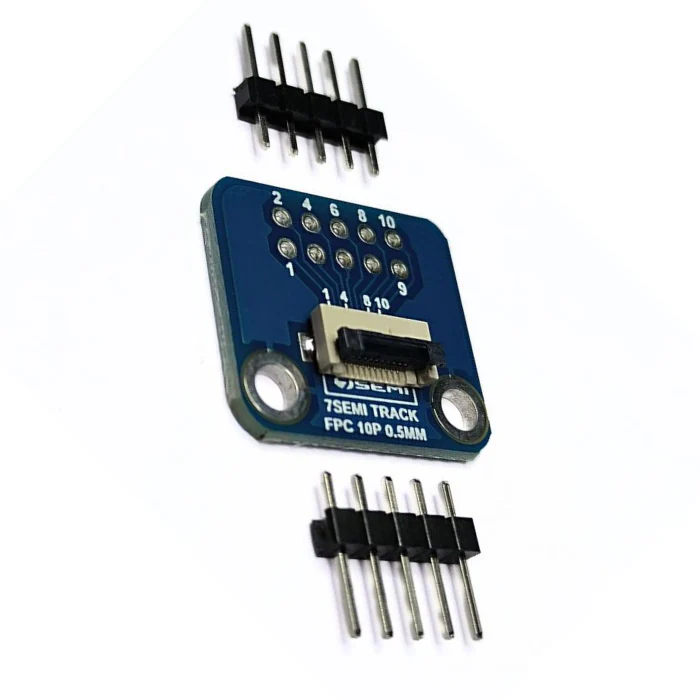

1 x 0.5mm FFC FPC Connector Breakout Board (10 Pin)
