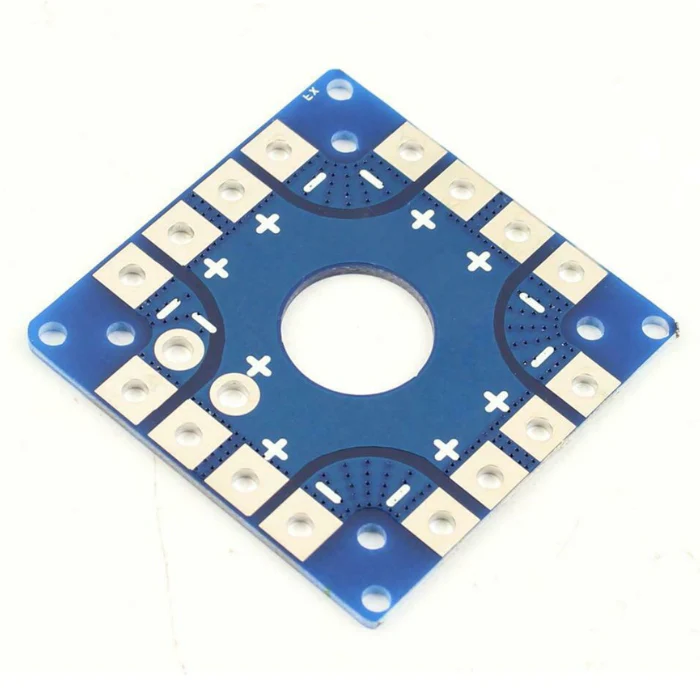

100A ESC Power Distribution Board

100A ESC Power Distribution Board, designed to deliver stable and high-current power to all your Electronic Speed Controllers (ESCs) and onboard electronics. Whether you are building a custom quadcopter, hexacopter, or any other high-power aerial platform, this PDB ensures consistent voltage distribution, reduced electrical noise, and enhanced overall system performance. Engineered with high-quality copper layers and a compact layout, this board provides dependable power handling up to 100A, making it an ideal choice for both hobbyists and professional drone developers.

Built for brushless motor setups, FPV drones, RC aircraft, and robotics applications, the 100A ESC Power Distribution Board is optimized to support modern power-hungry components such as high-thrust motors, large LiPo batteries, FPV transmitters, and flight controllers. Its lightweight structure and efficient design help minimize overall payload while maximizing electrical stability and safety.

Key Features

🔌 High Current Capacity (Up to 100A)

Designed to handle heavy loads, this PDB supports a combined current rating of up to 100A, ensuring reliable power delivery to all ESCs without overheating or voltage drops.

⚡ Stable and Clean Power Distribution

The board distributes equal and efficient power to all connected ESCs, reducing electrical noise and improving the stability of the flight controller and sensors.

🛠 Premium Quality Construction

Manufactured using high-grade PCB materials and thick copper traces, the board ensures long-term durability, low resistance, and efficient conduction under full load.

🔧 Easy Soldering Points

Clearly marked solder pads for ESC and battery input lines make installation simple and quick, helping builders achieve clean and secure wiring.

🧩 Compact and Lightweight Design

The lightweight and compact form factor reduces total drone weight without compromising structural or electrical performance.

⚙️ Compatible with Most Multirotor Builds

Works seamlessly with quadcopters, hexacopters, octocopters, and various RC aircraft setups using 2S–6S LiPo batteries.

🔥 Heat-Resistant and Safe Operation

Built with heat-resistant PCB materials, the PDB can withstand high temperatures, preventing shorts and improving operating safety in demanding environments.

Specifications

• Current Rating: Up to 100A (total)

• Voltage Rating: Typically 7.4V – 22.2V (2S–6S LiPo)

• Material: High-quality FR4 PCB with thick copper layers

• ESC Output Pads: Multiple large solder pads for ESC power leads

• Battery Input: Main +/− solder pads for direct battery connection

• Dimensions: Compact design suitable for most drone frames

• Weight: Lightweight to support efficient flight characteristics

• Compatibility: Brushless ESCs, LiPo battery packs, flight controllers, FPV modules, and other UAV electronics

Applications

🛩 Multirotor Drones

Ideal for quadcopters, hexacopters, and octocopters requiring efficient and high-power distribution to four or more motors.

🛫 RC Aircraft

A perfect power hub for fixed-wing RC planes using high-power ESCs and accessories.

🎥 FPV Racing Drones

Supports high-current motors and aggressive flying styles, ensuring stable voltage even in peak throttle conditions.

🤖 Robotics and DIY Electronics

Useful for robotics projects and custom builds where multiple motors or controllers require a single, stable power source.

📡 Aerial Photography Platforms

Ensures clean power to gimbals, cameras, and transmitters, improving footage stability and system reliability.

The 100A ESC Power Distribution Board is the ultimate solution for builders who need a reliable, high-capacity, and easy-to-install power hub for their high-performance drones and RC systems. With its superior build quality, compact design, and heavy-duty current handling, this PDB ensures efficient, stable, and trouble-free operation for all your UAV power needs.
