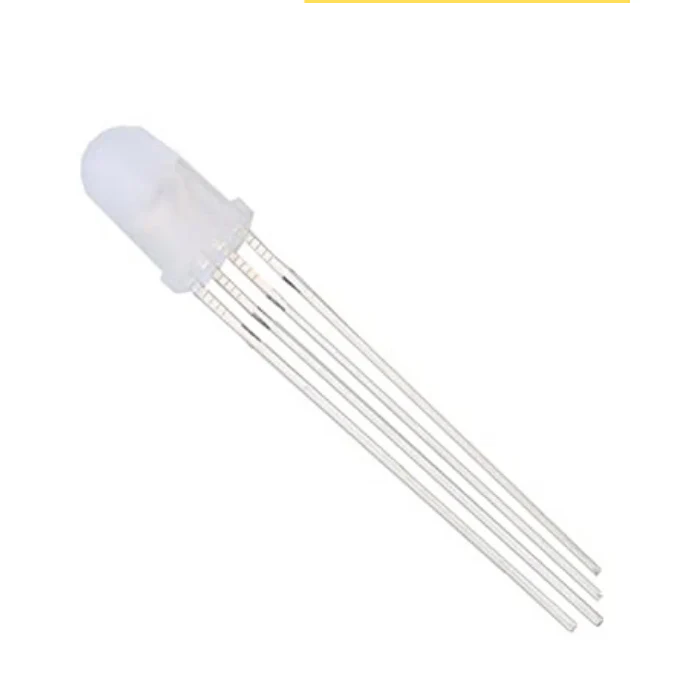

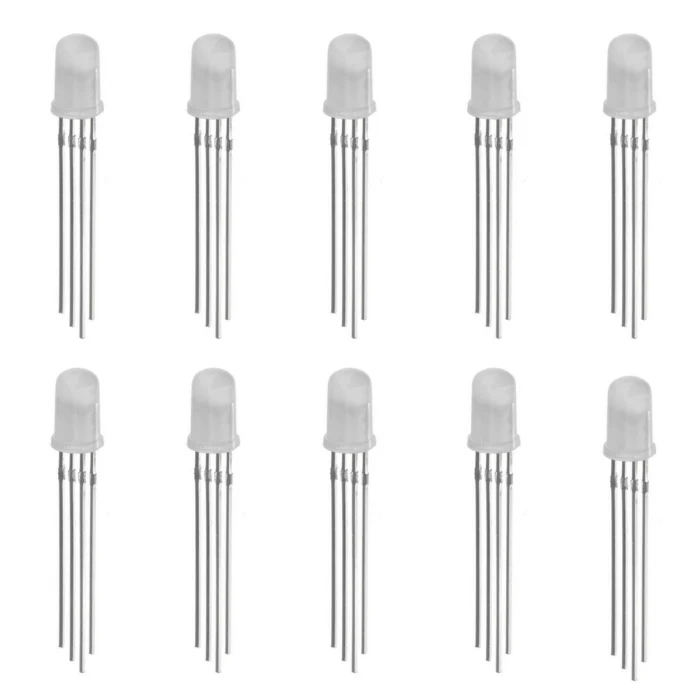

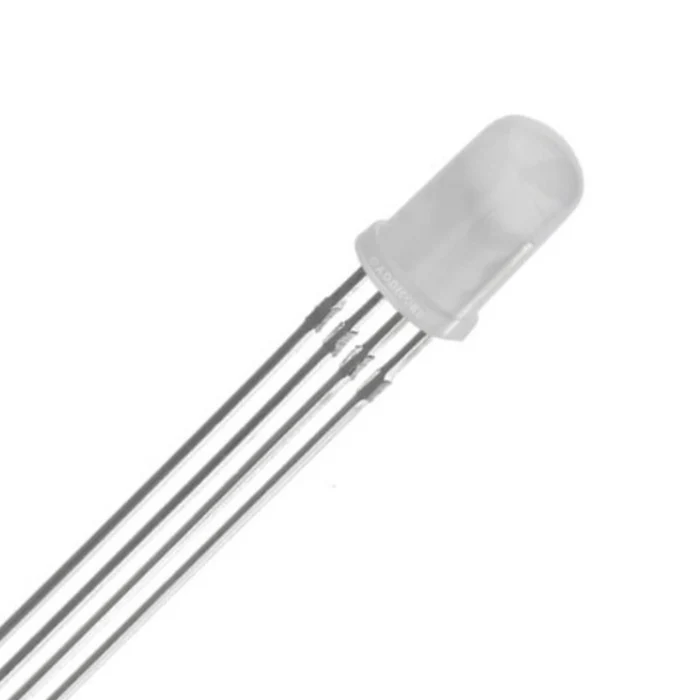

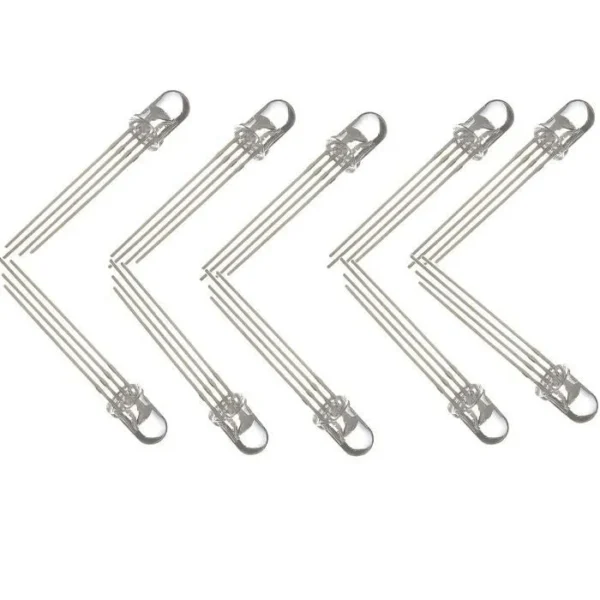

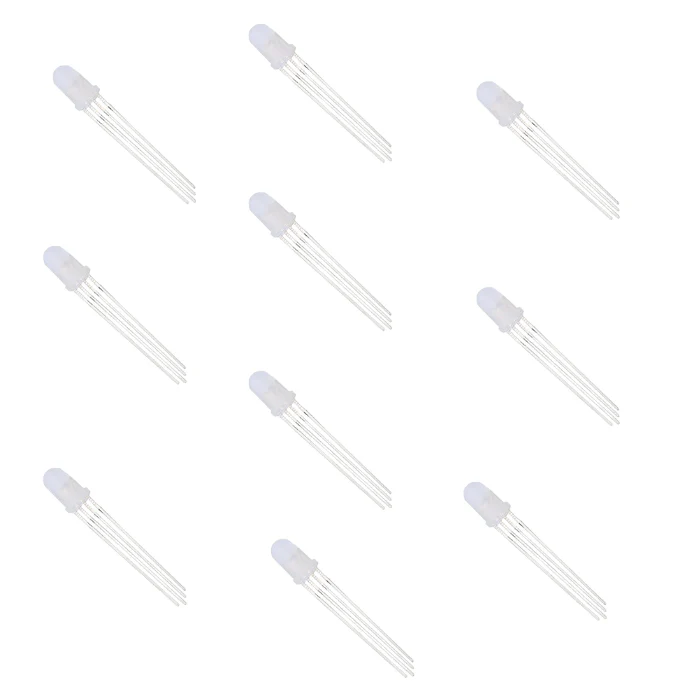

5mm Diffuse RGB LED

5mm Diffuse RGB LED is a versatile and energy-efficient light-emitting diode designed to produce vibrant red, green, and blue colors from a single compact package. By combining these three primary colors, the LED can generate a wide range of colors, making it an excellent choice for decorative lighting, indicators, displays, and DIY electronics projects.

Featuring a diffused epoxy lens, this RGB LED provides soft, uniform light distribution, reducing glare and hot spots compared to clear-lens LEDs. The standard 5mm through-hole package ensures easy integration with breadboards, PCBs, and development boards, making it suitable for both beginners and professionals. Whether you are designing a visual indicator or building a creative lighting solution, the 5mm Diffuse RGB LED delivers reliable and consistent performance.

Key Features of 5mm Diffuse RGB LED

• Tri-Color RGB Output
  Integrates red, green, and blue LEDs in a single package, allowing millions of color combinations using PWM control.

• Diffuse Lens for Uniform Light
  The diffused epoxy body provides smooth, evenly spread illumination ideal for ambient and decorative lighting.

• Standard 5mm Package
  Commonly used through-hole form factor ensures easy mounting on PCBs and breadboards.

• Low Power Consumption
  Energy-efficient operation makes it suitable for battery-powered and low-power electronic devices.

• Long Operating Life
  Designed for extended usage with minimal brightness degradation over time.

• Microcontroller Friendly
  Fully compatible with popular platforms such as Arduino, Raspberry Pi (via drivers), ESP8266, ESP32, and other microcontrollers.

• RoHS Compliant
  Manufactured using environmentally friendly materials, suitable for commercial and educational use.

Technical Specifications – 5mm Diffuse RGB LED

• LED Type: RGB (Red, Green, Blue)

• Package Size: 5mm Through-Hole

• Lens Type: Diffused

• Emitted Colors: Red, Green, Blue (combinable for multiple colors)

• Forward Voltage (Typical):

  • Red: 1.8 – 2.2 V

  • Green: 3.0 – 3.2 V

  • Blue: 3.0 – 3.2 V

• Forward Current: 20 mA per color (typical)

• Viewing Angle: 20° – 30°

• Luminous Intensity: Varies by color

• Lead Configuration: Common Anode or Common Cathode (model dependent)

• Operating Temperature: –20°C to +70°C

• Mounting Type: Through-Hole (THT)

Note: Electrical characteristics may vary slightly depending on manufacturer.

Applications of 5mm Diffuse RGB LED

The 5mm Diffuse RGB LED is widely used across consumer electronics, educational kits, and professional designs due to its flexibility and compact size. Typical applications include:

• Decorative & Ambient Lighting
  Ideal for mood lighting, festival decorations, signage, and artistic installations.

• Status Indicators & Visual Alerts
  Commonly used as multi-status indicators in electronic devices, control panels, and dashboards.

• DIY Electronics & Maker Projects
  Perfect for Arduino, ESP32, and Raspberry Pi projects, including color-changing lamps and interactive displays.

• Educational & Training Kits
  Used in electronics labs and STEM learning kits to demonstrate RGB color mixing and PWM control.

• Consumer Electronics
  Integrated into toys, gadgets, appliances, and gaming accessories for visual effects.

• Display Panels & Prototypes
  Suitable for small display modules, prototypes, and proof-of-concept designs.

Benefits of Using a Diffuse RGB LED

Unlike clear RGB LEDs, the diffuse RGB LED offers a softer and more visually appealing output. This makes it especially suitable for applications where consistent color blending and comfortable viewing are required. The diffused lens ensures that individual red, green, and blue sources blend seamlessly, producing a uniform color output without harsh brightness.

Why Choose the 5mm Diffuse RGB LED?

The 5mm Diffuse RGB LED combines compact size, color versatility, low power consumption, and ease of use, making it an essential component for modern electronic designs. Its standardized package allows quick integration, while its durability ensures reliable long-term operation. From professional product designs to hobbyist projects, this RGB LED provides excellent performance at an affordable cost.

Enhance your lighting and display projects with the 5mm Diffuse RGB LED and unlock endless creative possibilities with vibrant, smooth, and customizable colors.

Package Includes:

1 x 5mm Diffuse RGB LED (Common Anode | Common Cathode)

FAQ

1. Where can we buy this 5mm Diffuse RGB LED?

This product is available online https://aiiottech.in/product/5mm-diffuse-rgb-led/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 5mm Diffuse RGB LED after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
