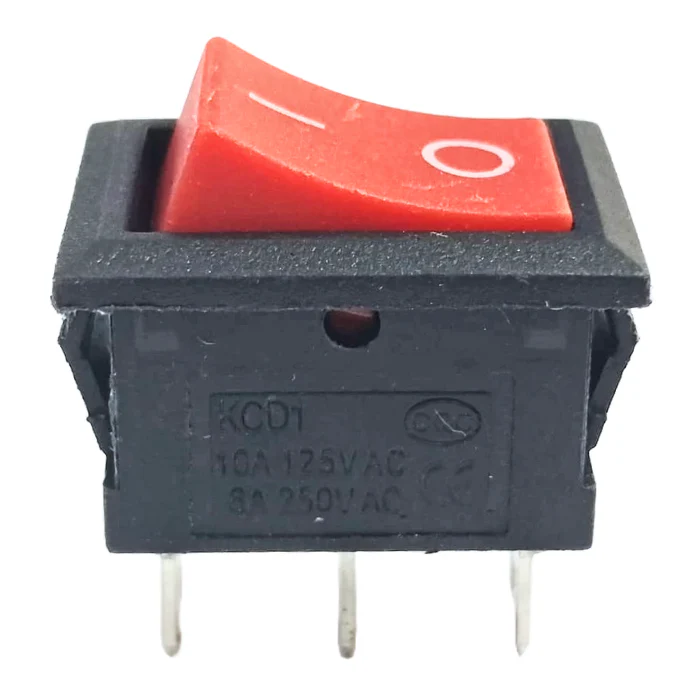

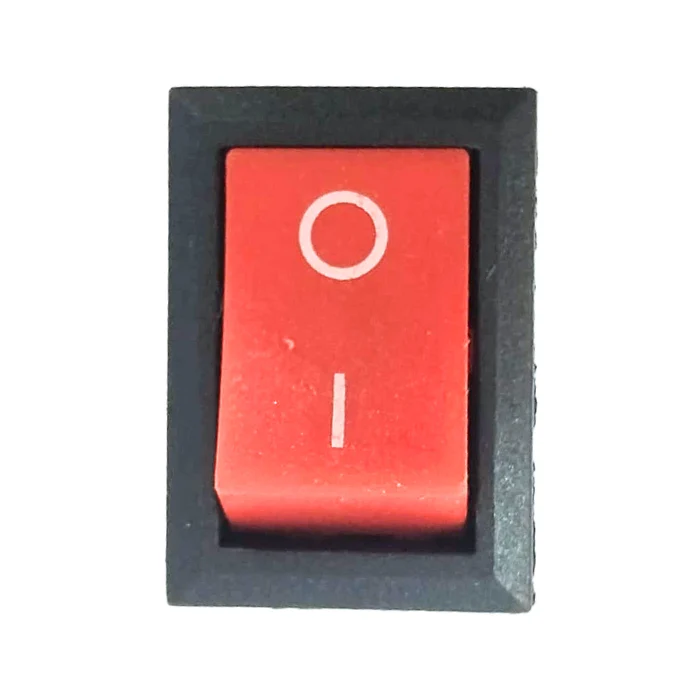

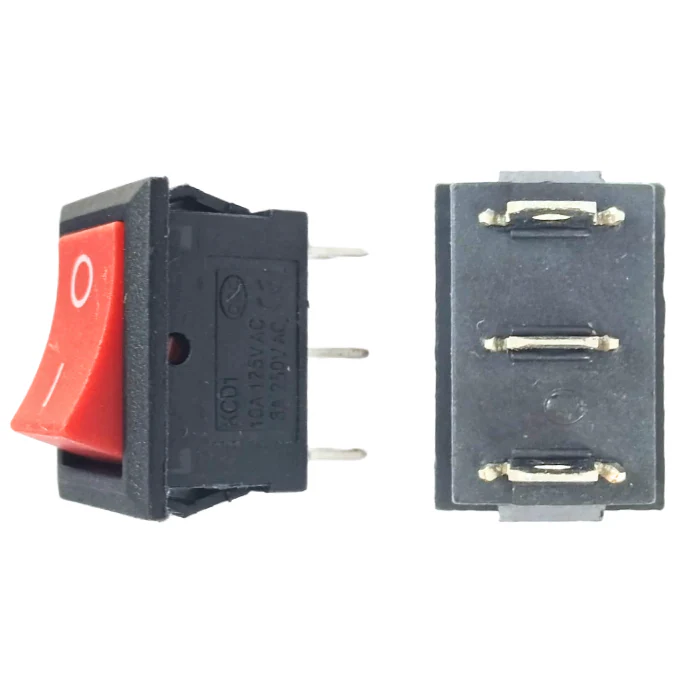

6A 250V 3 Pin SPDT ON-OFF Rocker Switch

6A 250V 3 Pin SPDT ON-OFF Rocker Switch is a compact, durable, and highly reliable electrical switch designed for efficient power control in a wide range of electronic devices, appliances, and industrial equipment. Built to handle high voltage and moderate current loads, this rocker switch ensures safe and stable switching performance in both AC and DC circuits.

With its Single Pole Double Throw (SPDT) configuration and ON-OFF operation, this switch allows easy control of power flow between circuits. The ergonomic rocker mechanism provides smooth operation and clear tactile feedback, making it ideal for applications where frequent switching is required. Its standardized panel-mount design enables quick installation and seamless integration into control panels, enclosures, and consumer electronics.

Key Features of 6A 250V 3 Pin SPDT ON-OFF Rocker Switch

• High Electrical Rating
  Rated for 6A at 250V AC, making it suitable for a wide variety of household, commercial, and industrial electrical applications.

• SPDT Configuration (3 Pin)
  The Single Pole Double Throw design enables flexible circuit control, allowing the switch to connect one input to one of two outputs.

• Smooth ON-OFF Rocker Action
  Provides reliable switching with minimal effort and long mechanical life.

• Compact & Space-Saving Design
  Ideal for installations where panel space is limited, without compromising performance.

• Durable Insulated Housing
  Manufactured from high-quality, flame-retardant plastic for enhanced safety and durability.

• Easy Panel Mounting
  Snap-in or screw-mount design allows quick installation in panels, boxes, and enclosures.

• Clear Switching Indication
  Clearly marked ON and OFF positions for user convenience and operational safety.

Technical Specifications – 6A 250V 3 Pin Rocker Switch

• Switch Type: Rocker Switch

• Configuration: SPDT (Single Pole Double Throw)

• Number of Pins: 3

• Operating Mode: ON-OFF

• Rated Current: 6 Amps

• Rated Voltage: 250V AC

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ

• Dielectric Strength: 1500V AC (1 minute)

• Material: Flame-retardant plastic housing with metal contacts

• Mounting Type: Panel mount

• Terminal Type: Solder or quick-connect terminals

• Mechanical Life: ≥ 10,000 cycles

• Operating Temperature: –20°C to +85°C

Note: Specifications may vary slightly depending on the manufacturer or production batch.

Applications of 6A 250V 3 Pin SPDT ON-OFF Rocker Switch

The 6A 250V SPDT rocker switch is widely used across multiple industries due to its reliability, safety, and ease of use. Typical applications include:

• Home Appliances
  Used in fans, mixers, water purifiers, heaters, extension boards, and power strips.

• Electronic Projects & DIY Kits
  Ideal for hobbyists, students, and makers working on power control circuits and prototypes.

• Industrial Control Panels
  Suitable for machinery control, test benches, and automation panels.

• Power Supplies & Adapters
  Commonly used as a main power switch in SMPS units and electrical enclosures.

• Automotive & Marine Accessories
  Applied in dashboard controls, auxiliary power systems, and custom installations.

• Office & Commercial Equipment
  Used in printers, copiers, UPS systems, and other office electronics.

Why Choose the 6A 250V 3 Pin SPDT Rocker Switch?

The 6A 250V ON-OFF rocker switch offers an excellent combination of performance, safety, and affordability. Its robust construction, reliable SPDT configuration, and high voltage rating make it suitable for both professional and DIY applications. The simple rocker mechanism ensures intuitive operation, while the compact design allows easy integration into a wide range of products.

Whether you are manufacturing electrical equipment, repairing appliances, or building custom electronic projects, this 3 pin SPDT rocker switch delivers consistent and dependable switching performance.

Choose the 6A 250V 3 Pin SPDT ON-OFF Rocker Switch for safe, efficient, and long-lasting power control in your electrical and electronic applications.

Package Includes:

1 x 6A 250V 3 Pin SPDT ON-OFF Rocker Switch

FAQ

1. Where can we buy this 6A 250V 3 Pin SPDT ON-OFF Rocker Switch?

This product is available online https://aiiottech.in/product/6a-250v-3-pin-re…nd-rocker-switch/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 6A 250V 3 Pin SPDT ON-OFF Rocker Switch after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: How to Wire a 3-Prong On-Off-On DC Rocker Switch
