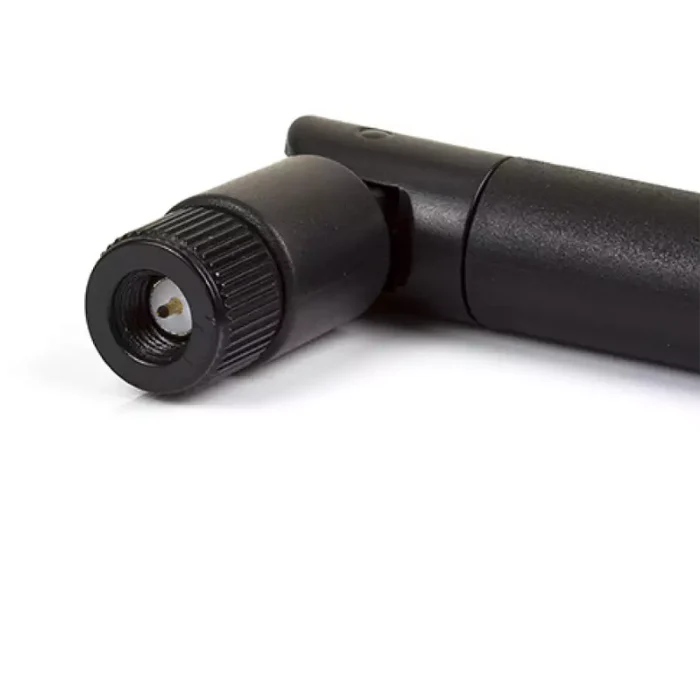

6dbi 2.4GHz Duck Antenna SMA Male

6dBi 2.4GHz Duck Antenna SMA Male, a compact, high-efficiency antenna designed to deliver stable signal strength, extended coverage, and reliable connectivity. Engineered for 2.4GHz ISM band applications, this duck antenna is ideal for Wi-Fi, IoT, wireless modules, routers, access points, and embedded systems. With its 6dBi high gain, omnidirectional radiation pattern, and durable construction, it ensures improved transmission quality even in challenging environments.

This antenna features an SMA male connector, making it compatible with a wide range of wireless devices and RF modules. The flexible duck-style design allows easy positioning for optimal signal reception while maintaining mechanical strength for long-term use. Whether used in commercial networking equipment, industrial automation, or academic and R&D projects, this antenna provides a cost-effective solution for boosting wireless performance.

Key Features

• High Gain (6dBi): Improves signal strength and extends wireless coverage compared to standard low-gain antennas.

• 2.4GHz Frequency Band: Optimized for the widely used 2.4GHz ISM band, ensuring compatibility with Wi-Fi, Bluetooth, Zigbee, and other wireless technologies.

• Omnidirectional Radiation Pattern: Provides 360-degree signal coverage, making it ideal for indoor and outdoor wireless networking.

• SMA Male Connector: Standard RF connector ensures easy integration with routers, wireless modules, and access points.

• Duck-Type Flexible Design: Allows convenient angle adjustment for optimal antenna orientation and signal quality.

• Low VSWR & High Efficiency: Ensures minimal signal loss and stable data transmission.

• Durable Construction: Robust housing and high-quality materials offer resistance to wear and environmental factors.

• Plug-and-Play Installation: No additional tools required; simply connect and use.

Technical Specifications

• Product Name: 6dBi 2.4GHz Duck Antenna SMA Male

• Frequency Range: 2.4 – 2.5 GHz

• Gain: 6 dBi

• Polarization: Linear

• Radiation Pattern: Omnidirectional

• Connector Type: SMA Male

• Impedance: 50 Ohms

• VSWR: ≤ 2.0

• Maximum Input Power: 10–20 W (typical)

• Antenna Type: Duck / Rubber Antenna

• Mounting: Direct SMA connection

• Color: Black

• Operating Temperature: –40°C to +85°C (approx.)

Applications

The 6dBi 2.4GHz Duck Antenna SMA Male is suitable for a wide range of wireless communication applications, including:

• Wi-Fi Routers & Access Points: Enhances signal range and improves network stability in homes, offices, and institutions.

• IoT Devices & Wireless Modules: Ideal for ESP32, ESP8266, Arduino, Raspberry Pi, and other RF-enabled development boards.

• Wireless Sensor Networks: Ensures reliable data transmission in smart agriculture, smart cities, and industrial monitoring systems.

• Zigbee & Bluetooth Systems: Improves connectivity for mesh networks and short-range wireless communication.

• CCTV & Wireless Cameras: Provides stronger and more stable wireless video transmission.

• Industrial Automation: Used in wireless control systems, PLC communication, and telemetry devices.

• Educational & R&D Projects: Perfect for engineering labs, academic research, and prototyping applications.

• Remote Monitoring Systems: Enhances performance of wireless data loggers and monitoring units.

Why Choose This Antenna?

Compared to standard 2dBi or 3dBi antennas, the 6dBi 2.4GHz Duck Antenna offers significantly better range and signal clarity without increasing system complexity. Its omnidirectional coverage ensures consistent performance regardless of device orientation, while the SMA male connector provides universal compatibility. The flexible yet sturdy design makes it suitable for both fixed installations and portable devices.

If you are looking for a reliable, high-performance antenna to boost your 2.4GHz wireless communication, the 6dBi 2.4GHz Duck Antenna SMA Male is an excellent choice. With superior gain, wide compatibility, easy installation, and robust build quality, it delivers enhanced connectivity for Wi-Fi, IoT, and RF applications across commercial, industrial, and educational environments.

Package Includes:

1 x 6dbi 2.4GHz Duck Antenna SMA Male
