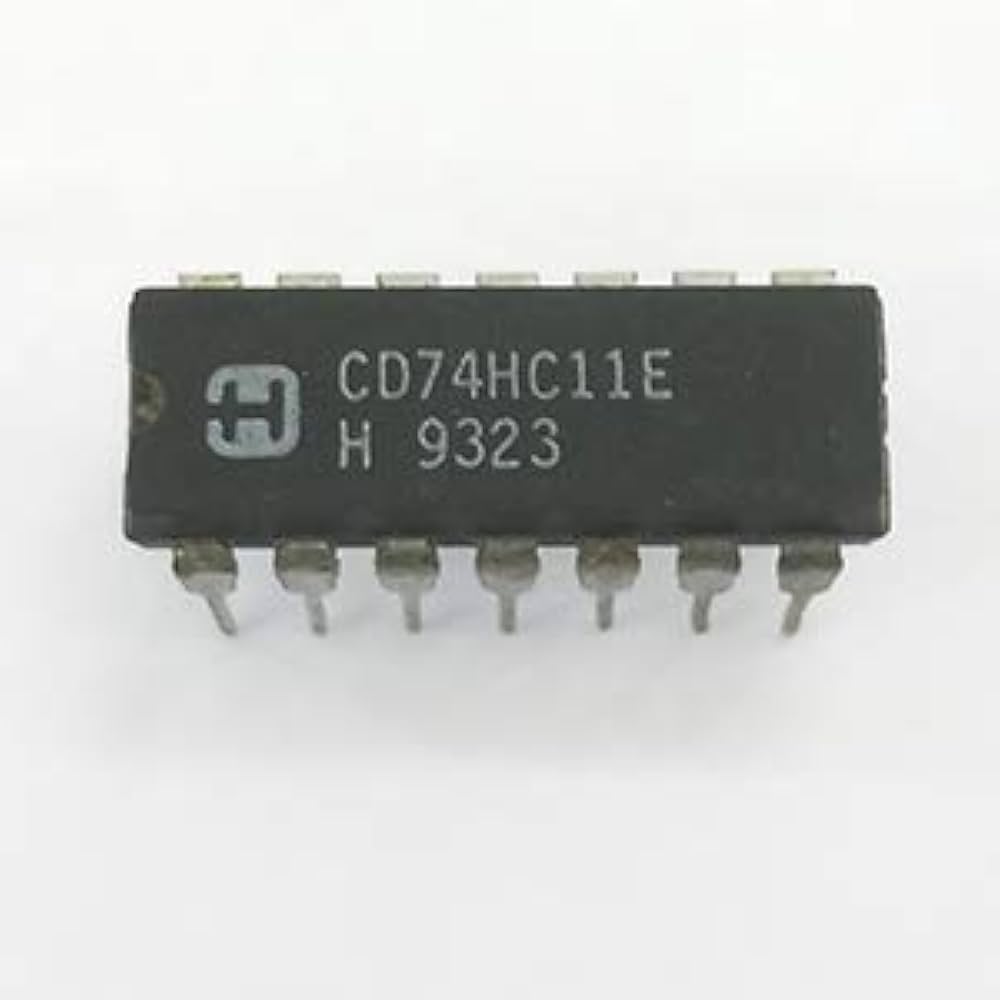

74HC11 Triple 3-Input AND Gate IC (DIP-14 Package)

74HC11 Triple 3-Input AND Gate IC is a high-performance CMOS logic integrated circuit designed for reliable and efficient digital signal processing. This IC integrates three independent 3-input AND gates into a single compact package, making it ideal for space-constrained and power-sensitive electronic designs. Built using High-Speed CMOS (HC) technology, the 74HC11 offers low power consumption, high noise immunity, and fast switching speeds, making it a preferred choice for modern digital systems.

The 74HC11 is fully compatible with TTL logic levels, allowing seamless integration with both CMOS and TTL-based circuits. It is widely used in embedded systems, industrial automation, consumer electronics, microcontroller interfacing, and educational projects. Whether you are designing combinational logic circuits or implementing control logic, the 74HC11 ensures stable and accurate logical AND operations.

Key Features of 74HC11 Triple 3-Input AND Gate IC

• Triple 3-Input AND Gates
  Contains three independent AND gates, each with three inputs, enabling complex logic operations with fewer components.

• High-Speed CMOS Technology
  Ensures faster propagation delay and lower power dissipation compared to standard logic ICs.

• Wide Operating Voltage Range
  Supports a supply voltage range from 2V to 6V, suitable for both low-power and standard digital systems.

• Low Power Consumption
  Ideal for battery-powered and energy-efficient applications.

• TTL Compatible Inputs
  Easily interfaces with TTL logic levels, offering design flexibility.

• High Noise Immunity
  Ensures reliable performance even in electrically noisy environments.

• Compact Package Options
  Available in DIP-14, SOIC-14, and other standard packages for easy PCB integration.

• RoHS Compliant
  Environmentally friendly and compliant with international safety standards.

Technical Specifications – 74HC11 AND Gate IC

• Logic Function: AND

• Number of Gates: 3

• Inputs per Gate: 3

• Technology: High-Speed CMOS (HC)

• Supply Voltage (Vcc): 2V to 6V

• Input Logic Level: TTL compatible

• Propagation Delay: Typically 8 ns (at 5V)

• Operating Temperature Range: –40°C to +85°C

• Output Current: ±4 mA (typical)

• Package Types: DIP-14, SOIC-14, TSSOP-14

• Mounting Type: Through-hole / Surface mount

Applications of 74HC11 Triple 3-Input AND Gate IC

The 74HC11 AND gate IC is widely used in various digital and logic-based applications due to its versatility and reliable performance:

• Digital Logic Circuits
  Used in combinational logic design, logic decision making, and Boolean algebra implementations.

• Microcontroller and Processor Interfacing
  Helps in signal gating, address decoding, and control signal generation.

• Embedded Systems
  Ideal for control logic in embedded boards and IoT devices.

• Industrial Automation Systems
  Applied in control panels, safety logic, and automation controllers.

• Consumer Electronics
  Used in digital clocks, calculators, home appliances, and audio-video equipment.

• Educational and Training Kits
  Commonly used in electronics labs for teaching digital logic concepts.

• Signal Conditioning and Data Control
  Useful in enabling or disabling signals based on multiple input conditions.

• Communication Systems
  Supports logic processing in data routing and control circuits.

Why Choose the 74HC11 Triple 3-Input AND Gate IC?

The 74HC11 IC stands out due to its combination of high speed, low power consumption, and design flexibility. By integrating three 3-input AND gates into a single IC, it reduces board space, simplifies circuit design, and enhances reliability. Its wide voltage compatibility and TTL-level input support make it suitable for both legacy and modern digital systems.

Whether you are a professional electronics engineer, student, or hobbyist, the 74HC11 offers a cost-effective and dependable solution for implementing logical AND operations in your designs.

Buy 74HC11 Triple 3-Input AND Gate IC Online

Choose the 74HC11 Triple 3-Input AND Gate IC for your next digital electronics project and experience efficient logic performance, low power operation, and high reliability. Perfect for prototyping, production, and educational use, this IC is a must-have component for any digital design toolkit.

Package Includes:

1 x 74HC11 Triple 3-Input AND Gate IC (DIP-14 Package)

FAQ

1. Where can we buy this 74HC11 Triple 3-Input AND Gate IC?

This product is available online https://aiiottech.in/product/74hc11-triple-3-input-and-gate-ic/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 74HC11 Triple 3-Input AND Gate IC after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
