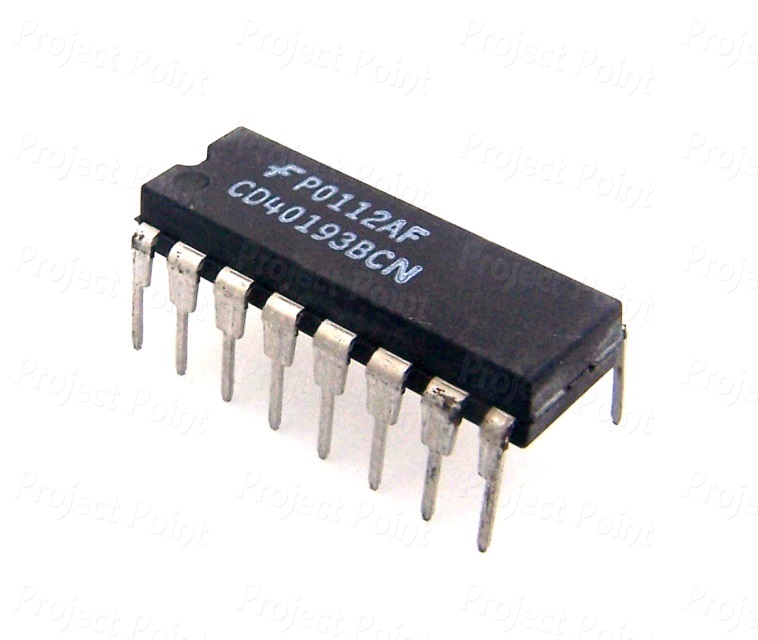

CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)

CD40193 8-bit Up/Down Binary Counter IC is a versatile, high-performance CMOS integrated circuit designed for accurate binary counting in digital and embedded systems. Widely used in frequency counting, event counting, timing circuits, and microcontroller-based applications, this IC offers reliable up/down counting with excellent noise immunity and low power consumption.

Built using CMOS technology, the CD40193 ensures stable operation over a wide voltage range while maintaining minimal power dissipation. It supports synchronous up and down counting, making it ideal for applications that require precise control over count direction. With its parallel preset inputs and asynchronous reset, the CD40193 provides flexible system design options for engineers, students, and hobbyists alike.

Key Features of CD40193 8-Bit Up/Down Counter IC

• 8-Bit Binary Counting Capability
  Supports counting from 0 to 255, making it suitable for medium-range digital counting applications.

• Up and Down Counting
  Separate clock inputs allow independent up-count and down-count operations, offering precise directional control.

• High-Speed CMOS Operation
  Designed for fast switching speeds while maintaining low power consumption.

• Wide Operating Voltage Range
  Operates typically from 3V to 15V, enabling compatibility with both low-power and standard digital circuits.

• Parallel Preset Inputs
  Allows loading of a predefined binary value for fast initialization or system synchronization.

• Asynchronous Reset
  Instantly clears the counter regardless of the clock state, ensuring reliable system reset behavior.

• Carry and Borrow Outputs
  Enables cascading of multiple ICs to achieve higher-bit counting (16-bit, 24-bit, or more).

• Excellent Noise Immunity
  CMOS technology ensures stable operation in electrically noisy environments.

• TTL Compatible Inputs
  Easy interfacing with microcontrollers, logic gates, and other digital ICs.

Technical Specifications

Applications of CD40193 Binary Counter IC

The CD40193 8-bit Up/Down Counter IC is widely used in a variety of digital and electronic applications due to its flexibility and reliability:

• Digital Counters and Timers
  Used in event counters, digital clocks, and programmable timing circuits.

• Frequency Counters
  Accurately counts input pulses in frequency measurement systems.

• Microcontroller Interface Circuits
  Works as an external counter for microcontrollers in embedded systems.

• Position and Encoder Tracking
  Ideal for tracking rotational or linear position in automation and robotics.

• Industrial Control Systems
  Suitable for process control, step counting, and sequence monitoring.

• Educational and Laboratory Projects
  Commonly used in electronics labs to teach binary counting and digital logic concepts.

• Data Acquisition Systems
  Counts digital events or pulses generated by sensors.

• DIY and Hobby Electronics
  Popular among makers for counters, scoreboards, and control panels.

Why Choose the CD40193 Counter IC?

The CD40193 stands out for its low power consumption, flexible counting modes, and robust CMOS design. Unlike simpler counters, it allows both up and down counting with independent clocks, making it suitable for advanced digital designs. Its cascading capability further extends its usefulness for higher-bit counting requirements.

Whether you are designing an industrial controller, a digital measurement system, or an academic project, the CD40193 8-bit Up/Down Binary Counter IC delivers dependable performance, easy integration, and long-term reliability.

Buy CD40193 8-Bit Up/Down Binary Counter IC Online

Upgrade your digital designs with the CD40193 CMOS Counter IC—a trusted solution for accurate, high-speed binary counting in modern electronic applications.

Package Includes:

1 x CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)

FAQ

1. Where can we buy this CD40193 8-bit Up/Down Binary Counter IC?

This product is available online https://aiiottech.in/product/cd40193-8-bit-up-down-binary-counter-ic/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this CD40193 8-bit Up/Down Binary Counter IC after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: 3-Bit & 4-bit Up/Down Synchronous Counter
