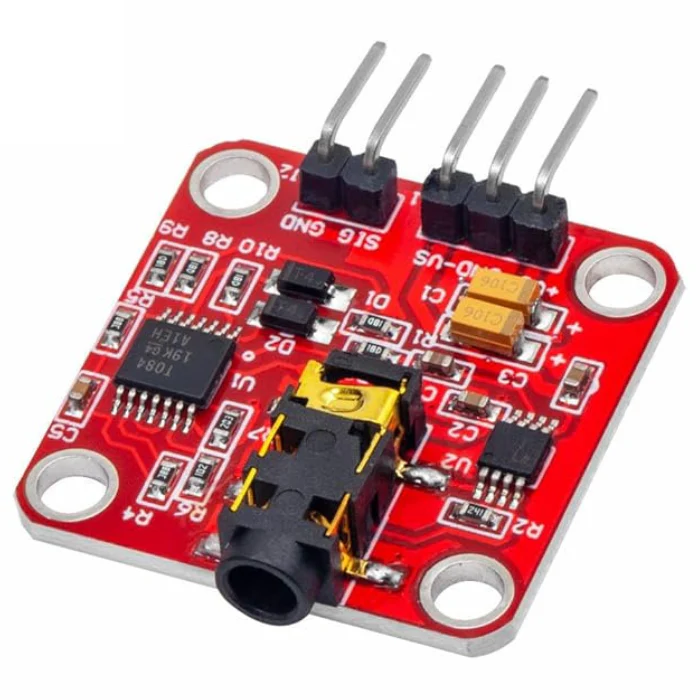

EMG Muscle Sensor Module for Arduino

EMG Muscle Sensor Module for Arduino is a high-sensitivity bio-signal acquisition module designed to measure electromyography (EMG) signals generated by muscle activity. This compact and easy-to-use module allows developers, researchers, students, and hobbyists to capture real-time muscle signals and convert them into analog output suitable for Arduino, Raspberry Pi (via ADC), and other microcontroller platforms.

By detecting electrical potentials produced during muscle contraction and relaxation, the EMG Muscle Sensor Module enables intuitive human–machine interaction. It is widely used in prosthetics, rehabilitation devices, robotics control, gaming interfaces, biomedical research, and wearable technology. With proper electrode placement and signal conditioning, the module delivers stable and reliable readings ideal for experimental and educational applications.

Key Features of EMG Muscle Sensor Module for Arduino

• High-Sensitivity EMG Signal Detection
  Accurately captures weak muscle electrical signals with effective amplification and filtering.

• Arduino & Microcontroller Compatible
  Provides analog output that can be directly connected to Arduino ADC pins for easy integration.

• On-Board Signal Conditioning
  Includes amplification, rectification, and smoothing circuitry for cleaner EMG output.

• Compact & Lightweight Design
  Ideal for wearable projects, portable systems, and embedded applications.

• Low Power Consumption
  Suitable for battery-powered devices and long-term experiments.

• Adjustable Gain (Model Dependent)
  Allows tuning of signal strength based on muscle group and application needs.

• Safe, Non-Invasive Measurement
  Works with disposable or reusable surface electrodes for safe human interaction.

Technical Specifications – EMG Muscle Sensor Module

• Sensor Type: Electromyography (EMG)

• Output Type: Analog voltage

• Operating Voltage: 3.3 V – 5 V DC

• Current Consumption: Low power (typically <10 mA)

• Signal Input: Surface EMG electrodes (3-electrode configuration)

• Output Range: 0 – Vcc (depends on muscle activity)

• Interface: Analog pin (Arduino, ESP32, STM32, etc.)

• Dimensions: Compact PCB design (varies by version)

• Operating Temperature: 0°C to 50°C

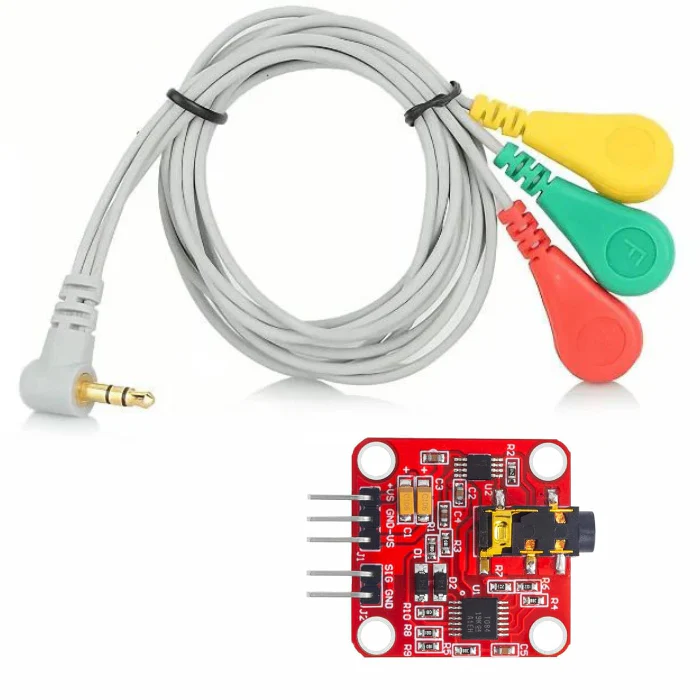

• Electrode Type: Snap-on or cable-based EMG electrodes

Note: Specifications may vary slightly depending on manufacturer and board version.

How the EMG Muscle Sensor Module Works

The EMG Muscle Sensor Module detects electrical signals generated when muscles contract. These bioelectric signals are extremely small, typically in the microvolt range. The module amplifies and filters the signal, then outputs a smooth analog voltage proportional to muscle activity intensity. This voltage can be read by a microcontroller and used to control motors, servos, LEDs, or software interfaces in real time.

Applications of EMG Muscle Sensor Module for Arduino

The EMG Muscle Sensor Module is widely used in educational, medical, and engineering projects where muscle activity control or monitoring is required.

Robotics & Human-Machine Interfaces

• Gesture-controlled robotic arms

• EMG-based motor and servo control

• Assistive robotics and exoskeleton prototypes

Biomedical & Rehabilitation Projects

• Muscle activity monitoring

• Physical therapy feedback systems

• Prosthetic limb control experiments

Wearable Technology

• Fitness and muscle performance tracking

• Smart wearables and health monitoring devices

• Sports science and biomechanics studies

Gaming & Interactive Systems

• EMG-controlled games

• Virtual reality interaction systems

• Custom input devices based on muscle signals

Education & Research

• Biomedical engineering experiments

• Signal processing and bio-instrumentation learning

• Arduino and microcontroller training projects

Why Choose EMG Muscle Sensor Module for Arduino?

The EMG Muscle Sensor Module offers an excellent balance of accuracy, ease of use, and affordability, making it ideal for both beginners and advanced developers. Its plug-and-play compatibility with Arduino platforms allows rapid prototyping, while its reliable signal conditioning supports more complex research and development work.

Whether you are building a muscle-controlled robot, experimenting with prosthetic technologies, or teaching biomedical signal processing, this module provides a powerful and flexible solution. Its compact design, low power consumption, and high sensitivity make it a valuable component for innovative projects involving human-machine interaction.

Enhance your bio-signal-based applications with the EMG Muscle Sensor Module for Arduino and unlock the potential of muscle-controlled technology.

Package Includes:

1 x EMG Muscle Sensor Module for Arduino

FAQ

1. Where can we buy this EMG Muscle Sensor Module for Arduino?

This product is available online https://aiiottech.in/product/emg-muscle-sensor-module-for-arduino/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this EMG Muscle Sensor Module for Arduino after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: EMG Muscle Sensor Module with Arduino
