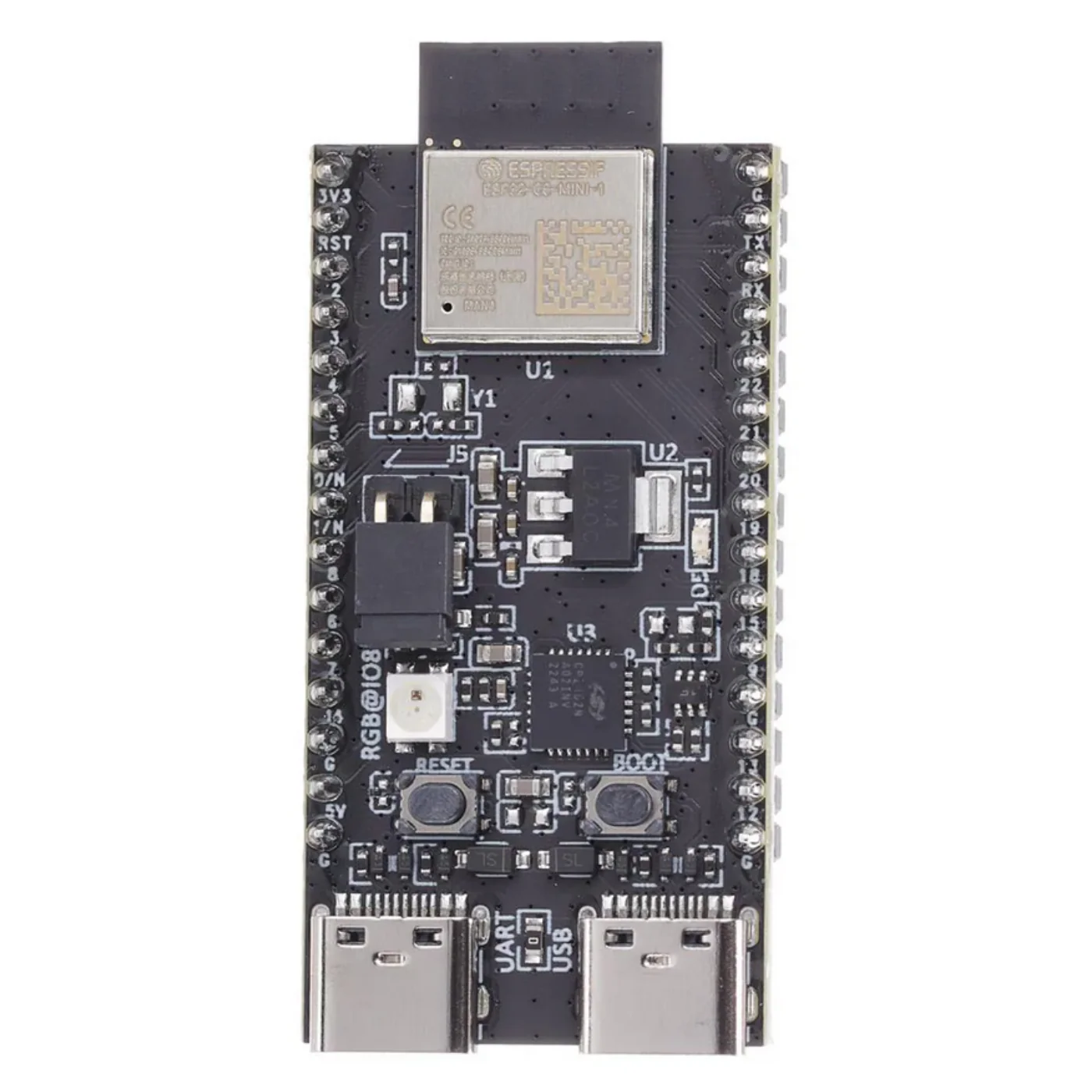

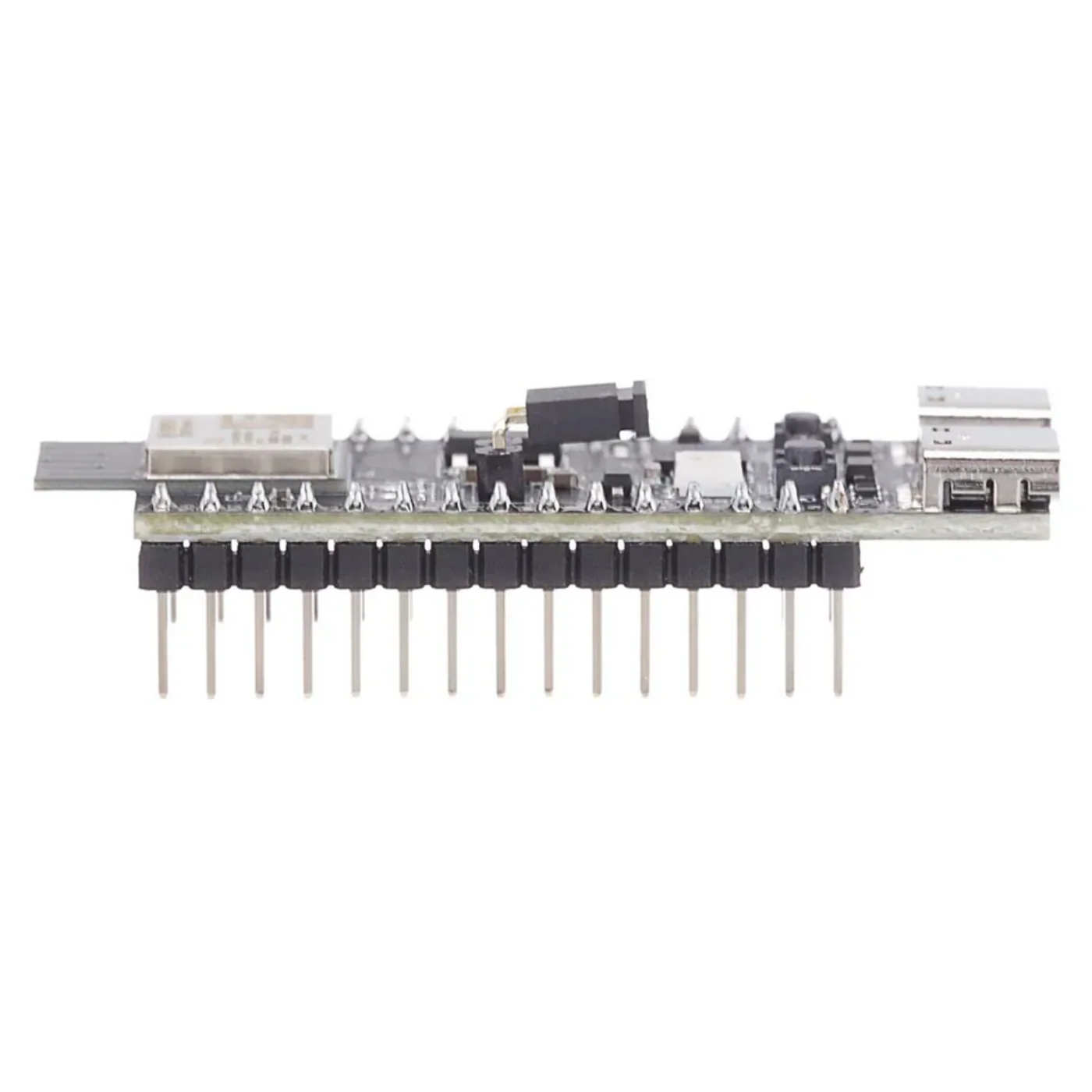

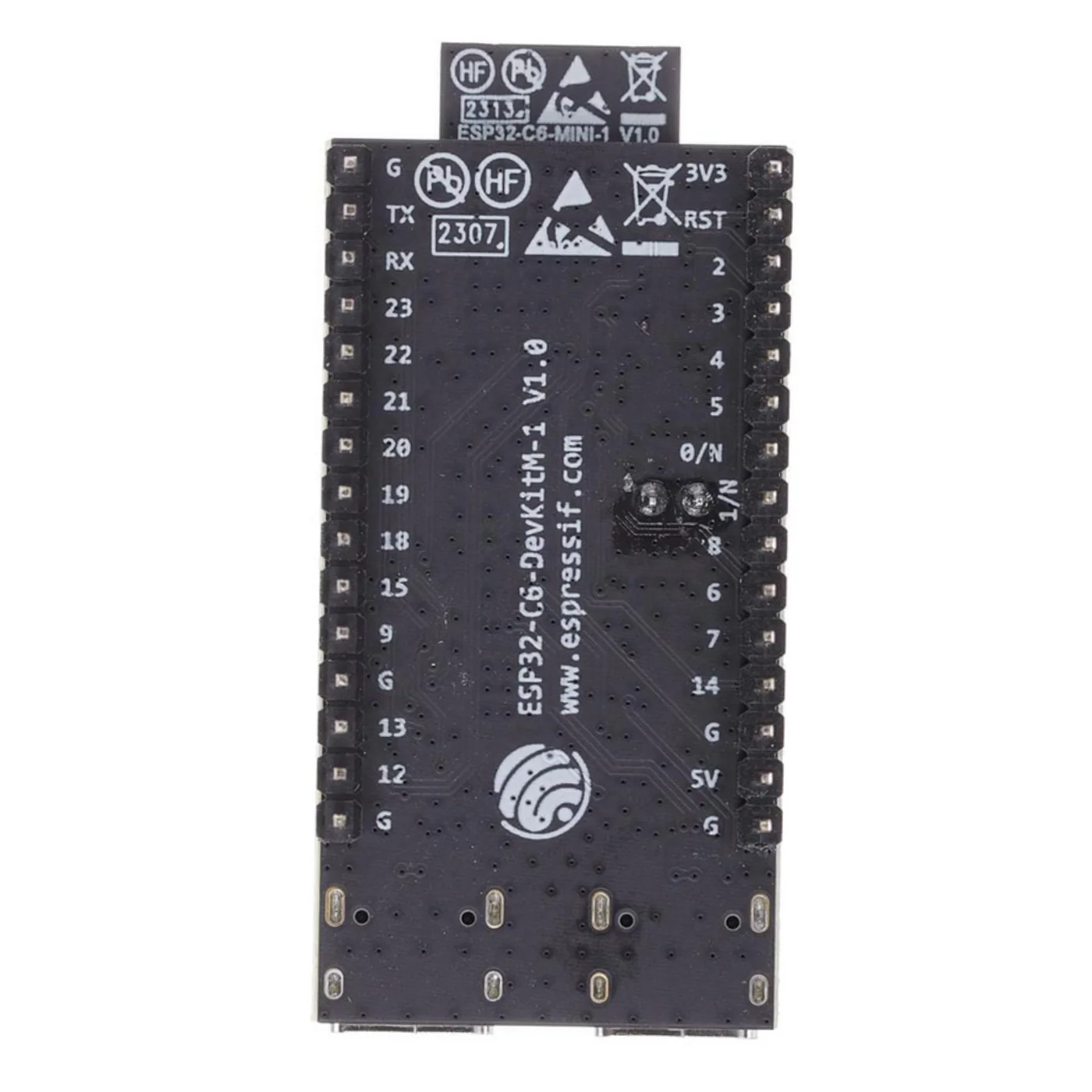

ESP32-C6-DevKitM-1 Development Board (4MB SPI Flash)

ESP32-C6-DevKitM-1 Development Board is a powerful, energy-efficient, and feature-rich IoT development platform designed for next-generation wireless applications. Powered by Espressif’s advanced ESP32-C6 SoC, this board brings together Wi-Fi 6 (802.11ax), Bluetooth 5 Low Energy (LE), and 802.15.4 support for Thread, Zigbee, and Matter. Whether you are building smart home devices, industrial automation systems, wireless sensors, or cloud-connected embedded products, the ESP32-C6-DevKitM-1 offers unmatched flexibility and top-tier performance for modern IoT development.

This development board is ideal for professionals, hobbyists, and researchers looking for enhanced connectivity, low-power operation, and secure data communication. With built-in peripherals, ample GPIOs, and extensive SDK support through ESP-IDF, the ESP32-C6-DevKitM-1 simplifies prototyping, testing, and deployment of IoT solutions.

Key Features of ESP32-C6-DevKitM-1 Development Board

1. Wi-Fi 6 Support for Improved Efficiency and Speed

The ESP32-C6 SoC supports Wi-Fi 6 (802.11ax), giving you enhanced throughput, better power efficiency, and improved performance in dense wireless environments. Target Wake Time (TWT) ensures ultra-low power consumption, making this board perfect for battery-powered IoT devices.

2. Multi-Protocol Wireless Connectivity

In addition to Wi-Fi 6, this board includes:

• Bluetooth 5 LE with long-range support

• IEEE 802.15.4 for Zigbee, Thread, and Matter

This makes the ESP32-C6-DevKitM-1 a versatile choice for smart home and industrial ecosystems.

3. High Performance & Ultra-Low Power MCU

The device integrates a 32-bit RISC-V single-core processor running up to 160 MHz, providing strong computing performance while maintaining low energy usage. Multiple low-power modes ensure extended battery life for portable and remote IoT applications.

4. Rich Peripheral Interfaces

This board includes all necessary interfaces for versatile prototyping:

• GPIOs

• ADC

• SPI

• I2C

• UART

• PWM

• USB Type-C interface for power and programming

5. Built-In Security

With secure boot, hardware cryptography, and flash encryption, the ESP32-C6-DevKitM-1 ensures advanced protection for connected devices.

6. Easy Development & Compatibility

Native support for ESP-IDF, Arduino, and Matter development frameworks makes the board extremely developer-friendly. Pre-soldered module and connectors allow for quick setup and testing.

Specifications of ESP32-C6-DevKitM-1 Development Board

• SoC: ESP32-C6 (RISC-V 32-bit single-core CPU @ up to 160 MHz)

• Wireless Connectivity:

  • Wi-Fi 6 (802.11ax)

  • Bluetooth 5 Low Energy (BLE)

  • IEEE 802.15.4 (Thread, Zigbee, Matter)

• Flash Memory: 4 MB

• Operating Voltage: 3.3V

• Interfaces: GPIO, ADC, SPI, I2C, UART, PWM

• Security Features: Secure boot, Flash encryption, Hardware cryptographic accelerators

• Debugging: JTAG support

• USB: USB Type-C for programming and power

• Dimensions: Compact and breadboard-friendly footprint

• Operating Temperature: –40°C to +85°C

Applications of ESP32-C6-DevKitM-1 Development Board

1. Smart Home & Building Automation

The board is perfect for devices such as smart lighting, connected thermostats, home security systems, door locks, voice assistants, and multi-protocol Matter devices.

2. Industrial IoT & Automation

Use it for wireless sensor networks, asset tracking, predictive maintenance, and secure industrial automation systems requiring low power and long-range connectivity.

3. Wireless Sensors & Wearable Devices

With its ultra-low power modes, the ESP32-C6-DevKitM-1 is suitable for remote environmental sensors, health monitoring devices, and battery-powered IoT products.

4. Gateway & Mesh Networking

Built-in Wi-Fi 6 and 802.15.4 allow you to create Thread, Zigbee, and Matter mesh networks, making it ideal for IoT gateways and interconnected smart systems.

5. Educational & Research Projects

Perfect for students, makers, and researchers exploring RISC-V architecture, wireless networking, or IoT security.
