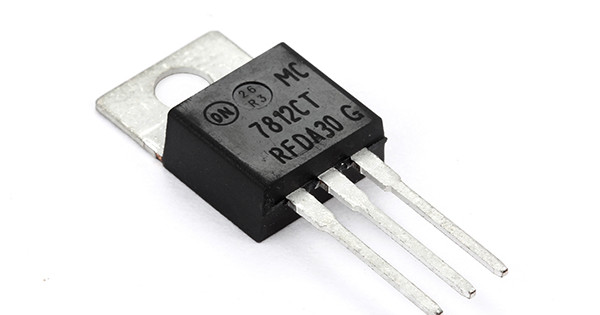

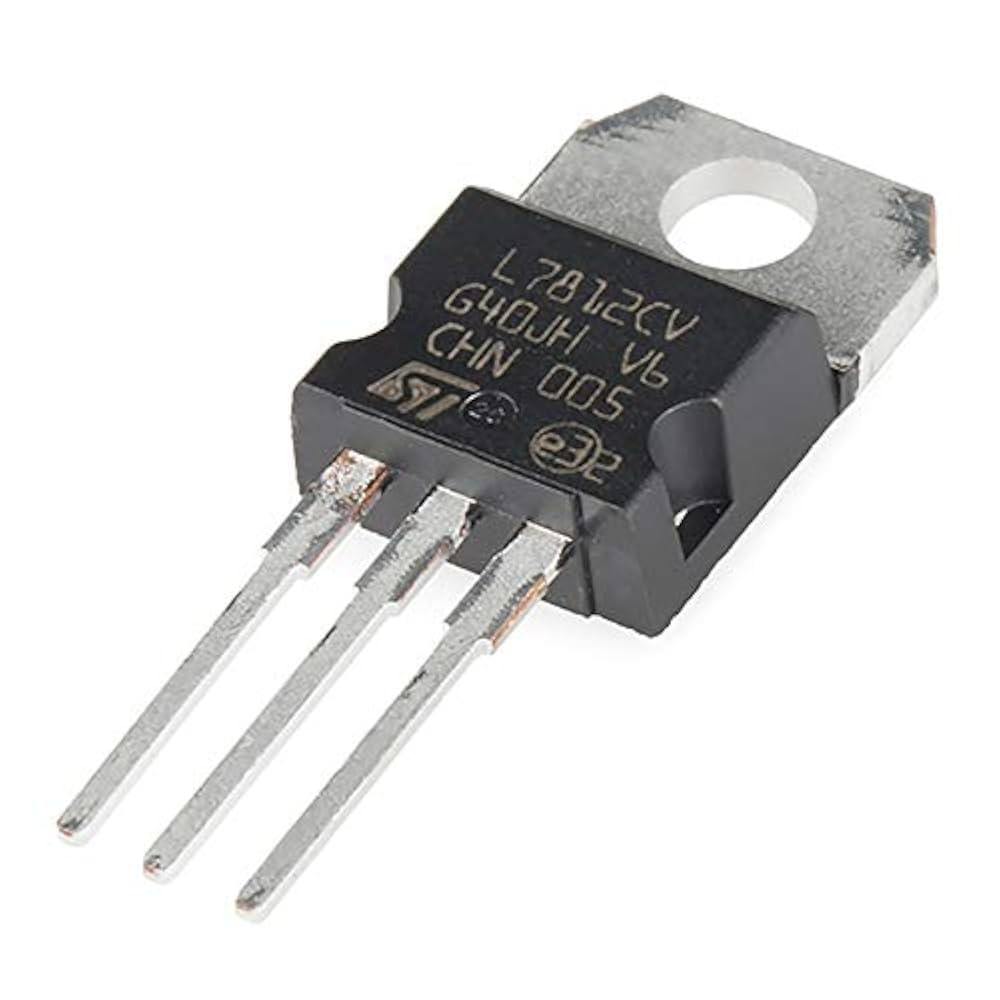

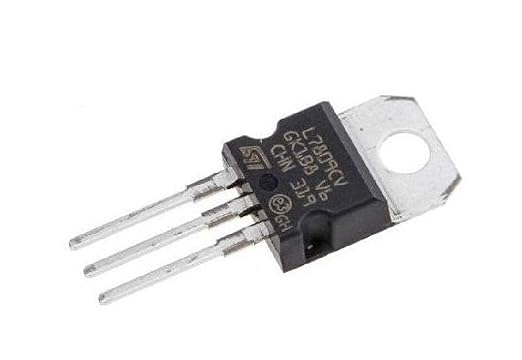

LM7812 Voltage Regulator IC

LM7812 Voltage Regulator IC is one of the most widely used linear voltage regulator integrated circuits, designed to provide a fixed and stable +12V DC output from a higher input voltage source. Belonging to the popular LM78xx series of three-terminal regulators, the LM7812 ensures simplicity, reliability, and efficiency in powering electronic circuits that require a constant 12V supply. With its robust internal circuitry, built-in protections, and ease of integration, it is an essential component for engineers, hobbyists, and professionals working on electronic and electrical systems.

Key Features of LM7812:

1. Fixed +12V DC Output – Provides a regulated 12V output with minimal fluctuation.

2. Input Voltage Range – Operates efficiently with an input supply ranging typically between 14V to 35V.

3. Output Current Capacity – Can deliver up to 1A continuous current with adequate heat sinking.

4. Built-in Protections – Includes thermal shutdown, short-circuit protection, and safe-area protection.

5. Low Ripple and Noise – Ensures stable and clean output suitable for sensitive analog and digital circuits.

6. TO-220 Package – Compact, durable, and easy to mount on PCBs or heatsinks.

Working Principle:

The LM7812 works as a linear regulator, where it maintains a constant output voltage of +12V by dissipating excess input voltage as heat. When connected in a circuit, it compares the input supply voltage with an internal reference and regulates the output to stay fixed at 12V. To enhance stability, external capacitors are often used at the input and output terminals.

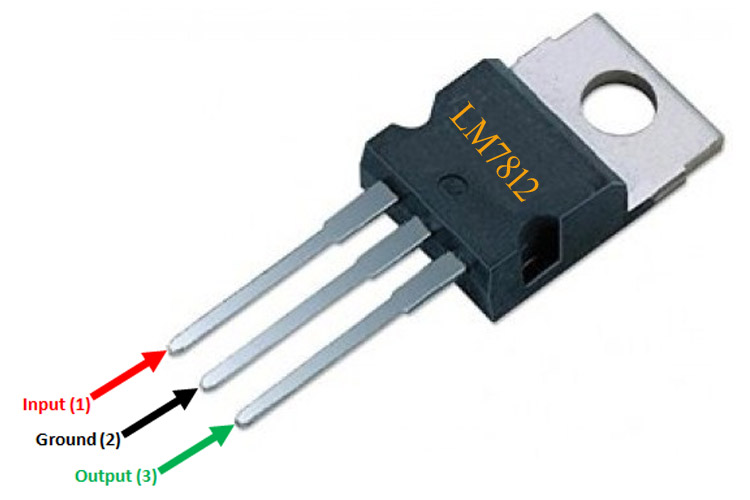

Pin Configuration:

The IC comes in a 3-pin TO-220 package:

1. Pin 1 (Input): Receives the unregulated input voltage.

2. Pin 2 (Ground): Common ground reference.

3. Pin 3 (Output): Provides the regulated +12V DC.

Applications of LM7812:

The LM7812 finds its application across a wide range of electronic projects and industrial systems. Some notable applications include:

• Power Supply Units: Converts unregulated DC from rectifiers into a steady 12V regulated supply.

• Microcontroller & Embedded Systems: Powers circuits that require a constant 12V input.

• Industrial Electronics: Provides regulated voltage to motor drivers, relays, and control systems.

• Communication Equipment: Supplies stable voltage to transmitters, receivers, and RF circuits.

• Consumer Electronics: Used in amplifiers, LED drivers, and home appliances.

• Test and Measurement Equipment: Ensures accurate measurements by eliminating voltage fluctuations.

• Automotive Electronics: Used in dashboard electronics, sensors, and control modules requiring 12V.

Advantages of LM7812 Voltage Regulator IC:

• Stable Output: Provides precise 12V supply without external adjustment.

• Reliability: Built-in protection against overheating and overloading ensures long life.

• Cost-Effective: Widely available and affordable for both students and professionals.

• Ease of Use: Requires minimal external components for operation.

• Versatility: Works in a wide range of electronic applications, from small projects to industrial devices.

Technical Specifications (Typical):

• Output Voltage: +12V DC

• Output Current: Up to 1A

• Input Voltage Range: 14V – 35V

• Voltage Regulation: ±4%

• Dropout Voltage: Around 2V – 3V

• Package: TO-220 (through-hole)

Practical Design Tips:

1. Use an input capacitor (0.33µF) close to the IC to filter input noise.

2. Use an output capacitor (0.1µF – 1µF) for stability and to reduce transients.

3. For higher current loads, attach a heatsink to prevent overheating.

4. Ensure the input voltage is at least 2V higher than the 12V output.

The LM7812 Voltage Regulator IC is a highly reliable and cost-effective solution for powering electronic devices that require a steady +12V DC output. With its simple three-pin design, robust protective features, and broad range of applications, it remains one of the most trusted regulators in the electronics industry. Whether you are building a DIY project, designing a power supply, or working on industrial-grade electronics, the LM7812 is an indispensable component that guarantees stable, safe, and efficient power regulation.
