Load Cell

Load Cell is a highly accurate and reliable force and weight measurement sensor widely used in industrial, commercial, and research applications. Designed to convert mechanical force into an electrical signal, they are essential components in weighing systems, digital scales, industrial automation, and process control applications. With excellent accuracy, repeatability, and long-term stability, it ensure precise measurement even in demanding environments.

Manufactured using advanced strain gauge technology and high-quality alloy steel or aluminum, it provide dependable performance under static and dynamic load conditions. Whether used in laboratory instruments or heavy industrial weighing systems, a load cell delivers consistent and repeatable results, making it an indispensable tool for modern measurement systems.

Key Features

• High Accuracy and Precision
  Offers excellent linearity, repeatability, and low hysteresis for accurate weight and force measurement.

• Robust Construction
  Made from high-strength alloy steel or aluminum for durability and resistance to mechanical stress.

• Wide Load Capacity Range
  Available in multiple capacities ranging from a few grams to several tons, suitable for diverse applications.

• Strain Gauge Technology
  Uses precision strain gauges bonded to the sensing element for stable and reliable signal output.

• Low Power Consumption
  Efficient electrical design ensures minimal power usage, ideal for battery-operated systems.

• High Stability and Reliability
  Maintains consistent performance over long operating periods with minimal drift.

• Easy Integration
  Compatible with standard load cell amplifiers, indicators, microcontrollers, and PLC systems.

Technical Specifications

Specifications may vary depending on load cell type and capacity.

• Sensor Type: Strain Gauge Load Cell

• Load Capacity: 1 kg to 1000 kg (and above, depending on model)

• Rated Output: 1.0 – 3.0 mV/V

• Excitation Voltage: 5 – 12 V DC (typical)

• Accuracy Class: ±0.02% to ±0.05% of full scale

• Non-linearity: ≤ ±0.03% F.S.

• Hysteresis: ≤ ±0.03% F.S.

• Repeatability: ≤ ±0.02% F.S.

• Input Resistance: 380 – 410 Ω

• Output Resistance: 350 – 360 Ω

• Insulation Resistance: ≥ 5000 MΩ

• Operating Temperature Range: –20°C to +65°C

• Overload Protection: 120% to 150% of rated capacity

• Material: Alloy Steel / Aluminum Alloy

• Protection Class: IP65 / IP67 (optional)

Types of Load Cells

They available in various designs to suit different measurement needs:

• Single Point – Ideal for platform scales and bench scales

• Shear Beam – Suitable for industrial weighing and tank weighing

• Bending Beam – Used in low-capacity and medium-capacity scales

• Compression – Designed for heavy load and force measurement

• S-Type – Used for both tension and compression applications

Applications

They are widely used across multiple industries due to their accuracy and versatility:

• Electronic Weighing Scales
  Used in digital scales, retail weighing systems, and laboratory balances.

• Industrial Automation
  Integrated into automated systems for material handling, batching, and process control.

• Tank, Hopper & Silo Weighing
  Accurately measures the weight of stored materials in industrial environments.

• Medical Equipment
  Used in patient weighing systems, infusion pumps, and rehabilitation equipment.

• Aerospace & Automotive Testing
  Measures force, load, and stress during performance and safety testing.

• Robotics & R&D
  Applied in robotics, force feedback systems, and experimental research setups.

• Packaging & Logistics
  Ensures accurate weight measurement for packaging, shipping, and inventory control.

Why Choose Our Load Cell?

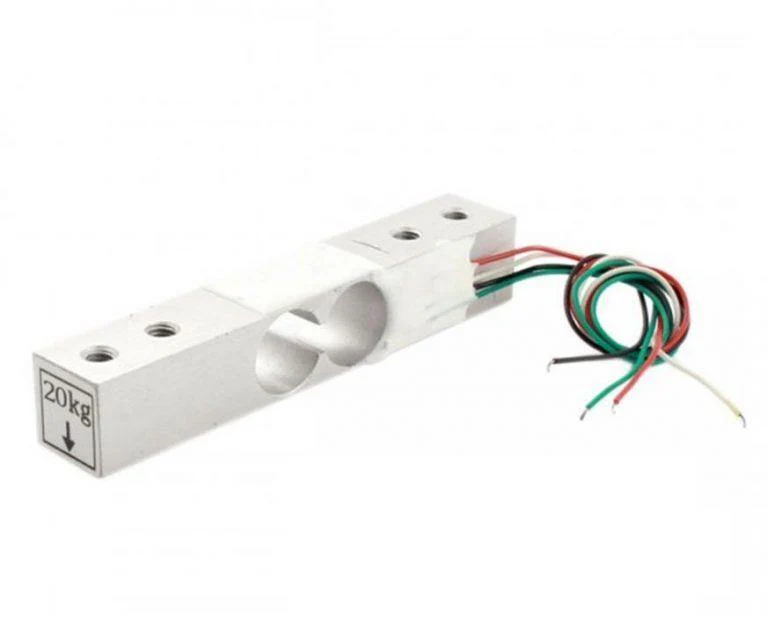

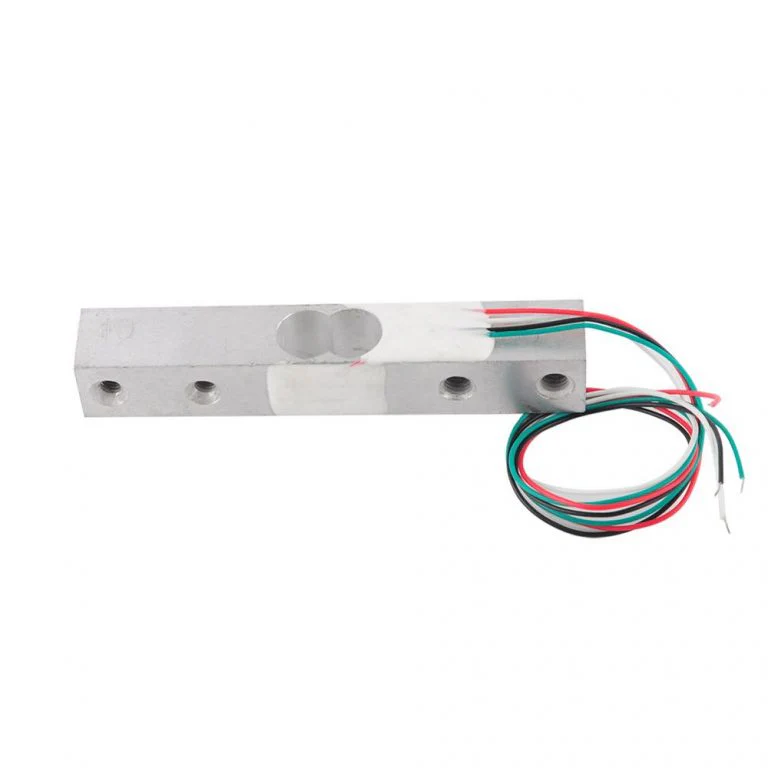

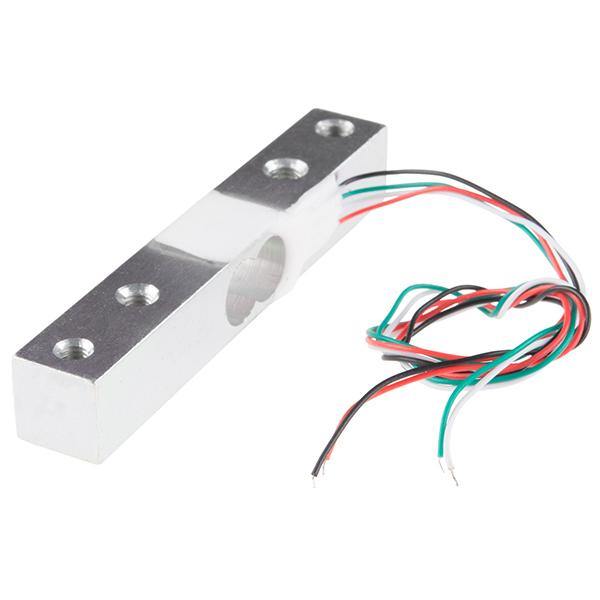

Our 3Kg/20Kg Load Cell offers an optimal combination of precision, durability, and cost-effectiveness. Designed to meet industry standards, it ensures reliable performance even in harsh operating conditions. With easy integration, high sensitivity, and long service life, this load cell is an excellent choice for both industrial and commercial weighing solutions.

Upgrade your measurement system with a high-quality Load Cell and achieve accurate, stable, and reliable weight and force measurement for your applications.

Package Includes:

1 x Load Cell (3Kg/20Kg)

FAQ

1. Where can we buy this 3Kg/20Kg Load Cell?

This product is available online https://aiiottech.in/product/load-cell/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this 3Kg/20Kg Load Cell after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Five Types of Load Cells
