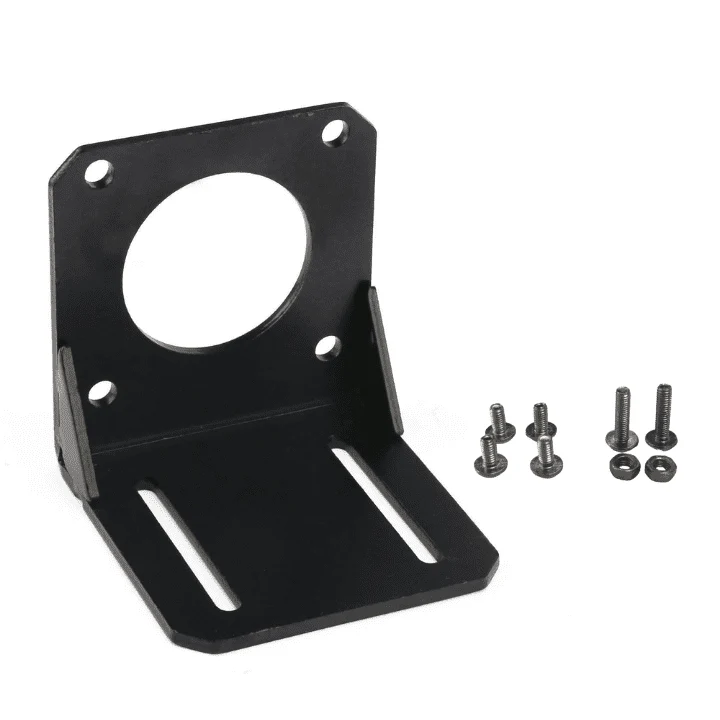

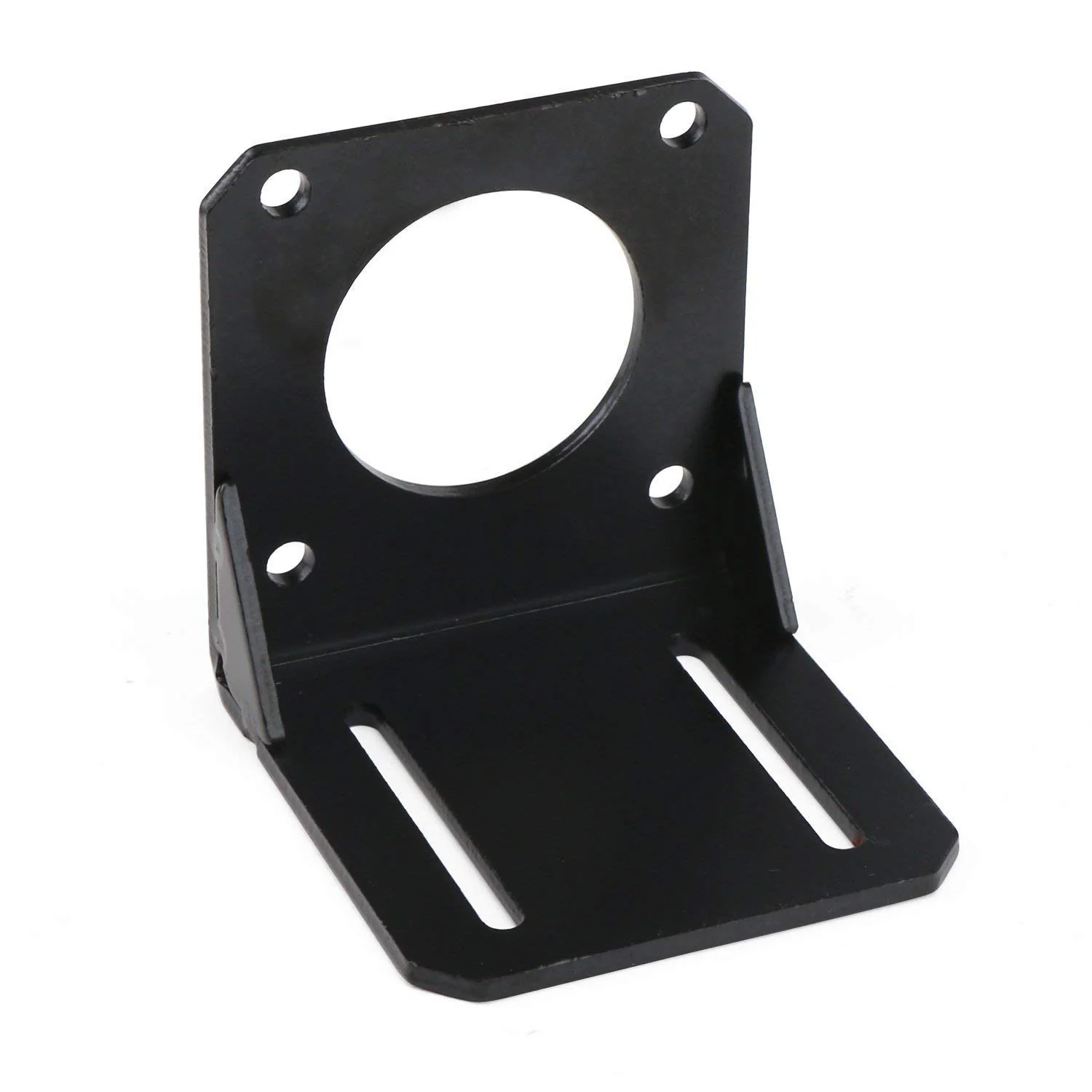

NEMA23 Stepper Motor Mount Bracket

NEMA23 Stepper Motor Mount Bracket is a robust, precision-engineered mounting solution designed to provide superior stability, alignment, and durability for NEMA23 stepper motors used in automation, CNC, and robotics projects. Whether you are building a CNC router, upgrading a 3D printer, or designing a custom motion-control mechanism, this high-quality mount bracket delivers consistent performance, easy installation, and long-lasting reliability. Manufactured from premium-grade materials, the bracket ensures vibration-free operation, accurate motor positioning, and secure attachment in demanding environments.

Designed for both DIY enthusiasts and professional automation developers, the NEMA23 Stepper Motor Mount Bracket offers the perfect combination of strength, precision, and versatility. The bracket follows standard NEMA23 mounting dimensions (57mm motor frame size), ensuring compatibility with a wide range of motors, gearboxes, and linear motion systems. Its design includes strategically placed slots and holes that support flexible mounting orientations, making it ideal for compact spaces and complex system layouts.

The bracket’s high-strength steel or aluminium construction (depending on variant) enhances rigidity and provides excellent resistance against deformation and mechanical load. The smooth, corrosion-resistant surface coating adds protection against rust and environmental damage, which is crucial for CNC machines, outdoor robotics, and industrial automation applications. With reinforced structural bends and a stable base, this mount bracket minimizes motor vibration, resulting in smoother motion, higher accuracy, and reduced mechanical wear on connected components such as couplers, leadscrews, and belts.

Installing the NEMA23 Stepper Motor Mount Bracket is exceptionally easy. It includes standardized mounting holes that align perfectly with NEMA23 motor faceplate holes, allowing quick attachment using commonly available screws. The elongated slots on the base provide flexibility in positioning the bracket on different machine frames, extrusion profiles (like 2020 and 3030 aluminum extrusions), wooden frames, or metal assemblies. Its universal fit design makes it compatible with most brands of NEMA23 stepper motors, including high-torque and hybrid models.

For CNC builders, the bracket offers exceptional stability for applications such as axis drive systems, spindle positioning, and linear actuator rigs. For 3D printers, it supports reliable stepper-driven motion for extruders and Z-axis designs. In industrial automation, it enables accurate motor placement in conveyor systems, robotic arms, packaging machinery, and material-handling equipment. Hobbyists working on DIY robotics or educational engineering projects will appreciate the bracket’s ease of use, precision design, and long service life.

If you are looking for a strong, reliable, and versatile mounting solution for your NEMA23 motors, this bracket is an essential component that guarantees structural integrity and smooth motion performance in any stepper-driven system.

Key Features

• High-strength steel/aluminum construction for superior durability and load-bearing capability

• Corrosion-resistant surface finish for long life and protection in harsh environments

• Exact NEMA23 mounting hole pattern (57mm) ensuring universal compatibility

• Reinforced structural bends for enhanced rigidity and reduced motor vibration

• Multiple mounting slots and holes allowing flexible installation and alignment

• Compatible with CNC, 3D printers, robotics, and automation systems

• Lightweight yet strong design, ideal for precise motion-control applications

• Easy installation with standard screws and tools

• Stable base design ensures accurate motor positioning

• Supports high-torque NEMA23 motors without deformation

Specifications

• Compatible Motor Type: NEMA23 Stepper Motor (57mm frame size)

• Material: Steel or Aluminum (variant-dependent)

• Surface Finish: Powder-coated / Anodized (as applicable)

• Thickness: 2mm–3mm (typ.)

• Mounting Hole Pattern: Standard NEMA23 (47.14mm × 47.14mm bolt spacing)

• Base Mounting Slots: Multiple elongated slots for flexible installation

• Color: Black / Silver (depending on model)

• Dimensions: Standard NEMA23 bracket size (~60mm × 55mm × 90mm)

• Weight: 80–120g (approx.)

Applications

• CNC machines (routers, mills, engravers)

• 3D printers (extruder assemblies, Z-axis mounts)

• Robotics (robotic arms, wheeled robots)

• Automation systems and machinery

• DIY engineering and prototyping projects

• Linear actuators and motion-control mechanisms

• Conveyor systems and material-handling equipment

Package Includes:

1 x NEMA23 Stepper Motor Mount Bracket
