Preset Potentiometers (100Ω – 500kΩ)

Preset Potentiometers, also known as trimmer potentiometers or presets, are compact variable resistors designed for fine tuning, calibration, and adjustment of electronic circuits. Unlike panel-mounted potentiometers, preset potentiometers are intended for infrequent adjustments and are usually set during manufacturing, testing, or maintenance of electronic equipment.

These components play a critical role in achieving accurate voltage, current, and signal control in a wide range of analog and digital circuits. Their small footprint, stability, and precision make them an essential choice for PCBs, embedded systems, power supplies, and industrial electronics.

Manufactured using high-quality resistive elements and durable housings, preset potentiometers ensure consistent performance, minimal drift, and long operational life, even in demanding environments.

Key Features of Preset Potentiometers

• Precise Circuit Adjustment
  Enables fine tuning of voltage levels, current limits, gain control, and signal calibration.

• Compact & PCB-Friendly Design
  Small size allows easy mounting on printed circuit boards without occupying excess space.

• High Stability & Reliability
  Designed to maintain resistance value over time with low temperature and mechanical drift.

• Single-Turn & Multi-Turn Options
  Available in both single-turn presets for quick adjustment and multi-turn presets for high-precision tuning.

• Wide Resistance Range
  Offered in various resistance values to suit diverse circuit requirements.

• Multiple Mounting Orientations
  Available in top-adjust, side-adjust, vertical, and horizontal mounting configurations.

• Durable Construction
  Robust housing and quality contact materials ensure long service life and consistent operation.

Technical Specifications – Preset Potentiometers

• Component Type: Preset / Trimmer Potentiometer

• Resistance Range: 100Ω to 10MΩ (common values available)

• Tolerance: ±10% to ±20%

• Power Rating: 0.1W to 0.5W (depending on model)

• Adjustment Type: Single-turn or Multi-turn

• Number of Pins: 3

• Mounting Type: Through-hole PCB mounting

• Adjustment Orientation: Top adjust / Side adjust

• Temperature Coefficient: ±100 ppm/°C (typical)

• Operating Temperature: –40°C to +85°C

• Insulation Resistance: ≥100 MΩ

• Rotational Life: Up to 200 cycles (single-turn), higher for multi-turn types

Specifications may vary depending on the preset type and manufacturer.

Applications of Preset Potentiometers

Preset potentiometers are widely used across consumer, industrial, and educational electronics where precise calibration and tuning are required. Common applications include:

Electronic Circuit Calibration

Used to adjust reference voltages, offset correction, and signal balancing in analog circuits.

Power Supply & SMPS Units

Ideal for setting output voltage, current limits, and feedback control in power supply designs.

Audio & Signal Processing Equipment

Used for gain control, signal trimming, and balance adjustment in amplifiers and audio circuits.

Embedded Systems & Microcontroller Projects

Commonly used in Arduino, Raspberry Pi, and microcontroller-based circuits for parameter tuning.

Industrial Control Systems

Applied in sensor calibration, motor control circuits, and automation equipment.

Medical & Laboratory Instruments

Used for fine adjustments in measurement, monitoring, and diagnostic equipment.

Educational & Prototyping Applications

Perfect for testing, learning, and experimental circuit development in labs and training institutions.

Why Choose Our Preset Potentiometers?

Our high-quality preset potentiometers are designed to deliver accuracy, durability, and consistent performance across a wide range of applications. With multiple resistance values, adjustment types, and mounting styles available, they provide a flexible solution for both professional engineers and electronics hobbyists.

These presets are manufactured to meet industry standards, ensuring stable resistance, smooth adjustment, and long-term reliability. Whether you are designing a production-ready PCB or fine-tuning a prototype, these potentiometers offer dependable and precise control.

Preset Potentiometers are essential components for accurate calibration and adjustment in electronic circuits. Their compact design, reliability, and precision make them indispensable in modern electronics, from power supplies and audio systems to industrial automation and embedded projects.

Choose Preset Potentiometers for dependable circuit tuning and optimized performance in your electronic designs.

Package Includes:

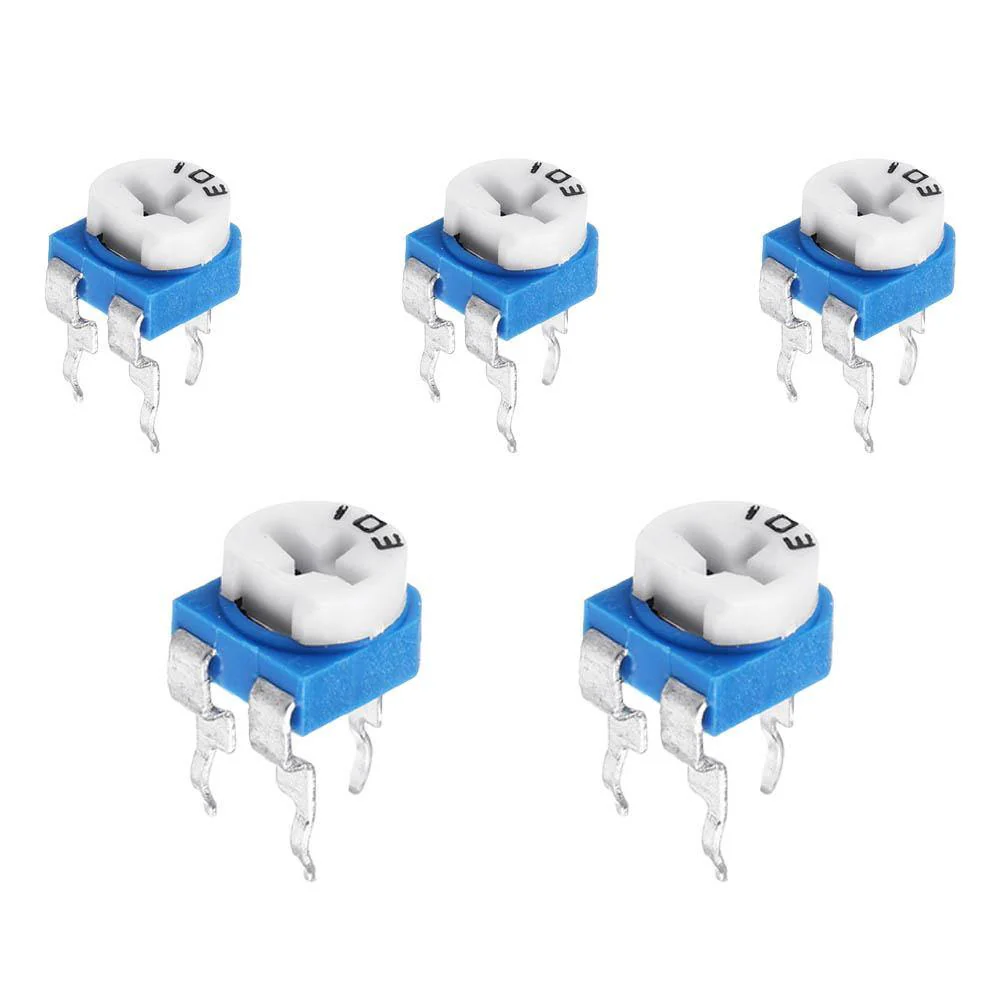

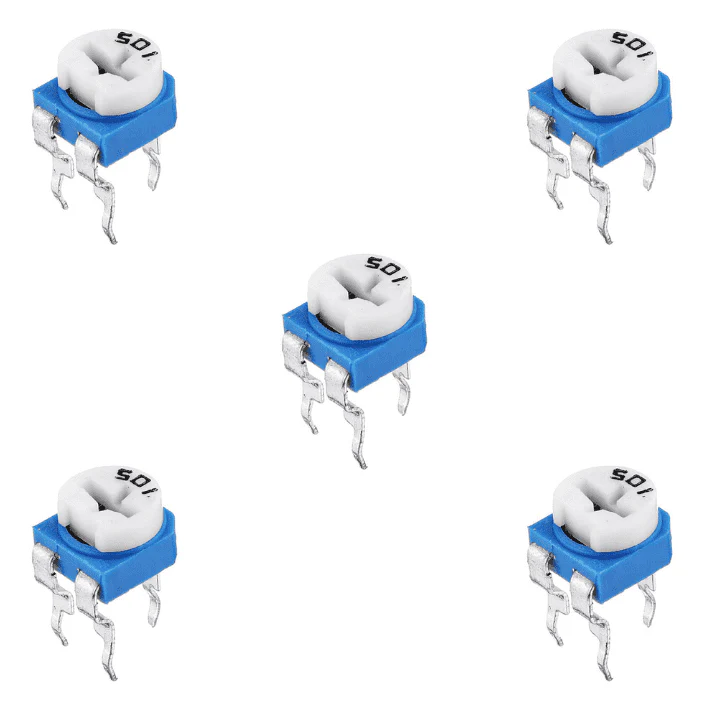

1 x Preset Potentiometers (100Ω/500E/1kΩ/2kΩ/10kΩ/50kΩ/200kΩ/500kΩ)
