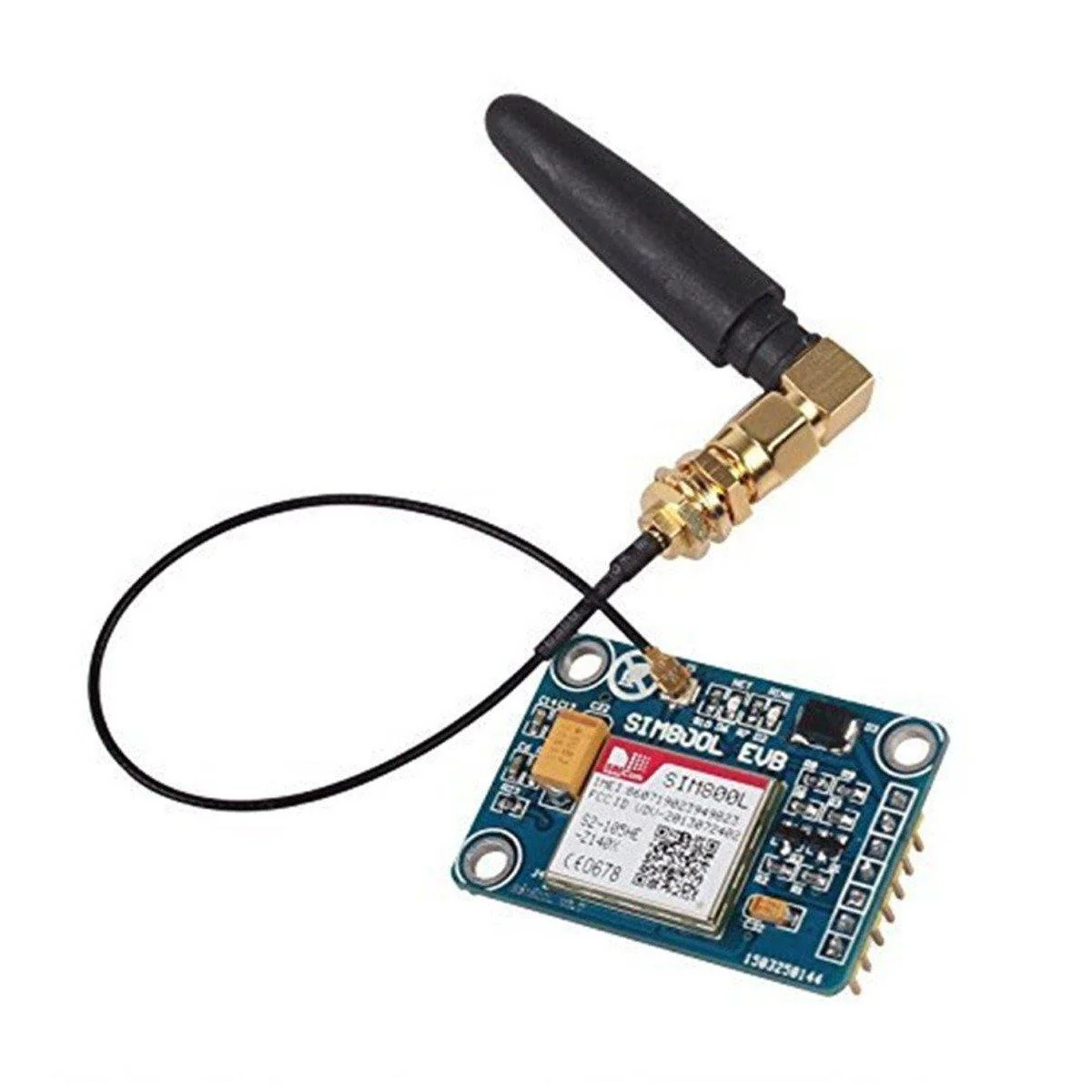

SIM800L V2 GSM GPRS Module with Antenna

SIM800L V2 GSM GPRS Module with Antenna is a compact, high-performance wireless communication module designed for reliable GSM and GPRS connectivity in embedded systems and IoT applications. Based on the popular SIM800 chipset, this module supports quad-band GSM operation, enabling seamless global communication for voice, SMS, and data transmission. Its small size, low power consumption, and wide compatibility make it an ideal choice for developers, students, and professionals working on wireless communication projects.

The SIM800L V2 module operates on standard GSM frequencies and provides stable performance even in challenging network environments. Supplied with an external antenna, it ensures improved signal reception and transmission, making it suitable for remote monitoring, automation, and tracking applications. With support for AT commands, the module can be easily interfaced with popular microcontrollers such as Arduino, ESP32, Raspberry Pi, and ARM-based development boards.

Key Features of SIM800L V2 GSM GPRS Module

• Quad-Band GSM Support
  Operates on GSM 850 / 900 / 1800 / 1900 MHz, ensuring worldwide compatibility.

• GPRS Multi-Slot Class 10
  Enables reliable packet data communication for IoT and M2M applications.

• Voice, SMS, and Data Support
  Supports voice calls, SMS text messaging, and GPRS data transfer.

• Compact and Lightweight Design
  Small form factor makes it ideal for space-constrained embedded projects.

• Low Power Consumption
  Optimized for battery-powered applications with sleep and idle modes.

• External Antenna Included
  Improves signal strength and communication reliability.

• AT Command Interface
  Easy integration with microcontrollers and development platforms.

• Wide Operating Voltage Range
  Designed for flexible power supply configurations with proper regulation.

Specifications of SIM800L V2 GSM GPRS Module

• Model: SIM800L V2

• Chipset: SIM800

• Network Type: GSM / GPRS

• Frequency Bands: GSM 850 / 900 / 1800 / 1900 MHz

• GPRS: Multi-slot Class 10

• Data Speed:

  • GPRS: Up to 85.6 kbps (download), 42.8 kbps (upload)

• Supply Voltage: 3.7V – 4.2V DC (typical Li-ion battery supply)

• Current Consumption:

  • Sleep mode: ~1 mA

  • Peak current: Up to 2A during transmission bursts

• Communication Interface: UART (TX, RX)

• SIM Interface: Standard SIM card support

• Antenna Type: External GSM antenna (included)

• Operating Temperature: -40°C to +85°C

• Dimensions: Ultra-compact module size suitable for embedded systems

Note: A stable power supply capable of delivering high peak currents is recommended for reliable operation.

Applications of SIM800L V2 GSM GPRS Module

The SIM800L V2 GSM GPRS Module is widely used across multiple industries and project types due to its versatility and cost-effectiveness. Common applications include:

• IoT and M2M Communication
  Ideal for Internet of Things projects requiring GSM-based connectivity.

• Remote Monitoring Systems
  Used in weather stations, energy meters, and industrial monitoring solutions.

• GPS Tracking Devices
  Frequently paired with GPS modules for vehicle and asset tracking systems.

• Home and Industrial Automation
  Enables remote control and status updates via SMS or GPRS.

• Security and Alarm Systems
  Sends real-time alerts and notifications during security breaches.

• Smart Agriculture
  Used for soil monitoring, irrigation control, and farm automation.

• Student and Research Projects
  Popular choice for academic projects and prototype development.

Why Choose SIM800L V2 GSM GPRS Module?

The SIM800L V2 GSM GPRS Module with Antenna stands out due to its reliability, compact size, and extensive feature set. It offers a cost-effective solution for adding GSM connectivity to embedded systems without compromising performance. With global frequency support, low power consumption, and simple UART communication, this module significantly reduces development time and complexity.

Whether you are building a commercial IoT product, a research prototype, or a DIY electronics project, the SIM800L V2 GSM GPRS Module provides a proven and trusted GSM/GPRS communication platform.

Package Includes:

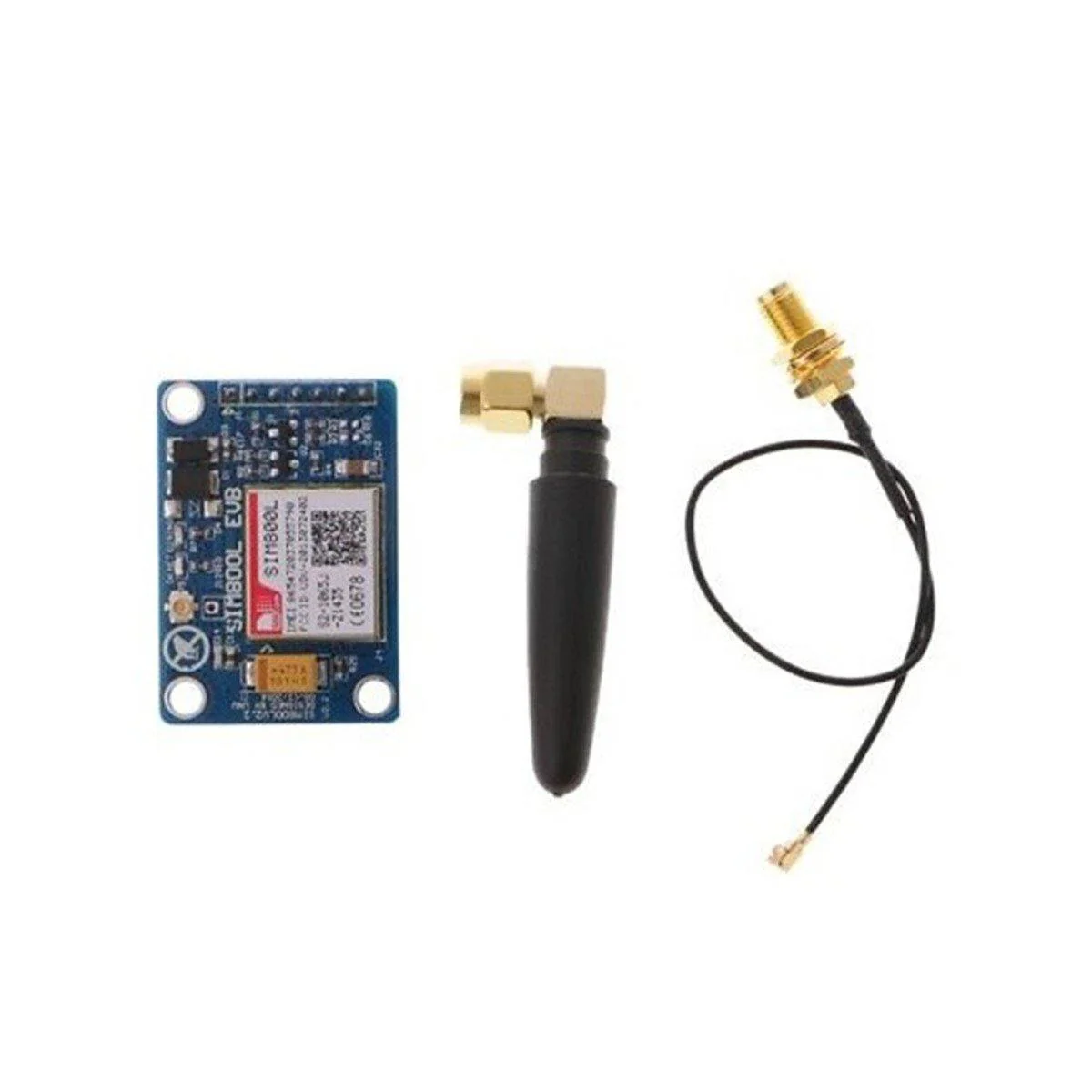

1 x SIM800L V2 GSM GPRS Module with Antenna

FAQ

1. Where can we buy this SIM800L V2 GSM GPRS Module with Antenna?

This product is available online at https://aiiottech.in/product/sim800l-v2-gsm-gprs-module-with-antenna/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this SIM800L V2 GSM GPRS Module with Antenna after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: Unboxing SIM800L (V2) GSM
