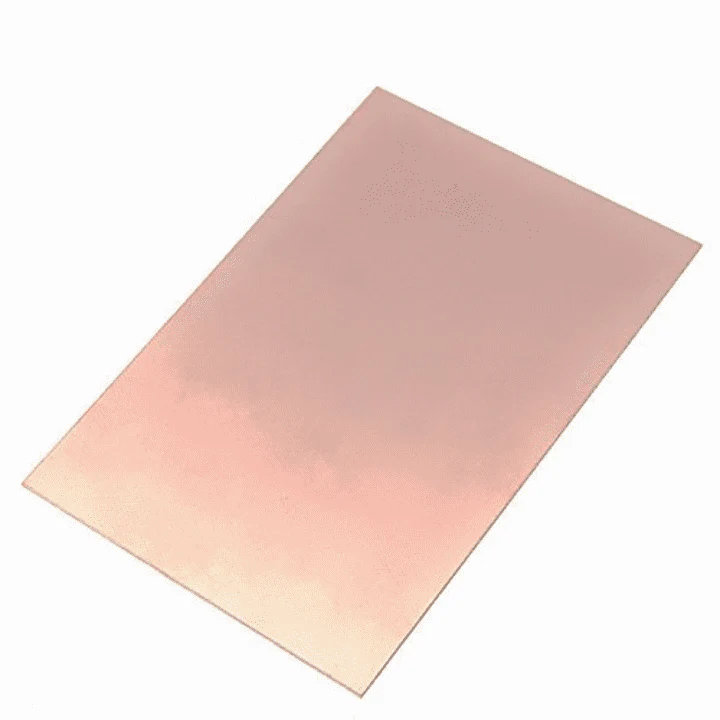

Single Side Copper Clad Laminate PCB Board

Single Side Copper Clad Laminate PCB Board is an essential substrate used for designing, developing, and manufacturing electronic circuits. Engineered to provide excellent electrical insulation, superior mechanical strength, and consistent copper adhesion, this board forms the foundation of reliable printed circuit boards used across various applications. Whether you are an electronics hobbyist, a student, or a professional engineer engaged in prototyping or small-scale PCB manufacturing, this copper clad laminate offers the perfect combination of quality, durability, and performance.

Manufactured with a premium-grade insulating base material and coated with a uniform electro-deposited copper layer, the board ensures stable conductivity and a smooth surface for effortless etching. It supports highly precise track formation, making it suitable for designing analog, digital, RF, and mixed-signal circuits. With excellent solderability, heat resistance, and dimensional stability, the Single Side Copper Clad Laminate PCB Board is a dependable choice for all electronic design needs.

Key Features

✔ High-Quality Copper Layer

The board features a uniform copper foil layer that ensures smooth etching, excellent conductivity, and consistent circuit performance. It supports both fine-pitch and wide-range track designs, ideal for professional and hobby applications.

✔ Durable and Rigid Base Material

Made from high-strength FR-1, FR-2, CEM-1, or FR-4 grade materials, the laminate provides outstanding electrical insulation and mechanical durability. It remains stable under thermal stress, ensuring long-lasting circuit reliability.

✔ Excellent Solderability

The copper surface offers easy solder flow, making component assembly simple and secure. It prevents oxidation and supports both leaded and lead-free soldering techniques.

✔ Smooth and Flat Surface

The board maintains a uniform finish that prevents track damage and ensures precise circuit printing. Its smooth texture supports toner transfer, photoresist etching, and CNC milling methods.

✔ Versatile and Easy to Work With

Cutting, drilling, milling, and shaping can be performed with standard tools. This makes the board ideal for rapid prototyping, academic projects, experimentation, and DIY electronics.

✔ Cost-Effective Solution

Single side laminates are economical compared to multilayer boards, offering excellent value without compromising quality and performance.

Specifications

• Base Material: FR-1 / FR-2 (Phenolic Paper), CEM-1 (Composite Epoxy), or FR-4 (Glass Epoxy)

• Copper Thickness: 35µm (1 oz), 50µm, or 70µm options

• Board Thickness: 1.0mm / 1.2mm / 1.6mm (standard)

• Surface Finish: Smooth, oxidation-resistant copper foil

• Dimensions (Common Sizes):

  • 100mm × 150mm

  • 150mm × 200mm

  • 200mm × 300mm

  • Custom sizes available

• Solderability: Excellent, supports leaded & RoHS-compliant soldering

• Thermal Resistance: High, suitable for high-temperature soldering

• Adhesion Strength: Strong copper-to-substrate bonding

• Machinability: Easy to drill, cut, and process

Applications

The Single Side Copper Clad Laminate PCB Board is widely used in:

✔ Educational & Training Projects

Ideal for basic electronics training, laboratory experiments, engineering coursework, and DIY electronic builds.

✔ Prototyping & Circuit Development

Perfect for designing and testing analog circuits, digital circuits, microcontroller boards, sensor circuits, amplifiers, and power supply modules.

✔ Hobby Electronics & DIY Projects

Electronics enthusiasts can easily create custom PCBs for gadgets, robotics, RC controllers, automation projects, LED drivers, and more.

✔ Small-Scale PCB Fabrication

Used by small industries, workshops, and repair professionals for developing quick, reliable, and low-cost circuit boards.

✔ Etching & CNC Milling Applications

Supports multiple PCB creation techniques such as chemical etching, photoresist methods, and CNC milling for custom layouts.

Why Choose This Copper Clad Laminate?

This PCB laminate offers a perfect blend of strength, conductivity, and ease of use—making it a preferred choice for anyone looking to create stable and high-quality electronics. Its excellent insulation, reliable copper bonding, and compatibility with multiple fabrication methods ensure superior circuit performance every time.
