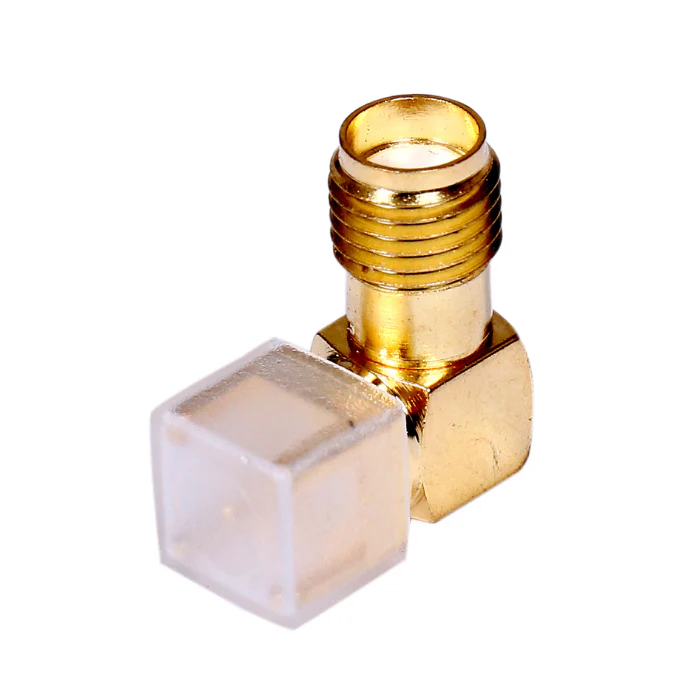

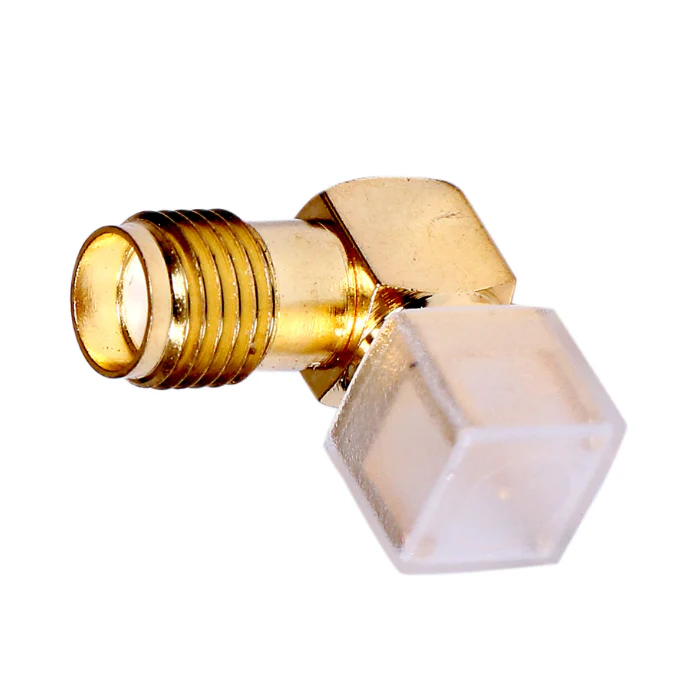

SMA Female Right Angle Connector

SMA Female Right Angle Connector is a precision-engineered RF connector designed to deliver stable, low-loss signal transmission in compact and space-constrained electronic systems. Widely used in RF, microwave, and communication applications, this connector combines robust mechanical strength with excellent electrical performance. Its right-angle design allows efficient PCB layout optimization while maintaining consistent impedance, making it an ideal choice for modern high-frequency circuits.

Manufactured with high-quality materials and precise tolerances, the SMA Female Right Angle Connector ensures dependable connectivity for demanding environments. Whether used in wireless communication modules, test equipment, antennas, or embedded systems, this connector offers long-term reliability, easy installation, and superior signal integrity.

Key Features of SMA Female Right Angle Connector

• Right Angle Configuration
  Designed to save space and enable flexible PCB routing, ideal for compact electronic assemblies.

• 50 Ohm Characteristic Impedance
  Ensures impedance matching for minimal signal reflection and maximum power transfer.

• Wide Frequency Range Support
  Suitable for RF and microwave applications, typically supporting frequencies up to 18 GHz.

• Low VSWR and Insertion Loss
  Maintains excellent signal quality with reduced attenuation and minimal distortion.

• Durable Construction
  Made from high-grade brass with gold-plated contacts for enhanced conductivity and corrosion resistance.

• Secure SMA Interface
  Threaded coupling mechanism ensures strong mechanical stability and reliable electrical connection.

• Easy PCB Mounting
  Designed for straightforward soldering and secure attachment on printed circuit boards.

Specifications

• Connector Type: SMA Female

• Orientation: Right Angle

• Impedance: 50 Ohms

• Frequency Range: DC to 18 GHz (typical)

• VSWR: ≤ 1.3 (typical)

• Contact Material: Brass

• Contact Plating: Gold Plated

• Body Material: Brass

• Body Plating: Nickel or Gold (depending on variant)

• Dielectric Material: PTFE

• Mounting Type: PCB Mount

• Coupling Mechanism: Threaded

• Operating Temperature: –55°C to +165°C

• RoHS Compliance: Yes

Note: Specifications may vary slightly based on manufacturer and model.

Applications of SMA Female Right Angle Connector

The SMA Female Right Angle Connector is widely used across various industries due to its compact design and reliable RF performance:

• Wireless Communication Systems
  Used in Wi-Fi modules, Bluetooth devices, LTE/5G equipment, and RF transceivers.

• RF and Microwave Circuits
  Ideal for high-frequency signal routing in RF amplifiers, filters, and oscillators.

• Antenna Connections
  Commonly used to connect antennas in routers, access points, and embedded communication devices.

• Test and Measurement Equipment
  Suitable for signal generators, spectrum analyzers, and RF test setups requiring accurate signal transmission.

• Industrial Electronics
  Used in automation systems, remote monitoring units, and control panels.

• Embedded and IoT Devices
  Perfect for compact PCB designs in IoT modules and smart electronic products.

• Defense and Aerospace Electronics
  Reliable choice for mission-critical systems requiring stable RF performance under harsh conditions.

Why Choose the SMA Female Right Angle Connector?

The SMA Female Right Angle Connector stands out for its excellent balance of performance, durability, and space efficiency. Its right-angle structure minimizes stress on cables and PCBs, while the precision SMA interface ensures secure connections even in high-vibration environments. The use of premium materials and gold-plated contacts guarantees long service life and consistent electrical performance.

Engineered to meet modern RF and microwave requirements, this connector supports high-speed signal transmission with minimal loss. Whether you are designing communication hardware, testing RF circuits, or integrating antennas into compact devices, the 1SMA Female Right Angle Connector provides a dependable and cost-effective solution.

This connector is an essential component for engineers and designers seeking reliable RF connectivity in space-efficient electronic designs.
