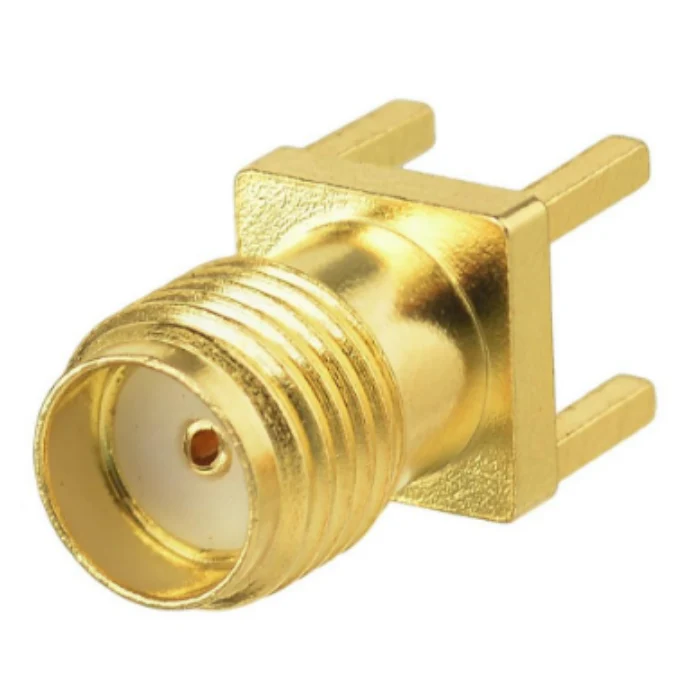

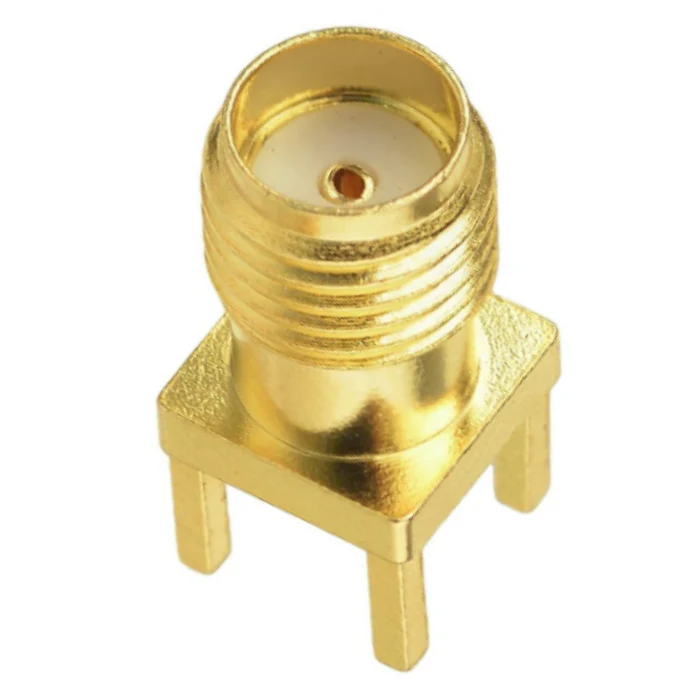

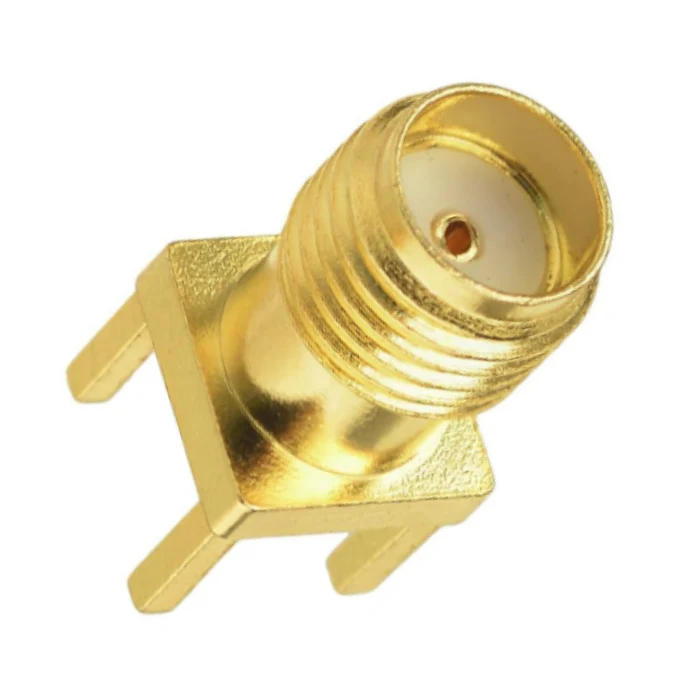

SMA Straight Connector for PCB Mount

SMA Straight Connector for PCB Mount is a high-performance RF coaxial connector designed for secure, low-loss signal transmission in high-frequency electronic applications. Known for its compact size, excellent impedance matching, and superior durability, this connector is widely used in RF communication, wireless systems, and precision electronic circuits. Engineered to support frequencies up to 18 GHz, the SMA PCB mount connector ensures consistent electrical performance and mechanical stability in demanding environments.

Manufactured with precision-machined components and high-quality materials, the SMA straight PCB mount connector provides strong electrical contact, excellent shielding effectiveness, and long service life. It is ideal for applications where space constraints, signal integrity, and reliability are critical.

Key Features of SMA Straight Connector for PCB Mount

• High-Frequency Performance
  Designed to operate efficiently up to 18 GHz, ensuring minimal signal loss and stable impedance for RF and microwave applications.

• 50 Ohm Impedance Matching
  Maintains accurate 50Ω impedance, reducing signal reflection and ensuring high signal integrity.

• Compact and Space-Saving Design
  The straight PCB mount configuration allows easy integration into dense PCB layouts without compromising performance.

• Durable Construction
  Made from high-quality brass or stainless steel with gold-plated or nickel-plated contacts for excellent conductivity and corrosion resistance.

• Secure Mechanical Stability
  Provides strong PCB retention, ensuring vibration resistance and long-term reliability.

• Low VSWR and Insertion Loss
  Ensures optimal RF performance for sensitive communication systems.

• Easy Installation
  Compatible with standard PCB mounting techniques such as through-hole or surface mount, enabling fast assembly and maintenance.

Specifications – SMA Straight Connector for PCB Mount

• Connector Type: SMA Straight

• Mounting Type: PCB Mount

• Gender: Male / Female (variant dependent)

• Impedance: 50 Ohms

• Frequency Range: DC to 18 GHz

• VSWR: ≤ 1.3 (typical)

• Insertion Loss: ≤ 0.2 dB

• Dielectric Material: PTFE

• Contact Material: Brass

• Contact Plating: Gold / Nickel

• Body Material: Brass / Stainless Steel

• Operating Temperature: –40°C to +85°C

• Termination Style: Solder

• Orientation: Straight

Applications of SMA Straight PCB Mount Connector

The SMA Straight Connector for PCB Mount is widely used across industries that require high-frequency signal accuracy and dependable connectivity:

• RF and Microwave Circuits
  Ideal for amplifiers, oscillators, mixers, and RF modules operating at microwave frequencies.

• Wireless Communication Systems
  Used in Wi-Fi, Bluetooth, GSM, LTE, 5G, and IoT devices for reliable antenna and RF module connections.

• Test and Measurement Equipment
  Commonly found in spectrum analyzers, signal generators, and network analyzers.

• Aerospace and Defense Electronics
  Suitable for radar systems, navigation equipment, and secure communication devices.

• Telecommunication Infrastructure
  Used in base stations, repeaters, and RF distribution units.

• Automotive Electronics
  Applied in GPS modules, vehicle communication systems, and ADAS applications.

• Embedded Systems and Prototyping
  Preferred by engineers and designers for PCB-level RF signal routing and development projects.

Why Choose Our SMA Straight Connector for PCB Mount?

Our SMA Straight PCB Mount Connector is engineered to deliver exceptional RF performance, mechanical reliability, and long-term durability. Each connector undergoes strict quality checks to ensure compliance with industry standards and consistent electrical characteristics. Whether you are designing high-speed communication equipment or precision RF test systems, this connector provides a dependable solution for professional and industrial applications.

Package Includes:

1 x SMA Straight Connector for PCB Mount

FAQ

1. Where can we buy this SMA Straight Connector for PCB Mount?

This product is available online at https://aiiottech.in/product/sma-straight-connector-for-pcb-mount/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this SMA Straight Connector for PCB Mount after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

3. How this SMA Straight Connector for PCB Mount is better than other similar product?

Offers superior high-frequency performance, precise 50-ohm impedance, low loss, durable construction, and reliable PCB mounting.
