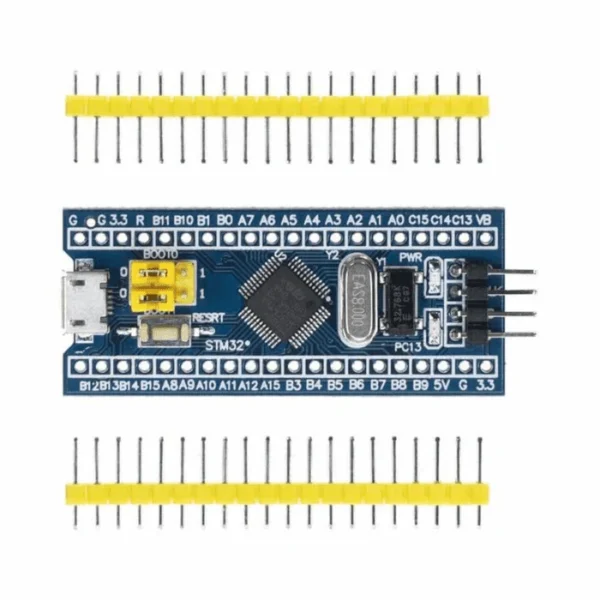

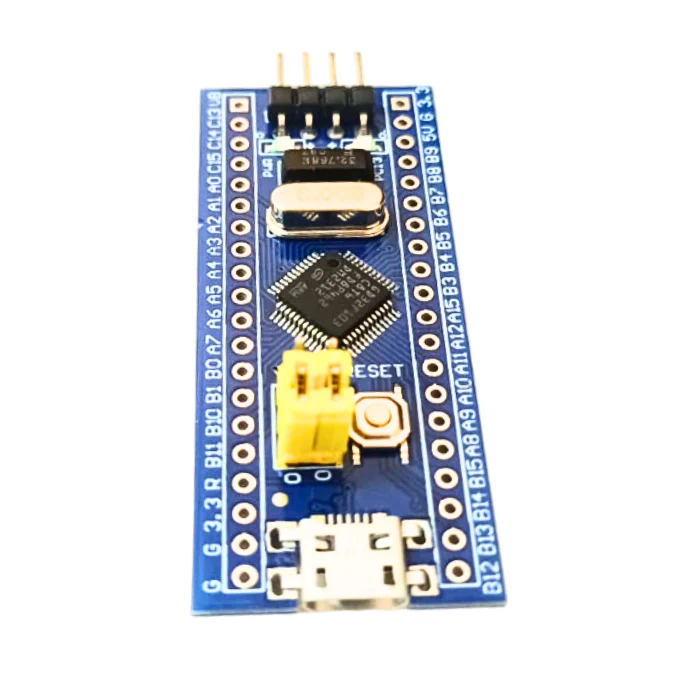

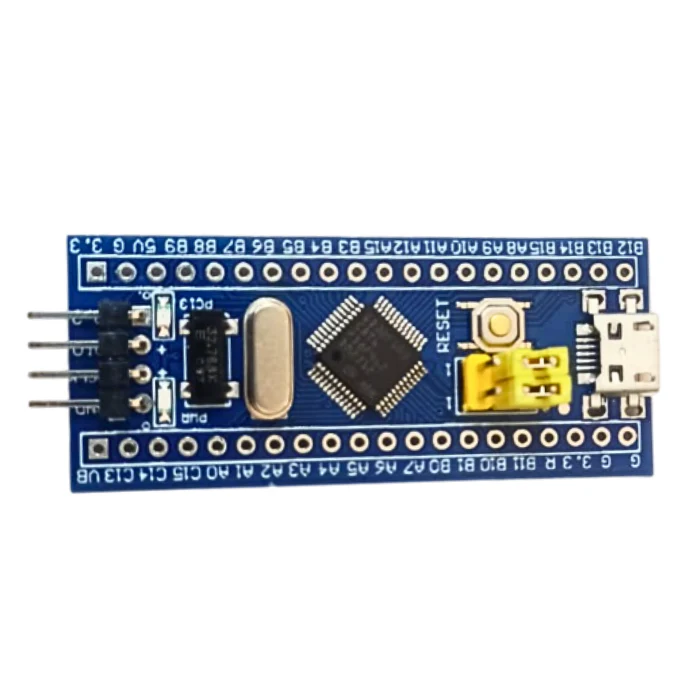

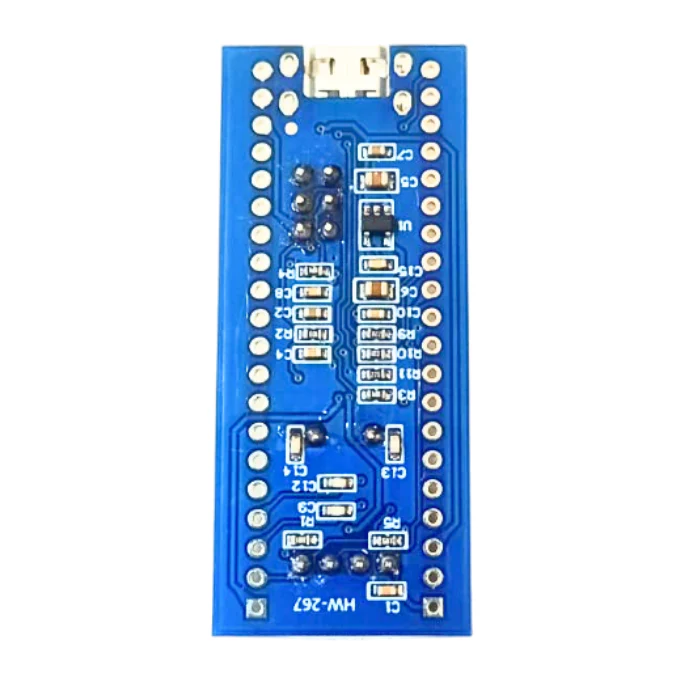

STM32 ARM Core Board GD32F103C8T6 Minimum System

STM32 ARM Core Board GD32F103C8T6 Minimum System is a compact, powerful, and cost-effective development platform built for engineers, hobbyists, and embedded system designers who need a reliable ARM Cortex-M3 microcontroller board for fast prototyping and production-level applications. Equipped with the GD32F103C8T6 MCU, this board offers exceptional processing capability, rich peripheral interfaces, and flexible connectivity options while maintaining full compatibility with the popular STM32 ecosystem.

Designed as a minimum system board, it provides all essential components required to run and debug the ARM Cortex-M3 microcontroller, making it perfect for developers looking to integrate high-performance computing into a wide range of embedded applications. Whether you are working on IoT devices, robotics, industrial automation, or electronic product design, this board offers the ideal balance of speed, features, and simplicity.

Key Specifications

• Microcontroller: GD32F103C8T6 (ARM Cortex-M3 core)

• Core Speed: Up to 108 MHz operating frequency

• Flash Memory: 64 KB

• SRAM: 20 KB

• I/O Pins: Up to 37 GPIO pins available

• Operating Voltage: 3.0V – 3.3V

• Clock Source: 8 MHz external crystal oscillator + 32.768 kHz RTC crystal

• Communication Interfaces:

  • USART

  • I2C

  • SPI

  • CAN

  • USB

• Timers: 4 advanced timers and multiple general-purpose timers

• Analog: 2 × 12-bit ADC (10 channels)

• Programming Interfaces: SWD (Serial Wire Debug) compatible with ST-Link

• Board Size: Compact minimum system design for easy integration

• Power Supply: Supports USB 5V or external 5V input

• Compatibility: STM32-based tools (Keil, STM32CubeIDE, PlatformIO)

Features

1. High-Performance ARM Cortex-M3 Processing

The GD32F103C8T6 delivers exceptional speed up to 108 MHz, making it suitable for real-time tasks, motor control applications, and computation-heavy embedded projects.

2. STM32 Ecosystem Compatibility

Fully compatible with STM32 libraries, development tools, IDEs, and examples. Developers can easily migrate existing STM32 projects to GD32 without code complexity.

3. Minimum System Design for Embedded Integration

Includes essential circuits such as reset, power regulation, crystals, and SWD interface. This ensures stable performance while keeping the board compact and easy to embed.

4. Rich Peripheral Set for Versatile Development

The board includes ADCs, timers, USB connectivity, CAN bus support, multiple communication interfaces, and PWM outputs—ideal for sensor interfacing, communication modules, and control systems.

5. Stable Crystal Oscillators

The 8 MHz and 32.768 kHz crystals ensure accurate system timing and real-time clock functionality—important for automation, measurement, and precision applications.

6. Easy to Program and Debug

Supports ST-Link and other SWD programmers, enabling smooth firmware uploading, debugging, and code testing.

7. Compact, Durable, and Cost-Effective

A highly affordable solution for students, educators, makers, and professional developers without compromising on performance or reliability.

Applications

IoT and Smart Devices

Perfect for building smart sensors, home automation systems, smart meters, and connected IoT devices requiring low power and fast communication.

Robotics and Mechatronics

Used in robotic arms, motor controllers, servo drivers, and autonomous vehicle systems due to its high-speed timers and PWM capabilities.

Industrial Control and Automation

Suitable for PLC-like control, industrial monitoring, relay control, and CAN-based industrial networks.

Wearable and Portable Electronics

Low power consumption makes it ideal for compact, battery-powered devices.

Educational and Research Projects

Great for embedded systems training, microcontroller courses, and academic prototyping.

Consumer Electronics Prototyping

Useful for designing custom controllers, display interfaces, and embedded gadgets.

The STM32 ARM Core Board GD32F103C8T6 Minimum System is a versatile, dependable, and high-performance platform that simplifies development while enabling advanced embedded capabilities. Whether you’re a beginner or a professional engineer, this board offers everything needed to build innovative, real-world electronic solutions.
