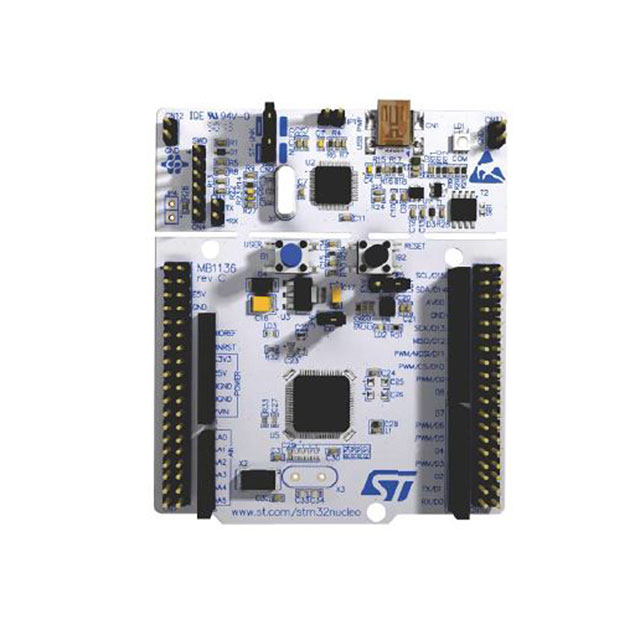

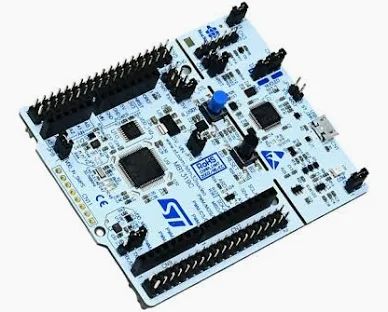

STM32 NUCLEO – L452RE Development Board is a powerful, energy-efficient microcontroller development platform based on the STM32L452RE ARM Cortex-M4 MCU from STMicroelectronics. Designed for rapid prototyping, embedded system development, IoT applications, and academic learning, this board offers exceptional performance combined with ultra-low power consumption.
With built-in ST-LINK debugger/programmer, Arduino™ and ST Morpho compatibility, and extensive peripheral support, the STM32 NUCLEO-L452RE is an ideal choice for students, researchers, hobbyists, and professional engineers working on modern embedded solutions.
Key Features of STM32 NUCLEO-L452RE Development Board
-
ARM Cortex-M4 Core with Floating Point Unit (FPU) for high-performance signal processing
-
Ultra-low power STM32L4 series MCU, ideal for battery-powered and IoT devices
-
Built-in ST-LINK/V2-1 debugger and programmer (no external debugger required)
-
Arduino™ Uno V3 compatible headers for easy shield integration
-
ST Morpho expansion connectors for access to all MCU I/O pins
-
On-board USB interface for power, programming, and debugging
-
Multiple power supply options: USB, external power, or battery
-
Comprehensive software support via STM32CubeIDE, STM32CubeMX, and HAL libraries
-
Compact and robust design, suitable for lab and industrial use
Technical Specifications
| Parameter | Description |
|---|---|
| MCU | STM32L452RE |
| Core | ARM Cortex-M4 with FPU |
| Clock Frequency | Up to 80 MHz |
| Flash Memory | 512 KB |
| SRAM | 160 KB |
| Operating Voltage | 1.71 V to 3.6 V |
| Power Consumption | Ultra-low power modes supported |
| GPIO Pins | Up to 51 |
| Communication Interfaces | UART, USART, I2C, SPI, CAN, USB |
| Analog Features | 12-bit ADC, DAC, comparators |
| Timers | General-purpose, advanced, low-power timers |
| Debug Interface | On-board ST-LINK/V2-1 |
| Expansion | Arduino Uno V3, ST Morpho headers |
| USB | Micro-USB for power and programming |
Performance and Power Efficiency
The STM32L452RE microcontroller is part of ST’s STM32L4 ultra-low power series, making this Nucleo board ideal for energy-constrained applications. It supports multiple low-power modes such as Sleep, Stop, and Standby, while still delivering up to 80 MHz processing speed.
The integrated Floating Point Unit (FPU) enables efficient execution of DSP, control algorithms, and sensor data processing, making it well-suited for real-time embedded applications.
Easy Development and Software Support
The STM32 NUCLEO-L452RE board is fully supported by STM32CubeIDE, an all-in-one development environment that includes code generation, compilation, debugging, and configuration tools. Developers can easily configure clocks, peripherals, and power modes using STM32CubeMX.
It also supports popular RTOS environments, middleware stacks, and open-source libraries, enabling faster development cycles and reduced time to market.
Applications of STM32 NUCLEO-L452RE Development Board
The STM32 NUCLEO-L452RE is widely used across academic, industrial, and commercial domains, including:
-
Embedded systems education and training
-
IoT and smart sensor nodes
-
Battery-powered wearable devices
-
Industrial automation and control systems
-
Data acquisition and monitoring systems
-
Motor control and robotics projects
-
Wireless sensor networks
-
Low-power medical and portable devices
-
Research and prototyping labs
Why Choose STM32 NUCLEO-L452RE?
-
Trusted STMicroelectronics quality and ecosystem
-
Ideal for learning ARM Cortex-M4 architecture
-
Excellent balance of performance and low power
-
Large community support and extensive documentation
-
Compatible with a wide range of Arduino and custom expansion boards
The STM32 NUCLEO-L452RE Development Board is a versatile, reliable, and cost-effective platform for developing next-generation embedded applications. Whether you are a student learning microcontrollers, an engineer prototyping IoT solutions, or a researcher building low-power systems, this board provides the tools and flexibility required to bring your ideas to life.
Upgrade your embedded development experience with the STM32 NUCLEO-L452RE – where performance meets efficiency.
Package Includes:
1 x STM32 NUCLEO-L452RE Development Board
FAQ
1. Where can we buy this STM32 NUCLEO – L452RE Development Board?
This product is available online https://aiiottech.in/product/stm32-nucleo-l452re-development-board/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103
2. When can I get this STM32 NUCLEO – L452RE Development Board after placing the order?
RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.
Video Link: Best STM32 Nucleo-64 Board NUCLEO-L452RE-P
