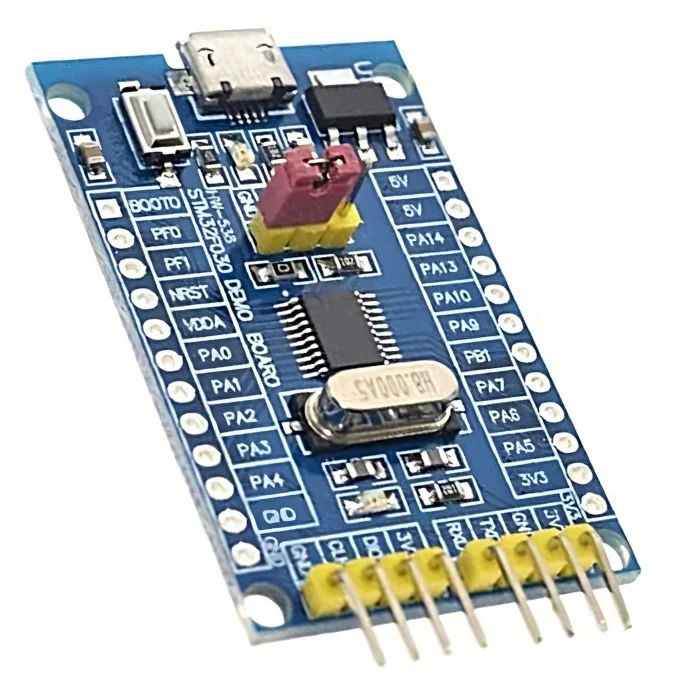

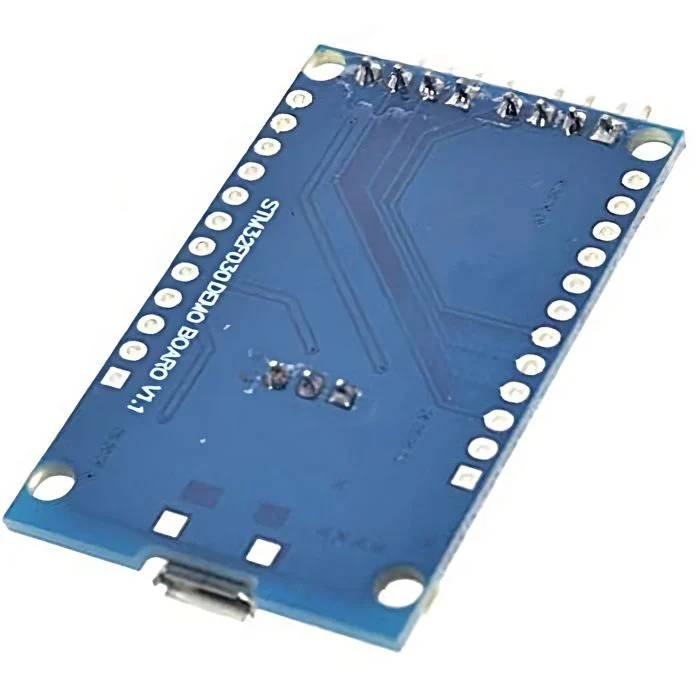

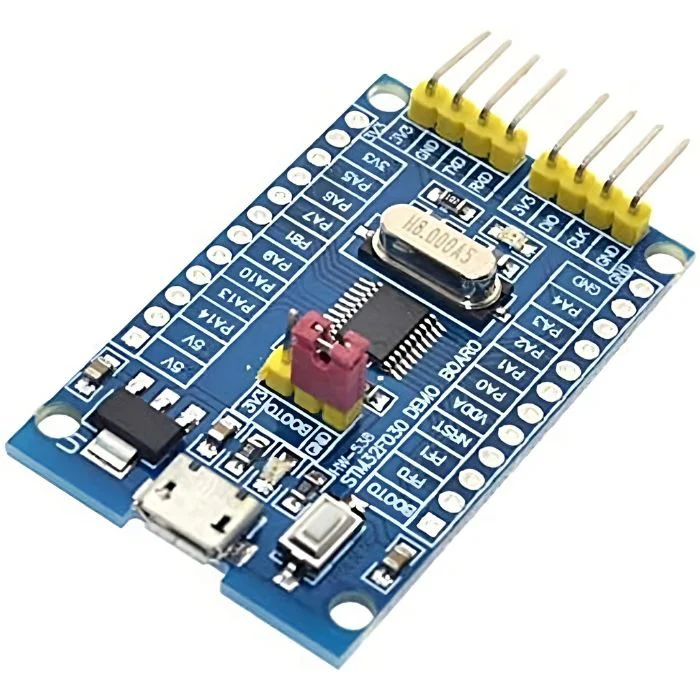

STM32F030F4P6 Development Board

STM32F030F4P6 Development Board is a compact, affordable, and powerful microcontroller platform built around the STM32F030F4P6, an ARM Cortex-M0-based MCU from STMicroelectronics. Designed for beginners, embedded engineers, hobbyists, and product developers, this board offers exceptional performance, rich connectivity, and user-friendly features—all in a small footprint. If you need a reliable development solution for low-power, real-time, and cost-sensitive applications, the STM32F030F4P6 board is the ideal choice.

Optimized for seamless prototyping, the board includes essential hardware components along with easily accessible GPIO pins, making it perfect for rapid development and integration into custom projects. Whether you are building automation systems, sensor-based applications, or educational projects, this development board ensures efficiency, flexibility, and high stability.

Key Specifications

• Microcontroller: STM32F030F4P6

• Core: ARM Cortex-M0, 32-bit RISC architecture

• Operating Frequency: Up to 48 MHz

• Flash Memory: 16 KB

• SRAM: 4 KB

• Operating Voltage: 3.3V

• Input Voltage Range (via External Supply): 3.3V–5V

• I/O Pins: Up to 15 GPIO pins

• Communication Interfaces:

  • 1× USART

  • 1× I2C

  • 1× SPI

• Timers: 5 (including advanced PWM support)

• ADC: 12-bit, 10-channel

• Reset & Boot Options: Bootloader support, external reset pin

• Package Type: TSSOP20 MCU mounting

• Dimensions: Compact and lightweight for easy project integration

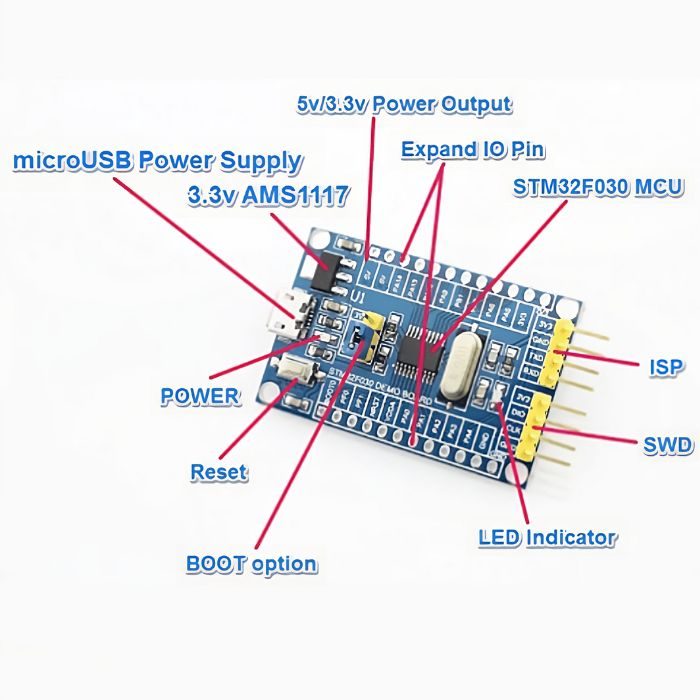

Top Features

1. High Performance in a Compact Size

Powered by a 48 MHz ARM Cortex-M0 core, this board delivers strong processing performance while maintaining low power consumption. It is ideal for real-time embedded tasks and energy-efficient systems.

2. Beginner-Friendly and Developer-Ready

The board features an intuitive pin layout and supports commonly used IDEs such as STM32CubeIDE, Keil uVision, and Arduino-compatible cores through STM32duino. This makes it easy for both beginners and professionals to get started instantly.

3. Rich Peripheral Connectivity

With built-in USART, SPI, I2C, ADC channels, timers, and multiple GPIOs, the board supports a wide range of sensors, modules, and communication interfaces. This versatility enables seamless connectivity for complex embedded designs.

4. Precision Analog Performance

The integrated 12-bit ADC ensures highly accurate analog readings, making it excellent for sensor-driven projects, battery monitoring, and industrial measurements.

5. PWM and Timer Support

Advanced timers and multiple PWM channels allow smooth motor control, LED dimming, servo operations, and signal generation.

6. Low-Power Operation

Designed for power-critical applications, the STM32F030F4P6 MCU offers excellent energy efficiency, making it ideal for battery-powered and wearable solutions.

7. Cost-Effective Solution

Despite its robust capabilities, the board remains budget-friendly, making it perfect for students, developers, and startups working on prototypes or commercial products.

Applications

1. Embedded System Development

Its powerful core and flexible peripherals make the board suitable for building advanced embedded systems, from simple controllers to intelligent automation platforms.

2. Internet of Things (IoT) Projects

The board can easily interface with wireless modules such as ESP8266, ESP32, LoRa, and BLE modules, making it ideal for IoT nodes, sensors, and gateways.

3. Robotics and Motor Control

With PWM-enabled timers and real-time processing, the board is perfect for controlling motors, servos, robotic arms, and autonomous systems.

4. Industrial Automation

The MCU’s reliability and precision allow it to be used in industrial control systems, signal monitoring, and process automation.

5. Sensor-Based Applications

With its high-resolution ADC and communication interfaces, the board supports temperature, pressure, gas, proximity, and other analog/digital sensors.

6. Educational and Research Projects

Compact and affordable, the board is widely used for embedded training, electronics courses, academic research, and prototype development.

The STM32F030F4P6 Development Board combines performance, efficiency, and cost-effectiveness, offering a powerful platform for engineers, students, and innovators. Its rich feature set and reliable STM32 architecture make it an excellent choice for a wide range of electronic and IoT applications. Whether you’re learning microcontroller programming or building a commercial prototype, this development board delivers outstanding versatility and value.
