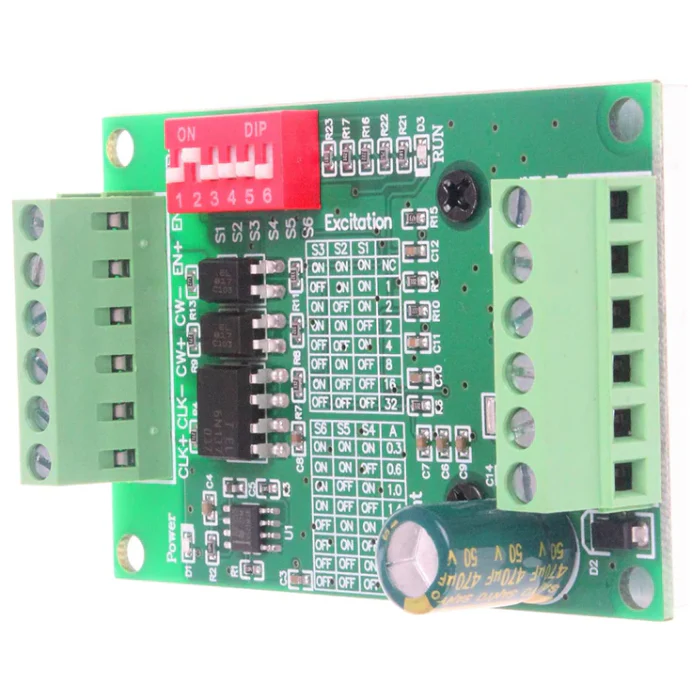

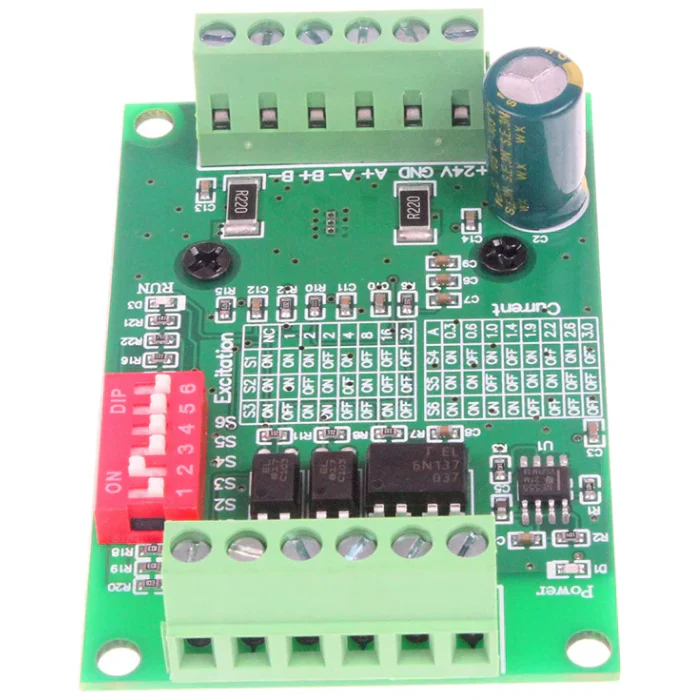

TB6560 Stepper Motor Driver Module

TB6560 Stepper Motor Driver Module is a reliable and cost-effective solution for driving bipolar stepper motors in CNC machines, automation systems, and precision motion control applications. Built around the robust Toshiba TB6560AHQ driver IC, this module is widely used in CNC routers, engraving machines, 3D printers, robotics, and industrial automation equipment due to its stable performance, protection features, and ease of integration.

Designed to handle higher current stepper motors efficiently, the TB6560 driver module offers adjustable current control, selectable microstepping, and opto-isolated inputs, ensuring smooth motor operation, improved torque output, and reduced vibration. Its compact design and standard interface make it an ideal choice for both professional industrial use and DIY CNC projects.

Key Features of TB6560 Stepper Motor Driver Module

• High Current Output Capability
  Supports stepper motors up to 3.0–3.5A peak current, making it suitable for NEMA 17 and NEMA 23 stepper motors.

• Selectable Microstepping Modes
  Offers multiple step resolutions (full step, half step, and microstepping) to achieve smoother motion and improved positioning accuracy.

• Opto-Isolated Control Inputs
  STEP, DIR, and ENABLE signals are opto-isolated, providing strong noise immunity and protecting control electronics.

• Automatic Current Decay Control
  Enhances motor efficiency and reduces heat generation during operation.

• Over-Current and Thermal Protection
  Built-in protection safeguards the driver and motor against overheating, overload, and short-circuit conditions.

• Wide Operating Voltage Range
  Operates with DC power supplies from 10V to 35V, offering flexibility across various power setups.

• Compact and Durable Design
  PCB-mounted module with onboard heat sink for effective thermal management and long-term reliability.

Technical Specifications – TB6560 Stepper Motor Driver Module

• Driver IC: Toshiba TB6560AHQ

• Motor Type: Bipolar Stepper Motor

• Number of Phases: 2-phase

• Input Voltage: DC 10V – 35V

• Output Current: Up to 3.5A peak (approx. 3.0A continuous)

• Microstepping Options: Full step, 1/2, 1/8, 1/16 (varies by board configuration)

• Control Signals: STEP, DIR, ENABLE

• Input Signal Type: Opto-isolated TTL/CMOS compatible

• Cooling: Passive heat sink (external fan recommended for high current)

• Operating Temperature: –10°C to +45°C

• Mounting Type: Panel / DIN rail (model dependent)

Note: Specifications may vary slightly depending on the manufacturer or PCB version.

Applications of TB6560 Stepper Motor Driver Module

The TB6560 stepper motor driver module is widely used in applications requiring precise control of motor speed, direction, and position. Typical use cases include:

• CNC Machines and Routers
  Commonly used in CNC milling machines, engraving machines, plasma cutters, and PCB drilling systems.

• 3D Printers and Fabrication Equipment
  Ensures accurate axis movement and smoother prints with reduced step loss.

• Robotics and Mechatronics Projects
  Ideal for robotic arms, linear actuators, and automated positioning systems.

• Industrial Automation Systems
  Used in conveyor belts, labeling machines, and automated production equipment.

• Laser Engraving and Cutting Machines
  Provides stable motor control for precise laser movement.

• DIY CNC and Educational Projects
  Popular among hobbyists, students, and research institutions for motion control learning and prototyping.

Why Choose the TB6560 Stepper Motor Driver Module?

The TB6560 stepper motor driver module delivers an excellent balance of performance, reliability, and affordability. With its adjustable current settings, opto-isolated inputs, and protection features, it ensures smooth and safe motor operation even in electrically noisy environments. Its compatibility with commonly used CNC controllers such as Mach3, Arduino, GRBL, and PLC systems makes it a versatile choice for a wide range of applications.

Whether you are upgrading an existing CNC setup or building a new automation system, the TB6560 Stepper Motor Driver Module provides dependable performance and precise motion control at a competitive price.

Package Includes:

1 x TB6560 Stepper Motor Driver Module

FAQ

1. Where can we buy this TB6560 Stepper Motor Driver Module?

This product is available online at https://aiiottech.in/product/tb6560-stepper-motor-driver-module/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this TB6560 Stepper Motor Driver Module after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: TB6560 Stepper Motor Controller: Review and Impressions
