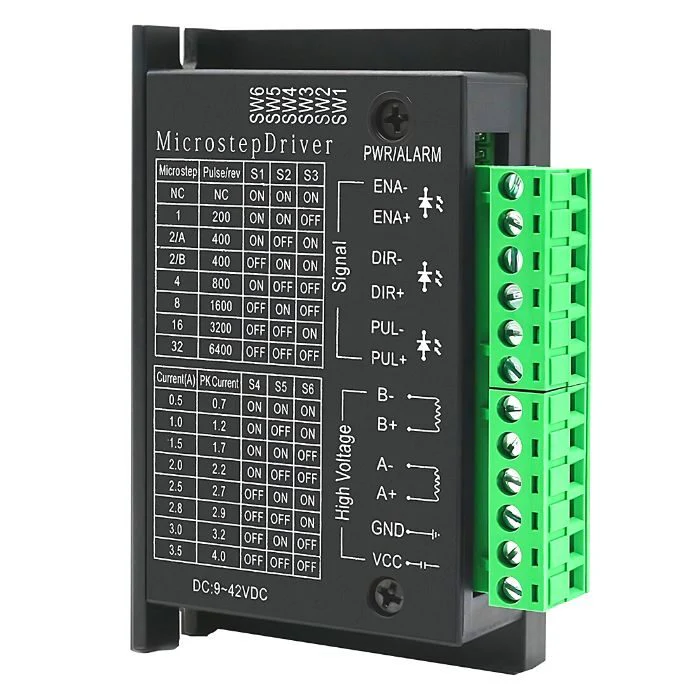

TB6600 4A 40V Stepper Motor Driver

TB6600 4A 40V Stepper Motor Driver is a robust and reliable microstepping driver designed to deliver smooth, precise, and high-torque motion control for stepper motors. Built around the original Toshiba TB6600HG chipset, this driver is widely used in CNC machines, 3D printers, robotics, and industrial automation systems where accuracy, efficiency, and durability are essential.

Engineered to support high current and voltage ratings, the TB6600 driver can efficiently drive NEMA 17 and NEMA 23 stepper motors, making it an ideal choice for both DIY projects and professional motion control applications. Its compact, enclosed metal housing provides excellent heat dissipation and protection against electrical interference, ensuring stable long-term operation even in demanding environments.

Key Features of TB6600 4A 40V Stepper Motor Driver

• High Output Current up to 4A
  Capable of delivering up to 4.0A peak current, enabling stepper motors to achieve higher torque and better performance under load.

• Wide Operating Voltage Range
  Supports 9–40V DC input, allowing flexible power supply selection for various applications.

• Advanced Microstepping Control
  Offers multiple microstep resolutions including 1, 2, 4, 8, 16, and 32 microsteps, ensuring smooth motor rotation, reduced vibration, and improved positional accuracy.

• Optically Isolated Inputs
  STEP, DIR, and ENABLE signals are opto-isolated, enhancing noise immunity and protecting control electronics such as microcontrollers and CNC boards.

• Built-in Protection Circuits
  Includes over-current, over-voltage, under-voltage, and thermal shutdown protection for safe and reliable operation.

• Efficient Heat Dissipation

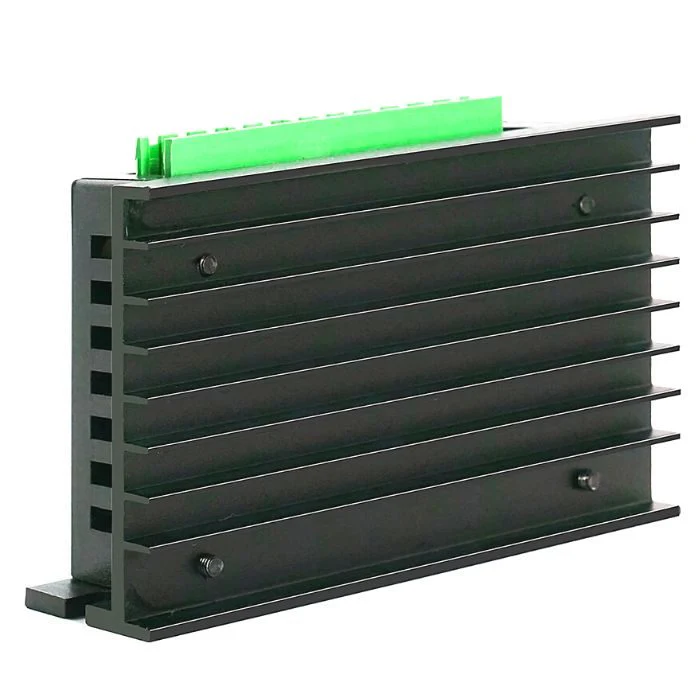

  Sturdy aluminum housing acts as a heat sink, reducing thermal stress and improving driver lifespan.

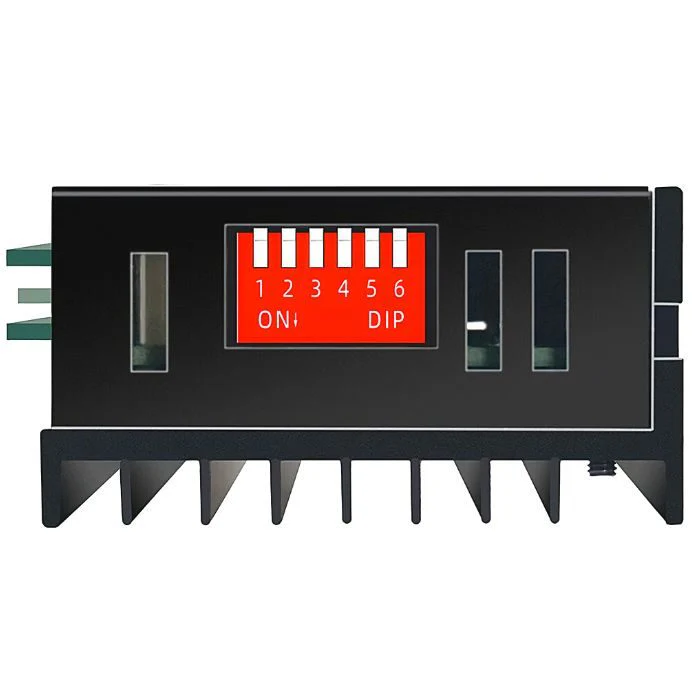

• Easy Configuration via DIP Switches
  Onboard DIP switches allow quick adjustment of current limits and microstepping modes.

• Wide Controller Compatibility
  Fully compatible with Arduino, Raspberry Pi, Mach3, GRBL, PLCs, and CNC breakout boards.

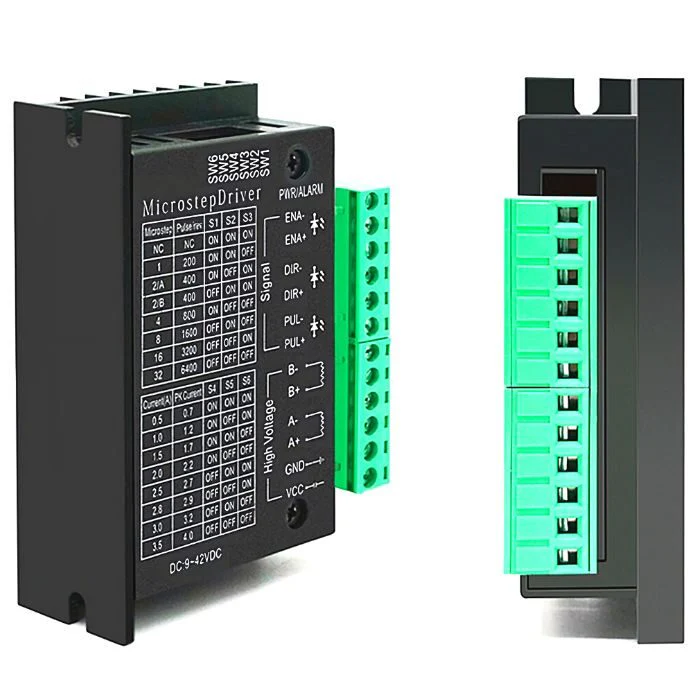

Technical Specifications – TB6600 Stepper Motor Driver

• Driver Model: TB6600

• Chipset: Toshiba TB6600HG

• Motor Type: 2-phase bipolar stepper motors

• Maximum Output Current: 4.0A (peak)

• Input Voltage Range: 9–40V DC

• Microstepping Modes: Full, 1/2, 1/4, 1/8, 1/16, 1/32

• Control Signals: STEP, DIR, ENABLE (optically isolated)

• Logic Signal Voltage: 3.3V–24V compatible

• Cooling Method: Passive cooling (aluminum enclosure)

• Protection: Over-current, over-temperature, short-circuit

• Operating Temperature: –10°C to +45°C

• Mounting Type: Panel mount

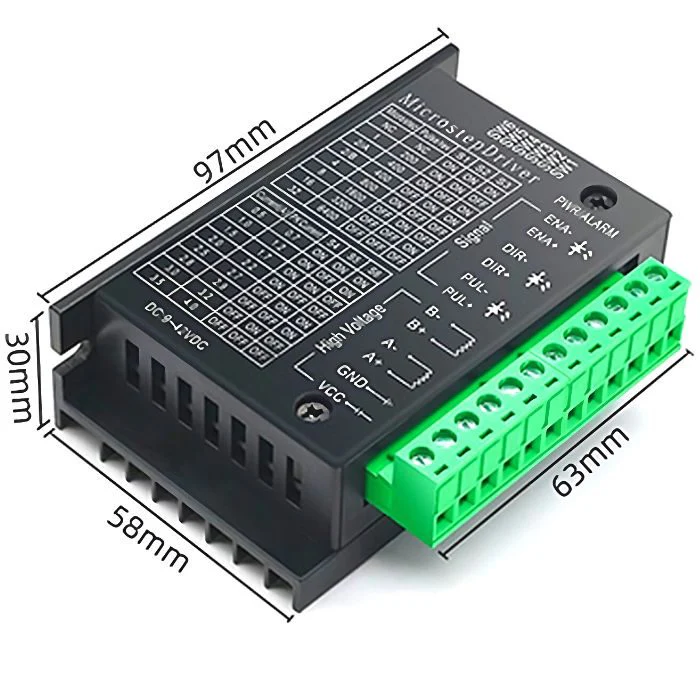

• Dimensions: Approx. 96 × 71 × 37 mm

Specifications may vary slightly depending on manufacturer.

Applications of TB6600 4A 40V Stepper Motor Driver

The TB6600 stepper motor driver is trusted across a wide range of motion control applications due to its reliability, power handling, and smooth operation:

• CNC Machines & CNC Routers
  Commonly used to drive X, Y, and Z axis stepper motors in CNC milling, engraving, and cutting machines.

• 3D Printers
  Provides stable and precise motor control for smoother prints and reduced layer shifting.

• Robotics & Mechatronics
  Ideal for robotic arms, automated sliders, and positioning systems requiring accurate step control.

• Industrial Automation
  Suitable for conveyor systems, packaging machines, labeling equipment, and automated assembly lines.

• Laser Engraving & Cutting Machines
  Ensures accurate motion and consistent speed for clean engraving and cutting results.

• DIY & Educational Projects
  Widely used by hobbyists, makers, and students for prototyping and learning CNC and motion control concepts.

Why Choose the TB6600 4A 40V Stepper Motor Driver?

The TB6600 stepper driver stands out for its high current capacity, flexible voltage support, excellent microstepping performance, and robust protection features. Its proven reliability and ease of use make it a preferred choice for professionals and enthusiasts alike. Whether you are upgrading a CNC system or building a new automation project, this driver delivers consistent, efficient, and precise motor control.

Enhance your motion control system with the TB6600 4A 40V Stepper Motor Driver and experience superior performance, smooth operation, and long-term reliability.

Package Includes:

1 x TB6600 4A 40V Stepper Motor Driver

FAQ

1. Where can we buy this TB6600 4A 40V Stepper Motor Driver?

This product is available online at https://aiiottech.in/product/tb6600-4a-40v-stepper-motor-driver/ and also available at our store in Pudupakkam/Kelambakkam, Chennai-603103

2. When can I get this TB6600 4A 40V Stepper Motor Driver after placing the order?

RGRJ AIIoT TECHNOLOGIES will immediately ship and deliver the product within 1-3 working days.

Video Link: TB6600 Stepper Driver + Arduino + NEMA Motor Wiring and Control
